    HOWO 15 Tons Mobile LPG Gas Tanker Truck For Gas Cylinder Refilling

    Ask Lasest Price
    Brand Name : CLW
    Model Number : CLW5079GYE
    Certification : ASME,CCC,BV,SGS
    Price : negotiable
    Payment Terms : D/A, L/C, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 500 units/month
    Delivery Time : 30 days after receiving deposit
    • Product Details
    • Company Profile

    HOWO 15 Tons Mobile LPG Gas Tanker Truck For Gas Cylinder Refilling

    HOWO 15tons Gas Refilling Truck Cylinder Dispenser truck Mobile Tanker Truck


    Product Description

    1. Storage medium of LPG bobtail truck : LPG, Liquid ammoina,Dimethyl ether,Iso-butane,Pentane and etc.
    2. Truck Brand of LPG Gas Bobtail : Howo,optional for dongfeng,faw,isuzu,foton and other brands
    3. Available tank capacity of LPG bobtail truck: 5m³, 5.5m³, 8m³, 10m³, 12m³, 15m³, 16m³, 18m³, 20m³, 24m³, 25m³.
    4. Function of LPG Gas Bobtail : mobile Propane or Butan Gas Delivery/ Refilling/bottling/filling
    5. Manufacturing standards of LPG bobtail truck: GB-150, ASME VIII Division I U STAMP, CCC, ISO9001 : 2008
    6. Refiling System of LPG Gas Bobtail: 2" Flowmeter or intelligent filling dispenser machine,2" Corken or Chinese brand Pump,15meters Filling Hose Reel

    Specification


    Item No.Parameters
    Overall Dimension11800x2490x3690mm
    Driving ModelLeft hand drive or right hand drive
    Gross Vehicle Weight31000 kg
    Curb Weight14900 kg
    Payload16000 kg
    Front Axle Loading9000*2 kg
    Rear Axle Loading12000*2 kg
    Wheel Base1800+4650+1300 mm
    Front/rear Tread1886/1845 mm
    Approach/Departure Angle27/20 degree
    EngineWD615.47
    Engine horsepower371 HP EUROIII
    Displacement9760mL (Diesel)
    Max Driving Speed90 km/h
    Gear Box10 forward& 2 reverse
    Cabin2~3 Passenger allowed,with A/C
    Tire12.00R20 (12 pc with 1 spare)
    LPG tank
    Volume:30cbm
    Tank material:Q345R
    Tank diameter:2300mm
    Tank thickness:10mm
    End plate12mm
    Tank length:As designed
    Gas phaseDN50
    Liquid PhaseDN50 or DN80 for option
    Filling gasPropane(LPG)
    Design Pressure:1.61Mpa
    Accessory
    Level GaugeManual rotation type,at the rear of tank
    Safety Valve1,DN80
    Tool and Valve Box1
    LPG pump1
    LPG Volume Flow Meter1
    Filling Hose15 meters
    Filling Nozzle1pc
    Thermometer1
    Pressure Gauge1
    Emergency Valve1
    FenderSteel
    Fire Extinguisher holder2
    Exhaust shaftAt the front of truck for safety

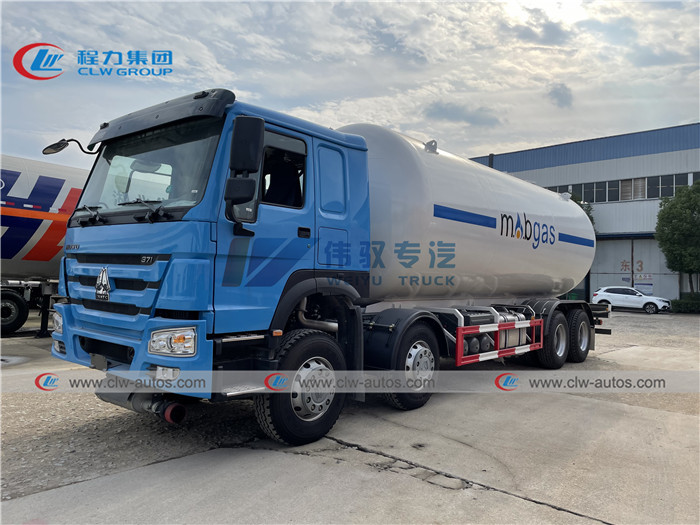

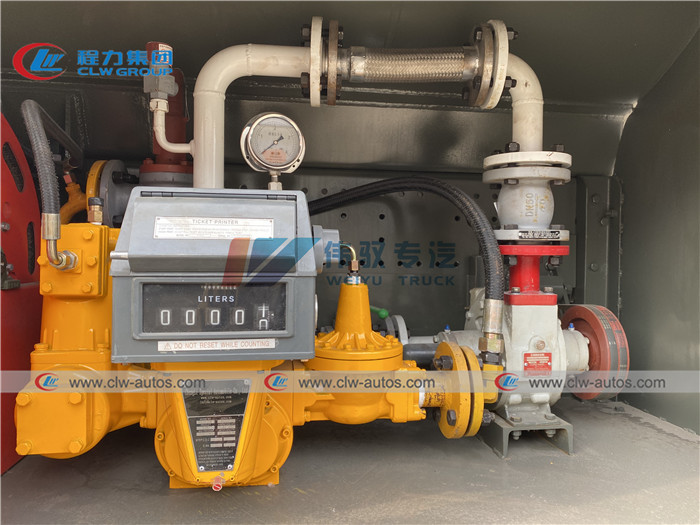

    Reference Picture

    HOWO 15 Tons Mobile LPG Gas Tanker Truck For Gas Cylinder RefillingHOWO 15 Tons Mobile LPG Gas Tanker Truck For Gas Cylinder RefillingHOWO 15 Tons Mobile LPG Gas Tanker Truck For Gas Cylinder Refilling

    Our Service

    • Quick feedback to solve your questions

    • Professional engineering and production team

    • Related Accessories and spare parts offered,no future worries

    • Regular customer after-sale visiting

    • Free technical staff training and guidance

    • Reasonable price and good quality

    • Quick delivery and shipment


    FAQ


    Q1: What kinds of LPG products I can order from your company?


    A: We specialize in producing 5CBM to 200CBM LPG above ground storage tanker, 5CBM to 120CBM LPG underground storage tank, 5CBM to 38.5CBM LPG tank truck, 5CBM to 25.5CBM LPG dispenser truck/LPG bobtail truck, 40CBM to 61.9CBM LPG semi trailer and 5CBM to 50CBM LPG Skid Station/LPG mobile filling station etc. Please feel free to contact us for details.


    Q2: What is your production standard of LPG products? Can you manufacture your products under ASME standard?


    A: Usually our LPG products adopts GB-150/China standard, there ASME standard for optional. Yes, we can do ASME standard and our ASME standard as per DIV 01 SEC VIII.


    Q3: Have you supplied LPG products to any renowned companies?


    A: Our group company is a regular strategic partner of some big gas companies. We have supplied many storage tanks and semi trailer for them with different sizes,such as ENOC,AARANO,NIPCO,LAKEGAS...The biggest size tank we ever provided is 200m3 LPG storage tanks,.


    Q4: What about warranty?


    A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.


    Q5: Where is your factory? How far from Shanghai to your factory?


    A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
