ISUZU 4x2 5cbm Sewage Vacuum Truck With Q235A Tank

    Buy cheap ISUZU 4x2 5cbm Sewage Vacuum Truck With Q235A Tank from wholesalers

    Buy cheap ISUZU 4x2 5cbm Sewage Vacuum Truck With Q235A Tank from wholesalers
    • Buy cheap ISUZU 4x2 5cbm Sewage Vacuum Truck With Q235A Tank from wholesalers
    • Buy cheap ISUZU 4x2 5cbm Sewage Vacuum Truck With Q235A Tank from wholesalers
    • Buy cheap ISUZU 4x2 5cbm Sewage Vacuum Truck With Q235A Tank from wholesalers
    • Buy cheap ISUZU 4x2 5cbm Sewage Vacuum Truck With Q235A Tank from wholesalers
    • Buy cheap ISUZU 4x2 5cbm Sewage Vacuum Truck With Q235A Tank from wholesalers
    • Buy cheap ISUZU 4x2 5cbm Sewage Vacuum Truck With Q235A Tank from wholesalers

    ISUZU 4x2 5cbm Sewage Vacuum Truck With Q235A Tank

    Ask Lasest Price
    Brand Name : CLW
    Model Number : CLW5064
    Certification : CCC,ISO,BV,SGS
    Price : negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 300 units per month
    Delivery Time : 30-35days after received advance payments
    • Product Details
    • Company Profile

    ISUZU 4x2 5cbm Sewage Vacuum Truck With Q235A Tank

    UZU 5cbm Sewage Vacuum Truck 5tons Sewer Cleaning Truck


    Product Description


    1. Purpose: It used for city and factory sewer cleaning, it's one of our sanitation truck series. Our mission is assist urban sanitation project and make world cleaning!

    2. Main parts: Water pump and High pressure water cleaning nozzles tc.

    3. Features: It can adopts high pressure water for flushing sewer.

    4.5000 liters sewage vacuum suction truck with 2000 liters high pressure water tank(1000 liters by eash side)


    Vehicle Description
    Overall dimensions5995*2250*3250 mm
    Curb Weight5400kg
    Chassis brandISUZU
    Traction type4*2
    Tanker Description
    TankerCapacity5000L
    Material6mm thickness, high quality carbon steel
    StructureWelding, vacuum tank, Cylindrical
    PumpTypeDouble vacuum pump
    Flux68(L/S)
    Rating speed800~1000(r/min)
    Shaft power5(kw)
    FeaturesLow speed, low fuel consumption, low noise, high vacuum, high efficiency
    ManufactureHangzhou WEILONG Pump Co., Ltd.
    PipeSuction and discharge pipe
    Special functionSuction time ≤ 5mins,
    effective suction range ≥ 8,
    Max vacuum degree ≤ 15 Kpa,
    dump angle ≥ 45
    Standard configurationEquipped with Inspect window,discharge valve,cleaning apparatus,5 meter long suction pipe,oil-water separators, overflow valve,etc.
    Cylinder vacuum tank can be lifted hydraulically to
    40-45 degree. Rear door can be opened and closed hydraulically.
    Optional configurationTanker material: stainless steel.
    Vacuum pump : Italy or Spain vacuum pumps.
    Anti-rust coating inside tank
    Chassis Description
    Chassis modelISUZU
    CabSleeper cab, forward control type, low roof, new face, all welded steel cab of tilt type, mechanical cab tilting, rear mechanical cab suspension, adjustable driver's seat, air conditioning system, electric windows, central lock.
    Traction typeLHD or RHD
    Drive type4*2
    Wheelbase3360mm
    Tire specification8.25-16
    Tire quantity6+1 units
    EngineEmission levelEuro 1/2/3/4
    Displacement/output2771ml
    Horse power95hp
    Gear boxModelChina famous brand
    Number of gears5 forward gears& 1 reverse, synchronized
    Brake systemFull air brake system, split pneumatic circuit; parking spring brake acting on rear axles, exhaust brake
    AxleFront2.5T
    Rear4T

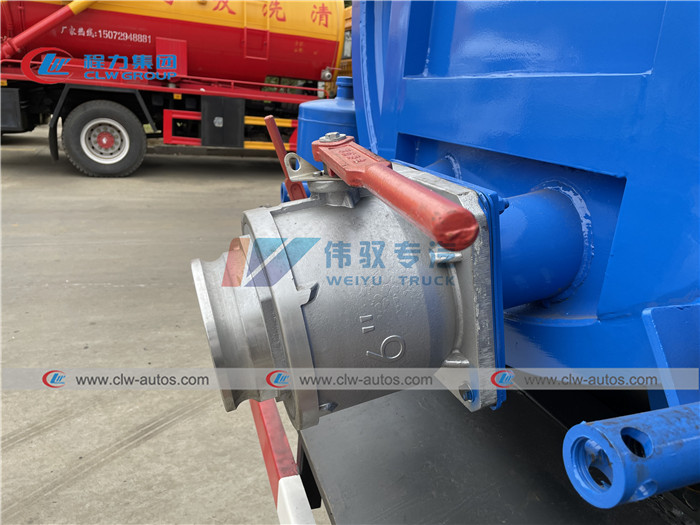

    Truck details:
    ISUZU 4x2 5cbm Sewage Vacuum Truck With Q235A TankISUZU 4x2 5cbm Sewage Vacuum Truck With Q235A TankIS
    Accessories


    Working Process



    Sales Service


    1. Professional engineer team with more than 20 years experience, technical support whenever needed.

    2. Our team will take operation videos to show you how to use the truck step by step, it will be very easy for first learners.

    3. Live video guidance about usage and maintenance.

    4. Life long service whenever needed


    FAQ


    Q1: What size Sewage Suction tank we can get from your company?

    A: we can supply 5CBM to 35CBM sewer cleaning truck as per our customer's request. Pls contact with us for more technical details discussion.


    Q2: What is your production standard of Mobile Advertisement Truck products? Whether your Mobile Advertisement Truck can export to USA, Canada and Europen countries?

    A: Our CBU Sewer cleaning truck is produced as per China GB local standard; We can export super structure to those market, we ever exported 50 units sewage suction truck's super structure and 20 units sewage suction sewage trailer to Australia market in the past two years.


    Q3: Can we adopts International brand sewage pump for sewage suction truck?

    A: Sure, we already cooperated with Italy Jourp and a Germany brand.


    Q4: What about warranty?
    A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.


    Q5: Where is your factory? How far from Shanghai to your factory?
    A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
