    Shacman F3000 Intelligent 10000 Liters Asphalt Bitumen Distributor Truck

    Ask Lasest Price
    Brand Name : CLW
    Model Number : CLW5160LQSBC
    Certification : CCC BV SGS
    Price : negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 500 Units/Month
    Delivery Time : 30 days after receiving deposit
    • Product Details
    • Company Profile

    Shacman F3000 Intelligent 10000 Liters Asphalt Bitumen Distributor Truck

    Shacman F3000 Intelligent Asphalt Bitumen Distributor Truck 10000liters


    Asphalt distributor truck is equipped with a heat preservation tanker, asphalt pump, heater and spraying system, used for spraying asphalt;It can also be defined as a kind of spraying hot asphalt, emulsified asphalt, residue and other liquid asphalt pavement construction machinery; It can be widely used in highway, city road, airport, port wharf and reservoir pavement construction;Large capacity asphalt distributor can also be used as asphalt delivery vehicles, mainly used for asphalt penetration method surface treatment, penetration layer, sticky layer, mixing in situ, asphalt stabilized soil and other construction and maintenance projects.


    1) Spraying asphalt and bitument:heated asphalt,hot modified asphalt,cutback asphalt,emulsified asphalt

    2) System of 10tons bitumen distributor truck

    • manual/automatic control of spraying volume and working width,control of single spraying nozzle
    • control in cabin or rear working platform
    • automatic controling system of measuring driving speed and adjust pump rotation number after input asphalt kind and spraying width.
    • Heating system(10~15℃/h) to improve heating efficiency

    3) Imported brand of key parts such as hudraulic pump,hudraulic motor,asphalt pump,Proportional Valve,automatic control system

    4) Italy burner for automatic fire and temperature control


    Specifications of 10Tons Bitumen Distributor Truck


    Item No.Parameters
    Chassis
    Overall Dimension8850x2500x3450mm
    Gross Vehicle Weight16000 kg
    Curb Weight10000 kg
    Loading Weight12000Kg
    Wheel Base4600 mm
    Front/rear Tread1500/2277 mm
    Approach/Departure Angle23/15 degree
    Front Axle7000kg
    Rear Axle13000kg
    Engine

    WD615.62,Weichai Diesel Engine,

    watering cooling, four stroke, 6 cylinder in line

    Engine horsepower266HP EURO II
    Displacement9.726L (Diesel)
    Max Driving Speed90 km/h
    CabinHW76,2~3 Passenger allowed, Right Hand Driving, with Air Conditioner
    Tire12R22.5 (10 pieces+1piece spare tire)
    Asphalt Tank10cbm
    Outside Material1.2mm Stainless plate
    Insulation layer40mm rock wool insulation layer,≤20℃/8h
    Asphalt pumpQGB950,950L/min
    Hydraulic System
    Hydraulic pumpCBQ550-L
    Driving Motor05-130-BD31(NING BO TILORMS)
    Proportional ValveEFBG-03-160-HF/Taiwan brand
    Shuttle ValveShanxi Yuci brand
    Overflow ValveShanxi Yuci brand
    Control System
    Control SystemCLW-32-01/Germany STW
    Control MethodComputer control
    Smart asphalt nozzle36 pcs intelligent nozzles
    Temperature sensor2 pcs from Zhejiang China
    Speed sensor2 pcs from Germany
    Heating System
    Heating methodAutomatic heating by oil
    BurnerG20/Italy brand
    RadiatorRISEN brand
    Heat transfer oil pump40-25-160(Hebei province,China)
    Gasoline EngineLUTIAN brand,6kw
    Spreading Width6m
    Spreading Speed0.3~3.5L/min
    Spreading Precision±2%

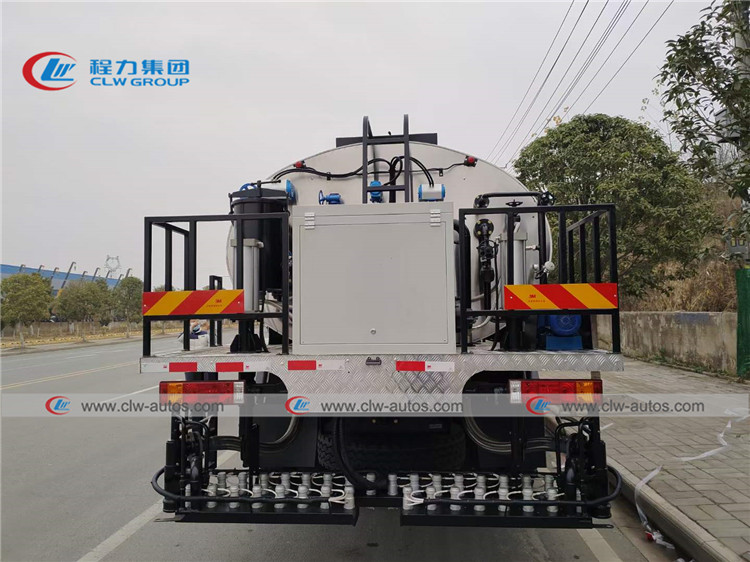

    Reference Pictures of shacman F3000 10Tons asphalt Distributor Truck


    Shacman F3000 Intelligent 10000 Liters Asphalt Bitumen Distributor TruckShacman F3000 Intelligent 10000 Liters Asphalt Bitumen Distributor TruckShacman F3000 Intelligent 10000 Liters Asphalt Bitumen Distributor TruckShacman F3000 Intelligent 10000 Liters Asphalt Bitumen Distributor Truck


    Key parts of 10Tons Bitumen Distributor Truck



    Our Service

    • Quick feedback to solve your questions

    • Professional engineering and production team

    • Related Accessories and spare parts offered,no future worries

    • Regular customer after-sale visiting

    • Free technical staff training and guidance

    • Reasonable price and good quality

    • Quick delivery and shipment



    FAQ


    Q1: What kinds of 10Tons Bitumen Distributor Truck I can order from your company?

    A: We can supply various sizes of 10Tons Bitumen Distributor Truck such as 2ton,3ton,4ton,5ton,6ton to 25ton, if you need larger size, there are 2 axles and 3 axles semil trailer for optional.


    Q2: What is your production standard of 10Tons Bitumen Distributor Truck ? Whether your 10Tons Bitumen Distributor Truck or trailers export to USA, Canada and Europen countries?

    A: Our 10Tons Bitumen Distributor Truck is produced as per China GB local standard; We can export super structure to those market, we ever exported 10Tons Bitumen Distributor Truck super structure to Europen countries before.


    Q3: What about warranty?
    A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.


    Q4: Where is your factory? How far from Shanghai to your factory?
    A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
