    5000 Liters Foton Forland 4x2 LHD Vacuum Fecal Suction Truck

    5000Liters 5cbm 5tons Foton Forland 4x2 Small Fecal Suction Truck Sewage Vacuum Suction Truck Septic Tank Truck


    Description:

    A Fecal Suction Truck is a tank truck with a heavy duty vacuum designed to pneumatically load fecal, solids, liquids, sludge, crude oil or slurry through suction lines in diameter with 3" being the norm. We provide various sizes of fecal suction trucks with capacities ranging from 3cbm to 18cbm.

    Specifications:
    The Parameters of 5M3 Forland small Fecal Suction Truck
    Overview
    NameFoton Forland small Fecal Suction Truck
    Dimension(LxWxH)5995X2075X2470(mm)
    Total Mass7865 Kg
    Rated Payload5000 Kg
    Kerb Weight3865 Kg
    Passenger2
    Approach/Departure Angle33/24
    The Parameters of Chassis
    Manufacture/ModelForland
    Driving Type4*2 left hand drive
    Wheel base3300 mm
    GearboxSix speed lever with five speed forward and one reverse, manual
    Front/Rear Track1260/1260(mm)
    Tyre7.00R16
    The Number of Tyre6+1(spare tyre)
    Front/Rear Suspension1295/1450(mm)
    Leaf Spring Number7/7
    The Paremeters of Engine
    Manufacturer/ModelQuanchai
    Rated Power115hp
    Fuel TypeDiesel oil
    Displacement/Capacity3809ml
    Emission StandardEuro 6
    CylinderStraight/4/intercooling
    Max. torque240N.m
    Velocity3200rpm
    The Parameters of Equipment
    Tank Capacity5M3 / 5000Liters
    Vacuum Pump Rotation Speed800r/m-1400r/m
    Max. Suction Lift>7m
    Vacuum>500mmHg
    Rotation DirectionClockwise
    Length of Pipe8m
    Time for full suction<5min
    Basic EquipmentVacuum pump, ball valve, 8 meter pipe, pressure meter, window for showing liquid level, cleaning system, hoist base, water and oil separator, anti-leaking valve, etc.
    Optional EquipmentSprinkler, alarm for full suction, double pump, crane, scissor lift, etc.

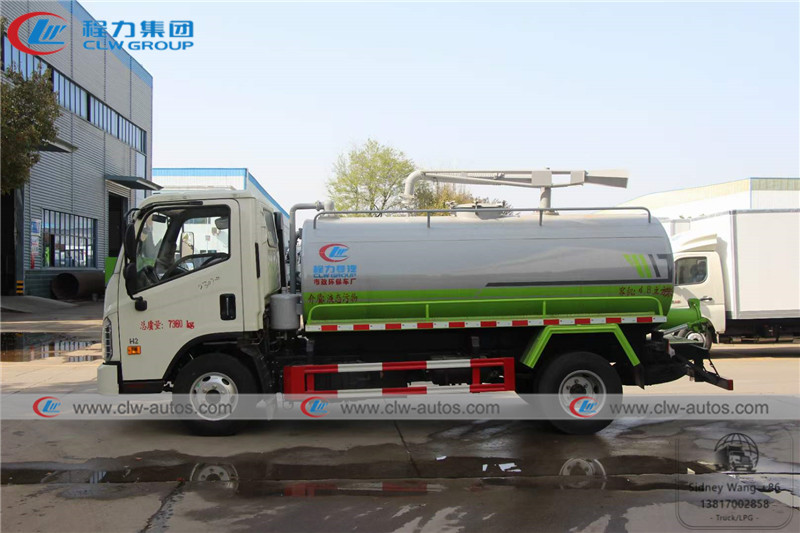

    Reference Photos
    5000 Liters Foton Forland 4x2 LHD Vacuum Fecal Suction Truck5000 Liters Foton Forland 4x2 LHD Vacuum Fecal Suction Truck5000 Liters Foton Forland 4x2 LHD Vacuum Fecal Suction Truck
    5000 Liters Foton Forland 4x2 LHD Vacuum Fecal Suction Truck

    Main Structure


    Working Scene

    Factory overview


    Delivery and Shipment

    Sales Service

    ① Pre-sales Service: Communicate with customers, analyze their needs.
    ② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
    ③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.



    FAQ

    Q1: What size Fecal Suction tank we can get from your company?

    A: we can supply 2CBM to 18CBM sewer cleaning truck as per our customer's request. Pls contact with us for more technical details discussion.

    Q2: Can we adopts International brand sewage pump for sewage suction truck?
    A: Sure, we already cooperated with Italy Jourp and a Germany brand.

    Q3: What about warranty?
    A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.


    Q4: Where is your factory? How far from Shanghai to your factory?
    A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
