JAC 4x2 3 Ton 5 Ton Flatbed Wrecker Towing Truck

    Buy cheap JAC 4x2 3 Ton 5 Ton Flatbed Wrecker Towing Truck from wholesalers

    Buy cheap JAC 4x2 3 Ton 5 Ton Flatbed Wrecker Towing Truck from wholesalers
    • Buy cheap JAC 4x2 3 Ton 5 Ton Flatbed Wrecker Towing Truck from wholesalers
    • Buy cheap JAC 4x2 3 Ton 5 Ton Flatbed Wrecker Towing Truck from wholesalers
    • Buy cheap JAC 4x2 3 Ton 5 Ton Flatbed Wrecker Towing Truck from wholesalers
    • Buy cheap JAC 4x2 3 Ton 5 Ton Flatbed Wrecker Towing Truck from wholesalers
    • Buy cheap JAC 4x2 3 Ton 5 Ton Flatbed Wrecker Towing Truck from wholesalers
    • Buy cheap JAC 4x2 3 Ton 5 Ton Flatbed Wrecker Towing Truck from wholesalers

    JAC 4x2 3 Ton 5 Ton Flatbed Wrecker Towing Truck

    Ask Lasest Price
    Brand Name : CLW
    Model Number : CLW5650
    Certification : CCC SGS BV
    Price : negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 500 Units per month
    Delivery Time : 30 days after receiving deposit at account
    • Product Details
    • Company Profile

    JAC 4x2 3 Ton 5 Ton Flatbed Wrecker Towing Truck

    Hot sale JAC brand 4x2 small wrecker truck 3tons 5tons flatbed wrecker towing truck road recovery truck


    Description

    1. According to the payload, there are light duty tow truck, middle duty tow truck and heavy duty tow truck to suit for different types of motor vehicle.

    2. The heavy duty tow truck could rescue the construction trucks, city bus and other types of heavy duty vehicles.

    3. The heavy duty tow truck has a rotate crane or boom, lifting capacity reaches 30tons.

    4. The wheel lift organ on the heavy duty tow truck could be more than 20 tons and the total towing capacity is more than 40 tons.

    5. Hubei Huilong Special Vhielce is experienced in making different types of wrecker tow truck.

    6. We have different brands of truck chassis to make the wrecker tow truck.

    7. The tow truck chassis are SINOTRUK HOWO, Dongfeng, Faw, ISUZU, JAC etc.

    Specification

    Item No.Parameters
    Overall Dimension7370X2300X2300 mm
    Driving ModelLLHD or RHD
    Cabin2~3 persons
    Gross Vehicle Weight8280 kg
    Curb Weight4850 kg
    Loading Weight4000Kg
    Wheel Base3815,3365,4150 mm
    Front/rear Tread1210/2470 mm
    Approach/Departure Angle24/12 degree
    Front Axle2980 kg
    Rear Axle5300 kg
    EngineCY4102-CE4C
    Engine horsepower91kw/125hp
    Displacement3856mL (Diesel)
    Max Driving Speed95 km/h
    Tire7.50R16 14PR( 7 pieces)
    Loading Plate
    Body MaterialQ235A carbon steel
    Lifting Weight4000kg
    Loading Plate Dimensions5200*2300mm
    Loading Plate Glide Range2700mm
    Min. Slope Anglo8 degree
    Steel Rope Length21m
    Winch Speed5m/min
    Towing Weight4000kg
    Wheel Lift Max. Length1640mm
    Wheel Lift Extension1340mm
    Tool Box no.1
    Auxiliary wheel no.2
    “L” bracket no.1
    LOGO

    Company Logo or any advertisement can be printed on the

    carriage body according to the customer's design.

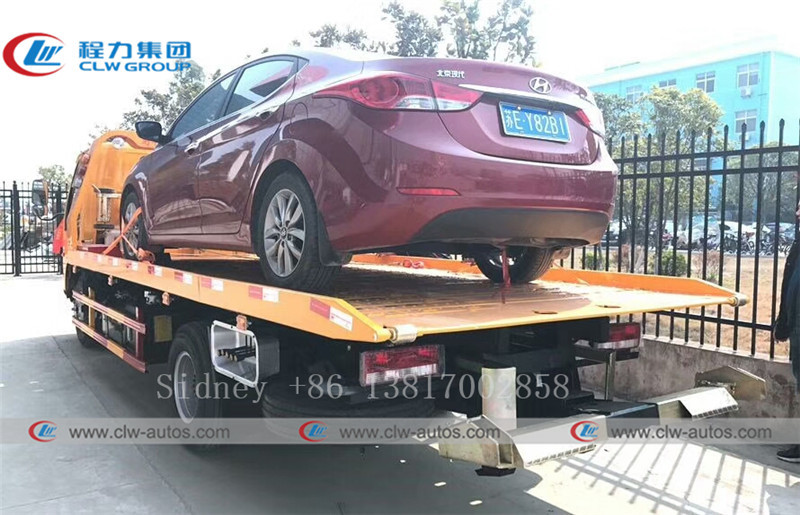

    Reference photos
    JAC 4x2 3 Ton 5 Ton Flatbed Wrecker Towing Truck
    JAC 4x2 3 Ton 5 Ton Flatbed Wrecker Towing TruckJAC 4x2 3 Ton 5 Ton Flatbed Wrecker Towing TruckJAC 4x2 3 Ton 5 Ton Flatbed Wrecker Towing Truck
    Parts diagram
    Item No.Name
    1chassis
    2Warning lamp
    3Single lamp(white-front clearance lamp;red-rear clearance lamp
    4Winch and steel rope
    5Loading plate
    6Side signal lamp
    7Chain hook
    8Wheel lift
    9“L” bracket
    10Operation and hydraulic system
    11Auxiliary wheel
    12Side guard rail
    13Tool box and accessories
    14PTO and oil pump
    15Witch and operation handle of PTO
    Factory overview

    Our Service

    • Quick feedback to solve your questions

    • Professional engineering and production team

    • Related Accessories and spare parts offered,no future worries

    • Regular customer after-sale visiting

    • Free technical staff training and guidance

    • Reasonable price and good quality

    • Quick delivery and shipment


    FAQ


    Q1: What kinds of wrecker trucks I can order from your company?


    A: There are various sizes of wrecker trucks with different functions and different capacity,you can contact us and tell your request.We will recommend you suitable product.


    Q2:: Have you supplied sweeper products to any overseas companies?


    A: Yes,with need of towing services,we offered wrecker trucks and wrecker superstructurer to many African,south-east Asian and south-American countries.


    Q3 What about warranty?


    A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.


    Q5: Where is your factory? How far from Shanghai to your factory?


    A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.

    Warranty


    1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
    2. We offer manual, video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
    3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.


    Spare Parts


    1. Supplying quick-wearing parts at the truck delivery.
    2. Good quality parts produced by the truck manufacturing factory.
    3. Only charge cost price for customer convenience.


    Shipment


    Land transportation or Ship by bulk cargo ship, container, roro ship


    After Sales Service


    Email & Phone call tracking for each truck on timely manners.
