​​​​​SINOTRUK HOWO 4x4 Offroad Fire Engine Truck With 4000 - 6000L Water Foam Tank

HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap ​​​​​SINOTRUK HOWO 4x4 Offroad Fire Engine Truck With 4000 - 6000L Water Foam Tank from wholesalers

    Buy cheap ​​​​​SINOTRUK HOWO 4x4 Offroad Fire Engine Truck With 4000 - 6000L Water Foam Tank from wholesalers
    • Buy cheap ​​​​​SINOTRUK HOWO 4x4 Offroad Fire Engine Truck With 4000 - 6000L Water Foam Tank from wholesalers

    ​​​​​SINOTRUK HOWO 4x4 Offroad Fire Engine Truck With 4000 - 6000L Water Foam Tank

    Ask Lasest Price
    Brand Name : CLW
    Model Number : CLW5102
    Certification : CCC,SGS,BV
    Price : US $38,000-46,000
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 500 UNITS/MONTH
    Delivery Time : 30 days after receiving deposit
    • Product Details
    • Company Profile

    ​​​​​SINOTRUK HOWO 4x4 Offroad Fire Engine Truck With 4000 - 6000L Water Foam Tank

    SINOTRUK HOWO 4X4 Offroad Fire Rescue Truck with 4000-6000L Water Foam Tank fire engine fire fighting truck


    Product Description

    Fire truck (also called fire fighting vehicle , Fire engine , Fire fighting apparatus , Fire service truck , Fire and rescue truck , fire truck , fire fight truck , Foam fire tank truck , Fire extinguishing foam tanker ) is a vehicle designed primarily for fire fighting operation to extinguish fire efficiently to prevent fire spread , reducing the loss caused by fire maximumly .

    Fire fighting truck can be divided into many types:
    1. According to vehicle size , There are mini fire fighting truck , Light fire fighting truck , Medium fire fighting truck , Heavy duty fire fighting truck .
    2. According to chassis drive type , there are 4*2 fire fighting truck , 6*4 Fire fighting truck , 8*4 fire fighting truck , and off road type 4*4 , 6*6 fire fighting truck .
    3. According to chassis brand , There are ISUZU fire fighting truck , Dongfeng fire fighting truck , Foton fire fighting truck , Faw fight fighting truck , Shacman fire fighting truck , Sinotruk fire fighting truck , Mercdes fire fighting truck , etc .
    4. According to fire agent , there are water tank fire fighting truck , dry powder fire fighting truck , water / Foam fire fighting truck.

    * Low& Flat high water flow washing, high speed and high efficiency.
    * All pneumatic pressure system, no weakness of hydraulic pressure, like high price and complicated mainteance
    *Metal printed inside the tank keeps the tanker from rusting, stainless steel tanker is optional.


    Relying on strong technological capability, we can produce and sell the DONGFENG, SINOTRUCK, JMC, ISUZU, NORTH Benz series water fire truck, foam fire truck, powder 2. Fire truck, emergency rescue fire truck, forest fire truck, water truck with fire pump etc.

    Our fire truck is widely used for fire fighting of construction, forest, petroleum, chemical industry, factories, mines, oil depot, wharf and other places.

    All of our fire trucks with reliable quality, stable performance and reasonable price, and also all are equiped with full fire equipments.


    Product specification

    Cabin
    SINOTRUK Fire Truck HOWO, 4X2 HOWO Fire Truck, HOWO Fire Truck 336HP
    Vehicle Main Dimensions
    (L x W x H)mm
    8100X2496X3080
    Wheel base (mm)
    4700
    Approach/Departure angle(°)
    19/24
    Weight in KGS
    Tare Weight
    12680
    Loading Capacity
    28320
    Max. driving speed(km/h)
    90
    Engine
    Brand
    Sinotruk
    Model
    MC11.36-40
    Type
    4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
    Horse Power(HP)
    336HP
    Emission standard
    Euro II
    Gearbox
    HW19710, 10 forwards & 2 reverse
    Clutch
    Reinforced diaphragm clutch, diameter 430mm
    Steering Gear
    ZF 8098,power steering, hydraulic steering with power assistance
    Tire
    1315/80R22.5 All steel radial tire , 11 pieces including one spare tire
    Brakes
    Service brake: dual circuit compressed air brake
    Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels
    Auxiliary brake: engine exhaust valve brake
    Fire Fighting Tanker Body
    Water Tank Volume
    3000-4000L
    Foam Tank Volume
    1000-2000L
    Fire Pump Flow
    20L/S/1.0MPa 40L/S/1.0MPa
    Fire Pump Distance
    Water
    >65m
    Foam
    >60m

    No.NameSpecificationQTY
    1Suction pipeØ125×2000mm4PCS
    2Fire fighting beltØ65×2000mm8PCS
    3Fire fighting beltØ80×2000mm4PCS
    4Water purifierFJF1251PC
    5WyeFF651PC
    6NcreaserKJ65/802PCS
    7Belt pothookFG6004PCS
    8Belt clothFP4704PCS
    9Above ground hydrant wrenchFB4501PC
    10Underground hydrant wrenchFBX8001PC
    11Suction wrenchFS100/1252PCS
    12Straight stream shut-off nozzleQZG191PC
    13Straight stream nozzleQZ191PC
    14Straight stream multi-jet squirtQZH191PC
    15Fire fighting axeGF2851PC
    16ToolGT11PC
    17Fire extinguisher1PC

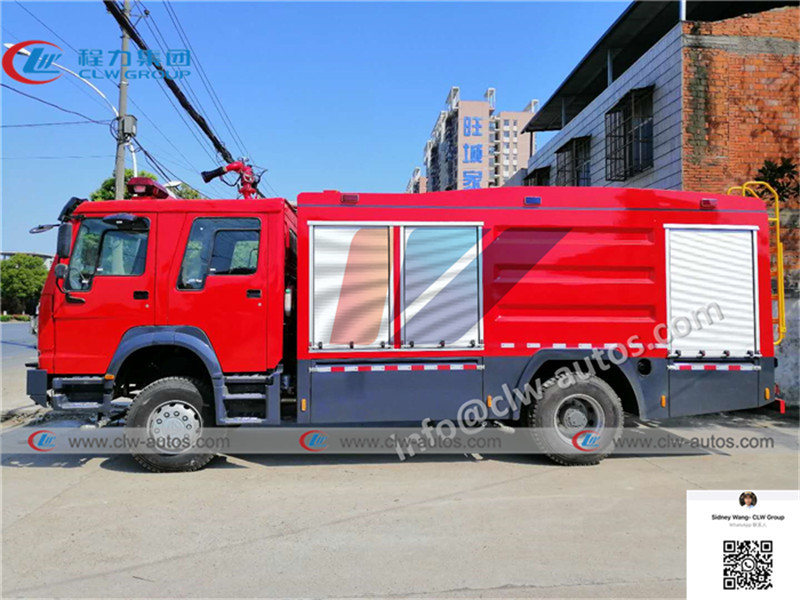

    Reference Photos
    ​​​​​SINOTRUK HOWO 4x4 Offroad Fire Engine Truck With 4000 - 6000L Water Foam Tank​​​​​SINOTRUK HOWO 4x4 Offroad Fire Engine Truck With 4000 - 6000L Water Foam Tank​​​​​SINOTRUK HOWO 4x4 Offroad Fire Engine Truck With 4000 - 6000L Water Foam Tank​​​​​SINOTRUK HOWO 4x4 Offroad Fire Engine Truck With 4000 - 6000L Water Foam Tank
    Parts of Fire Truck
    Workshop of Fire Truck
    Bulk shipment of Fire Trucks
    Factory overview

    Our Service

    • Quick feedback to solve your questions

    • Professional engineering and production team

    • Related Accessories and spare parts offered,no future worries

    • Regular customer after-sale visiting

    • Free technical staff training and guidance

    • Reasonable price and good quality

    • Quick delivery and shipment


    FAQ


    Q1: What kinds of rescue fire truck I can order from your company?


    A: There are various sizes and types of fire fighting trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.


    Q2:: Have you supplied rescue fire truck to any overseas companies?


    A: Yes,with need of government project,we offered fire fighting trucks to many Africa and south-east Asian,south-American countries.


    Q3 What about warranty?


    A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.


    Q5: Where is your factory? How far from Shanghai to your factory?


    A: Our factory is based in Suizhou city, Hubei province, China. Our overseas marketing office is in Wuhan city,Hubei Province.Wuhan is about two hours' plane and four hours' high speed train from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
