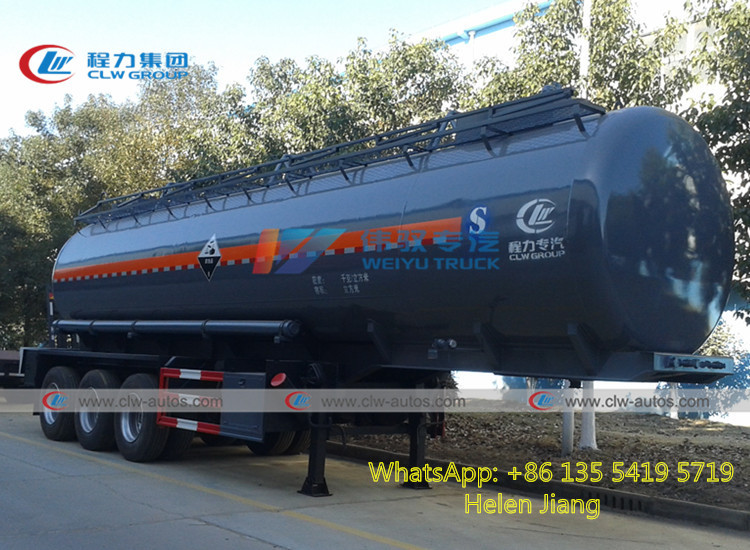

3 Axle 18CBM 24000Liters Chemical Liquid Dilute sulfuric acid Tank
Semi Trailer
Product Desription:
1. Chemical tank trailer, aslo called corrosive liquid tank trailer, is specially designed
and produced to transport acid, alkali, asphalt and other corrosive
goods or chemical liquid.
Acid: hydrochloric acid, sulfuric acid,nitric acid, sodium
carbonate, nitric acid.
Alkali: sodium hydroxide, potassium hydroxide.
Others:liquid asphalt.
2. Our product capacity:
Available in 10 cubic meters~60 cubic meters capacity,
4x2/4x4/6x2/6x4/6x6/8x2/8x4/2 axle trailer/3 axle trailer to
different option(red marked are our hottest wheel drive chemical
liquid vehicles models)
3. Material and craft:
a. high strength Q235 steel lined with plastic tank
b. stainless steel tank
c. aluminum tank
d. pure plastic tank
e. other materials.
According to different volume and medium, the thickness is
different but will be in line with chemical tank manufacturer
standard and our designs to keep tank body high quality. The curb
weight of the strength of whole tank are the most important we need
to balance.
Commonly speaking, the thickness of out layer carbon steel is
2mm~6mm, inner plastic lined layer is 14mm~26mm.
4. Pipe and valve:
All plastic material.
5. Manhole and manhole cover:
All surface which is possible contacting with corrosive liquid will
be lined with plastic. The manhole and manhole cover are all lined
with plastic.
6. Other:
FUWA 13T axle, 2 manhole, top walk protect fence, side fence, rear
fence, rear ladder, 1 tool box, JOST outrigger, JOST kingpin, 2
fire extinguisher racks, 1 spare tire, anti-static belt, light,
warning light, warning signs, reflective stickers,
7. Option:
Multiple compartment, BPW axle, 2 tool box, burner machine(like the
transport of liquid asphalt), etc.
product Specification
| Main Dimensions |
| Overall Length | 9440mm |
| Overall Height | 3000mm |
| Overall Width | 2500 mm |
| Tare Weight | 9400 KGS |
| Loading Capacity | 35000 kgs |
| Photo only for reference, final product can be made according to
exact requirements |
| Tank Body |
| Shape | Mono block Cylinder |
| Total Volume(m3) | 18 CBM |
| Tanker Body Material | 5 mm Carbon steel lined with 16 mm plastics , |
| End plate | Carbon steel lined with 16 mm plastics or 6 mm stainless steel 316L |
| Manhole cover | Carbon steel lined with 16 mm plastics or Stainless steel manhole
cover, ∮500mm ,2 sets with 2 breather valve |
| Discharging valve | 1 sets ∮100mm discharging valves, stainless steel material or
Carbon steel lined with 16 mm plastics |
| Discharging Pipe | 4”rubber hose, 2 pcs, 6m long , stainless steel material or Carbon
steel lined with 16 mm plastics |
| Chassis |
| Axle | 3 axles |
| BPW or 12 ton |
| Landing Gear | JOST brand Two-speed, manual operating, heavy duty landing gear |
| King Pin | JOST brand 2” bolt-in king pin |
| Suspension | German design heavy duty mechanical suspension 13-pcs leaf spring |
| Pneumatic Braking System | WABCO RE 4 relay valve; T30/30 Spring brake chamber; 40L air tanks. |
| Wheel rim | 9.0-22.5 wheel rim, 12 pieces |
| Tire | 12R22.5 tubeless tire , 12 pieces |
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of
anticorrosive prime, 2 coats of final paint |
| Accessories | One standard tool box, one spare tyre and carrier |
More pictures for 3 Axle 18CBM 24000Liters Chemical Liquid Dilute
sulfuric acid Tank Semi Trailer:
Drawing Customized for each customer for different refuirement:
Lined with plastics 16mm in tanker, Production pictures:

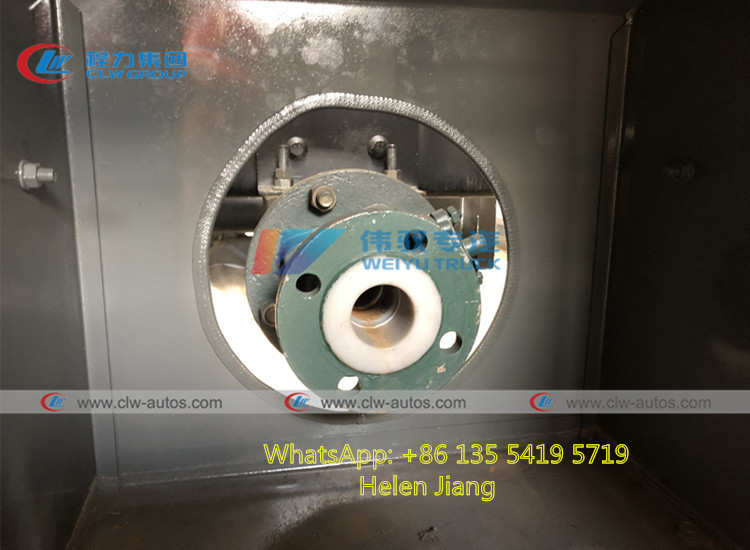

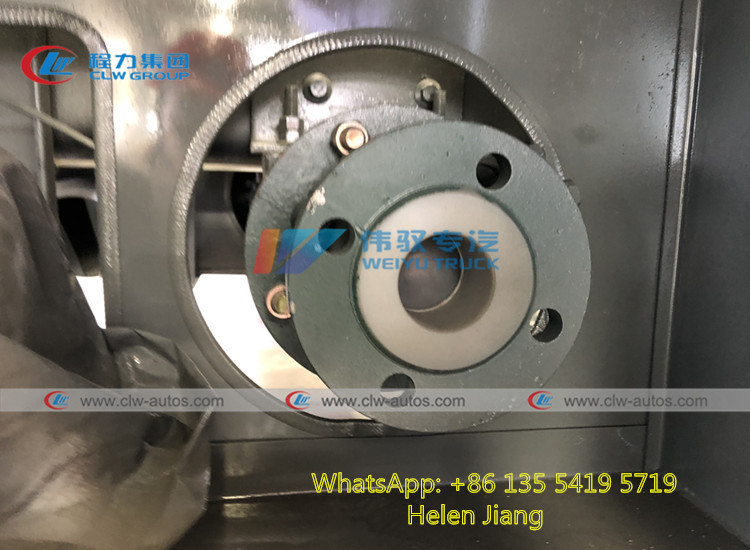

Plasctc Lined for discharge valves:
Plastic lined for manhole:
Features for 3 Axle 18CBM 24000Liters Chemical Liquid Dilute
sulfuric acid Tank Semi Trailer
Warranty
1. One year free warranty for major 3 components of our trucks:
engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's
country to assist the installation and operation when quantity
reaches 20 units.
3. Transportation warranty: our company offers transportation
insurance for customer to ensure the products arriving at
destination safely.
FAQ
Q: Can I buy a sample of your product for testing?
A. Yes, that's fine. Our MOQ is 1set.
Q: What's about the payment?
A: 40% deposit by T/T before order,balanced by T/T before delivery.
Q: How about quality of your factory product ?
A: Our product quality is ahead of other manufacturers in the
industry. We have advanced production equipment ,skilled workers
and perfect mangement quality. So the quality is under control. Our
products are certificated by ISO 9001:2008,CCC and BV, and many
trucks passed SGS inspection .
Q: How do you gurantee the quality of the product?
A: Don't worry, my dear client. Any one of you is very important to
us. So we will do inspect all of the goods before shipment. And we
had joined the trade credit insurance system. If the product
received has quality problems, Alibaba will return the advance
payment back to you.
Q: Why do you choose us?
A: We are self-produced and self-selling manufacturer and we have
more than 15 years of production experience, our products have been
sold all over the world.
Q: What about your after-sale service?
A: We offer 1 year after-sale service. We can supply the spare
parts at factory price all the time.
Q: Can we visit your factory before purchasing?
A: We welcome you to visit our factory any time and we will show
you our production line .
