Brand New Sinotruk HOWO 40tons 6X4 Dump Truck Tipper Dumper Truck

Product Description

1) Dump truck brand: SINOTRUK HOWO, CAMC, SHACMAN, JAC, NORTH-BENZ, ISUZU, FOTON, etc.
2) Tipping Model: Front-tipping, Middle-tipping.
3) Hydraulic oil cylinder brand: International brand HYVA or Chinese famous brand.
4) High tensile steel for dumper materia: 4mm, 6mm, 8mm,10mm or as per customer's request.
5) Used in Construction or Mineral site for Transportation of mineral, stone, sand, garbage and etc.

Product Specification

Cabin		HOWO 76 Standard Cab With one sleeper, 70° hydraulically tillable to the front as attached photo for ref.
Vehicle Main Dimensions	(L x W x H) mm			8860*2496*3450
	Wheel base (mm)			3825+1350
	Wheel track (front/rear) (mm)			1500/1525
	Approach/Departure angle(°)			19/24
Weight in KGS	Tare Weight				12390kg
	Loading Capacity				40000kg
	Front axles loading capacity				HR9 1x9000kg
	Rear axles loading capacity				HC16 2x16000kg
Max. driving speed(km/h)						85
Engine			Brand				Sinotruk Howo
			Model				WD615.47
			Type				4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
			Horse Power(HP)				290HP
			Emission standard				Euro 2
Gearbox			HW19710, 10 forwards & 2 reverse
Clutch			Reinforced diaphragm clutch, diameter 430mm
Steering Gear			ZF 8118, power steering, hydraulic steering with power assistance
Fuel tank (L)			300
Tire			12R22.5 tubeless tire,10 pieces with one spare
Brakes			Service brake: dual circuit compressed air brake Parking brake (emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake

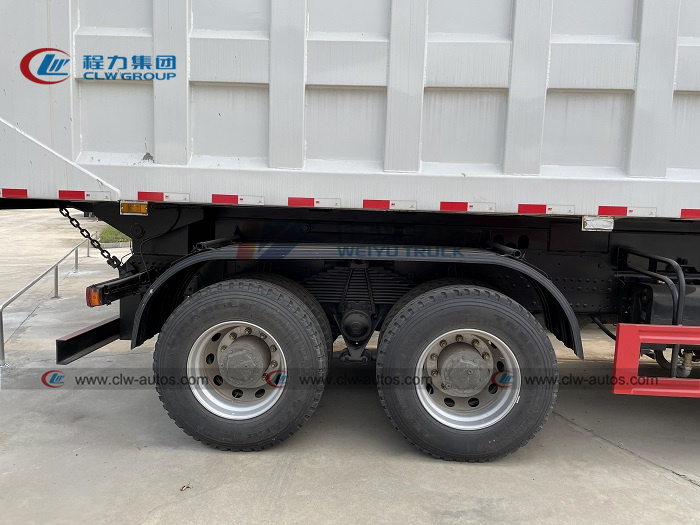

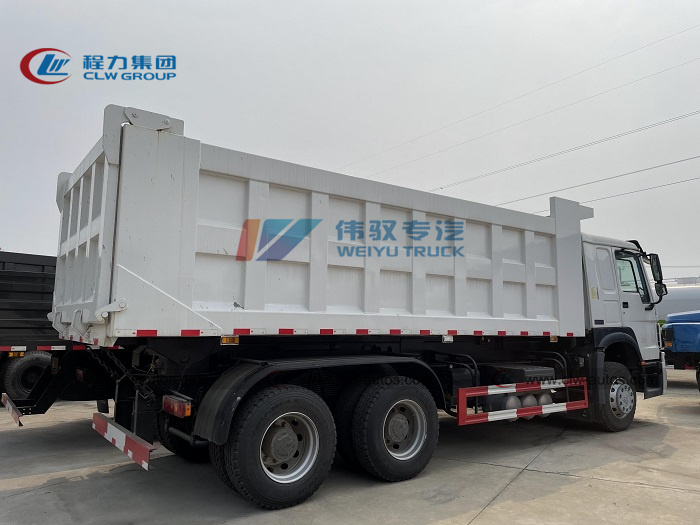

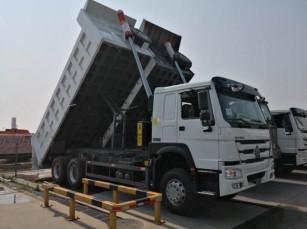

Reference Photos

Other Related Dump Trucks

After-sales Service

1. Provide English operation manual and Instruction videos.
2. One year free warranty for major 3 components: engine, gearbox, axles; One set of easily worn spare parts of truck chassis for free; Spare parts supplied at factory price whenever needed.
3. Aftersales service whenever needed. Our engineers will go to customer's country to assist the installation and operation if order QTY.is more than 10 units. Contact Lea for more details+86 155 2791 1810.
