    2 Axle 30000L Heated Asphalt Tank Trailer With Insulation Layer And Burner

    Ask Lasest Price
    Brand Name : CLW
    Model Number : CLW20210914
    Certification : ISO9001, CCC, BV, SGS
    Price : Negotiated
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 500 units per month
    Delivery Time : 30-35 days after receiving the deposit
    • Product Details
    • Company Profile

    2 Axle 30000L Heated Asphalt Tank Trailer With Insulation Layer And Burner

    2 Axle 30000Liters Heated Bitumen/Asphalt Tank Trailer With Insulation Layer And Burner


    Product Desription:

    1. Function of this series bitumen tanker trailer:

    This series tanker semi trailer is tank-style designed, which is suitable for the transportation of Bitumen/Asphalt/Pitch/Tar.
    2. Technical Parameter for 30T bitumen tanker trailer:
    Considering different countries have different road safety rules,defferent regulations,different road conditions.We can manufacture different asphalt bitumen tanker according to your sepecial situation.


    product Specification


    Technical Data
    Weight Rating (kgs)Tare Weight9000
    Pay Load35000
    Dimension
    (㎜)

    Trailer


    Overall Length10580
    Overall Width2490
    Overall Height3520
    Wheelbase6280+1310
    Tank
    ShapeEllipse
    Total Volume(m3)31.5
    Valid Volume(m3)30
    Drift Diameter(inch)System4
    Outlet3
    MaterialQ235A/6mm
    End plateQ235A/6mm, by punching
    Spurn waterQ235A/5mm, 20 inch manhole 508MM
    Parts for Tank
    Manhole cover3 sets of 500mm/Q235 manhole fixed on top of Tank, with breather valves, 3 pieces, 500mm
    Unloading valve2 sets of DN80 fixed at button of Tank
    Pipeline at button of tank4”seamless steel tube/Q235, 100MM
    Labeling systemOil Type Indication
    Anti-static electricity systempulling, wire carrier, sheet copper (6 sheet, reasonable layout)
    BurnerItaly Riello Brand.
    Other Parts
    Ladder1 unit at front of Tank
    Guard on top of TankZinc galvanizing net
    Oil hose boxCircular single hole tube, 1 unit on each side
    Oil hose2 unit, 3” x 6mm size in black rubber
    Side guardcross bar structure
    Rear button guardFixed type
    Work tank deckBox type
    Fire extinguisher box2 unit at back of each side
    Mud guardtrapezoid structure in steel
    Lights and wire24V, 7 coils with lights for parking, reverse, instruction, head lamp and end lamp
    Chassis
    Main BeamsHeavy duty and extra durability designed; Opting for high tensile steel Q345B,welded by automatic Submerged-Arc processes
    AxleTwo units of BPW 13 ton axle, FUWA, L1 brand are optional.
    Landing Gear28T, 19” ,JOST Two Speed Manual Operation
    King PinOne unit of 2” bolt-in king pin
    SuspensionGerman style mechanical tandem suspension with 11mm x 100mm 13 leaf springs
    Pneumatic Braking SystemOne units of WABCO RE 6 relay valve; four units of T30/30 chamber; one units of reliable local brand 40L air tank ; two units of reliable local brand standard coppery air-connector.
    Wheel rim8.25-22.5 rim, 9 pieces including one spare
    Tire11R22.5 tubeless tire, 9 pieces including one spare
    Painting

    Sand blasting processing clean rust

    One coats of anti-corrosive

    Two coats of finish urethane paint

    Color as customer choice

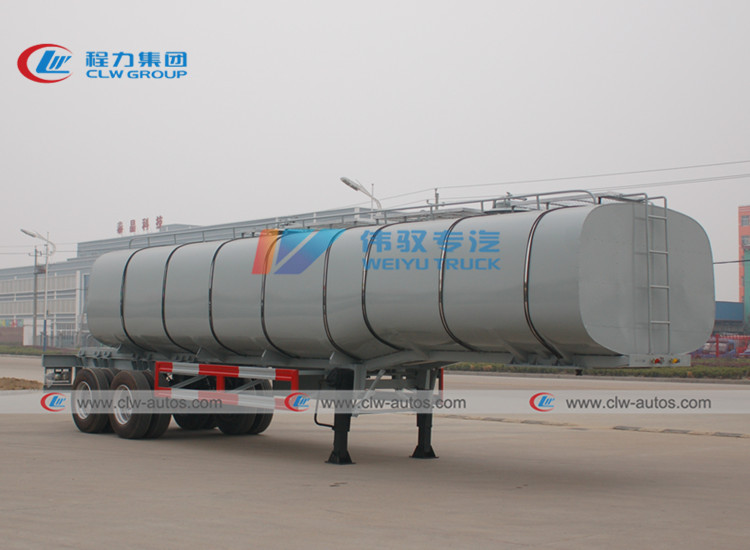

    More pictures for 2 Axle 30000Liters Heated Bitumen/Asphalt Tank Trailer With Insulation Layer And Burner:

    Warranty


    1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
    2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
    3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.



    FAQ


    Q: Can I buy a sample of your product for testing?

    A. Yes, that's fine. Our MOQ is 1set.


    Q: What's about the payment?

    A: 40% deposit by T/T before order,balanced by T/T before delivery.


    Q: How about quality of your factory product ?

    A: Our product quality is ahead of other manufacturers in the industry. We have advanced production equipment ,skilled workers and perfect mangement quality. So the quality is under control. Our products are certificated by ISO 9001:2008,CCC and BV, and many trucks passed SGS inspection .


    Q: How do you gurantee the quality of the product?

    A: Don't worry, my dear client. Any one of you is very important to us. So we will do inspect all of the goods before shipment. And we had joined the trade credit insurance system. If the product received has quality problems, Alibaba will return the advance payment back to you.

    Q: Why do you choose us?

    A: We are self-produced and self-selling manufacturer and we have more than 15 years of production experience, our products have been sold all over the world.

    Q: What about your after-sale service?
    A: We offer 1 year after-sale service. We can supply the spare parts at factory price all the time.


    Q: Can we visit your factory before purchasing?
    A: We welcome you to visit our factory any time and we will show you our production line .
