    SGS 3 Axle 60M3 Bulk Feed Tanker Semi Trailer With Electric Hydraulic Auger

    Ask Lasest Price
    Brand Name : CLW
    Model Number : CLW20210911
    Certification : ISO9001, CCC, BV, SGS
    Price : Negotiated
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 500 units per month
    Delivery Time : 30-35 days after receiving the deposit
    • Product Details
    • Company Profile

    SGS 3 Axle 60M3 Bulk Feed Tanker Semi Trailer With Electric Hydraulic Auger

    3 Axle 60000L Feed Transport Tank Bulk Grain Delivery tanker Semi-Trailer with Electric Hydraulic Auger


    Product Description
    1. Bulk feed transport vehicleis a special transport vehicle made of high-quality, high-strength steel plate welded forming tanks,and equipped with electric or hydraulic auger unloading system on the basis of various types of trucks or second-classchassis.

    2. Bulk feed truckconsists of the chassis, the loaded feed tank, the discharge auger system and the electron-hydraulic operating system.


    3. Bulk feed transporter tanksare welded with high-quality steel plates. Different bins can be loaded and unloaded at the same time. Electron-hydraulic auger unloading saves manpower and time, convenient loading and unloading, less residue and beautiful appearance.



    product Specification


    Vehicle Parameters

    Overall Dimensions

    (L*W*H)(mm)

    12955×2550×3980

    Tank Dimension

    (L*W*H)(mm)

    12220×2540×2270
    Total Mass(kg)34850Curb Weight(kg)12350
    Bulletin loading(kg)22500Theoretical loading(kg)27000
    Appearance colorWhite/ optionalCertificationISO9001, 3C
    Chassis ParametersParking brake typeManual valve control spring brake cylinder
    Driving brake systemIndependent double circuit, air pressure, drum brake belt ABS
    Tire specifications11R22.5 16PR
    Trailer traction pin height from the ground(mm)1228
    Trailer radius of gyration(mm)1600
    Trailer gap radius2300
    Wheelbase(mm)7050+1310+1310
    Tank ParametersTank gross volume (m3)56Space quantity6
    Conveying height(m)10.2Max conveying distance(m)8.8
    Discharge speed(Kg/min)550-650Residual rate(%)≤0.22
    Discharge byHydraulic auger
    Tank drive formThe feed is conveyed by the lifting auger to the manual and wireless remote-control mode to realize long-distance transport and improve the level of epidemic prevention. And the external power is available.
    Electrical configurationComplete set of Schneider Electric control system; conveyor motor ABB, with 20m external power cable, external power supply 380V

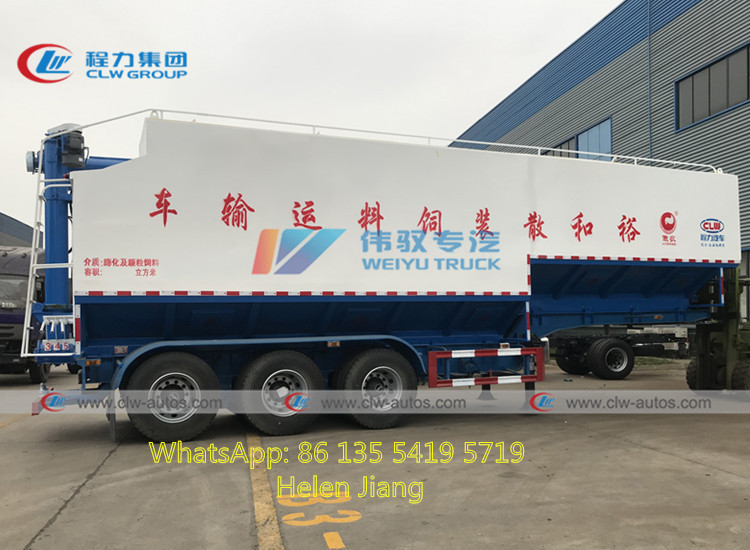

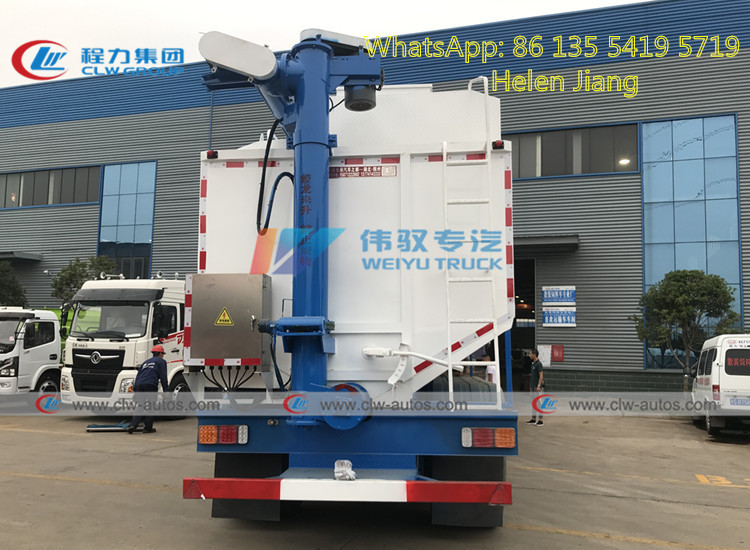

    More detailed pictures for 3 Axle 60000L Feed Transport Tank Bulk Grain Delivery tanker Semi-Trailer with Electric Hydraulic Auger

    Warranty


    1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
    2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
    3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
