Sinotruk HOWO 4x2 15m3 12m3 LPG Gas Bobtail Tanker Truck

Ask Lasest Price
Brand Name :	CLW
Model Number :	CLW5256GS
Certification :	ASME,CCC,BV,SGS
Price :	Negotiable
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	500 Unit/Month
Delivery Time :	30-35 working days

Add to Cart

Product Details
Company Profile

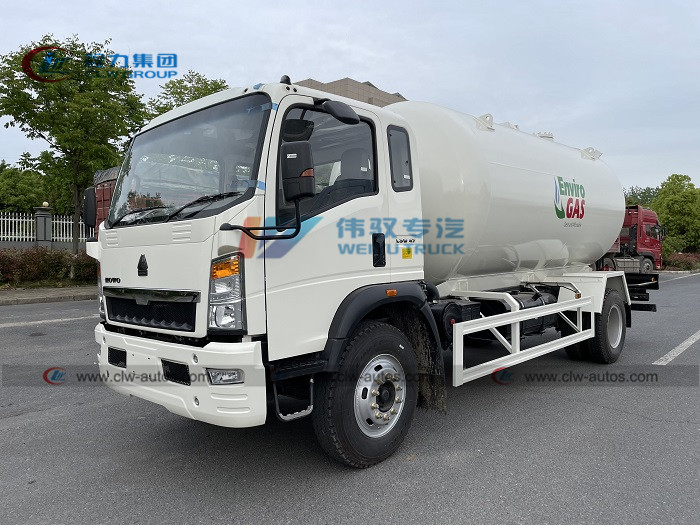

Sinotruk HOWO 4x2 15m3 12m3 LPG Gas Bobtail Tanker Truck

**Sinotruk HOWO 4*2 15m3 15000liters 12000L Liquid Propane Gas Bobtail 15cbm 7.5ton 6mt LPG Tank Truck**

Product Description

LPG rigid truck(also called lpg bobtail truck,lpg dispenser truck,lpg refilling truck,lpg tanker truck,lpg dispensing truck) is designded and used for transporting and refueling propane/lpg gas/liquid petroleum gas into smaller lpg skid station tank and home cylinders.

With different design,you can choose volume flow meter or lpg dispenser for your truck. The lpg dispenser is widely used for filling home cylinders.It can be measured by filling weight or filling volume and it can offer receipt in english,french or spanish as required. With above lpg bobtail,you can start lpg filling business easily.

1. Truck Brand optional for lpg bobtail :Sinotruk Howo, dongfeng,faw,isuzu,foton and other brands.

2. Tank Size of lpg bobtail : 5000liters,5000L,10,000liters,10000L,10cbm,12000liters 12000L,12cbm,15000 Liters,15000L,15cbm,

3. Function of lpg bobtail : mobile Propane or Butan Gas Delivery/ Refilling/bottling/filling truck

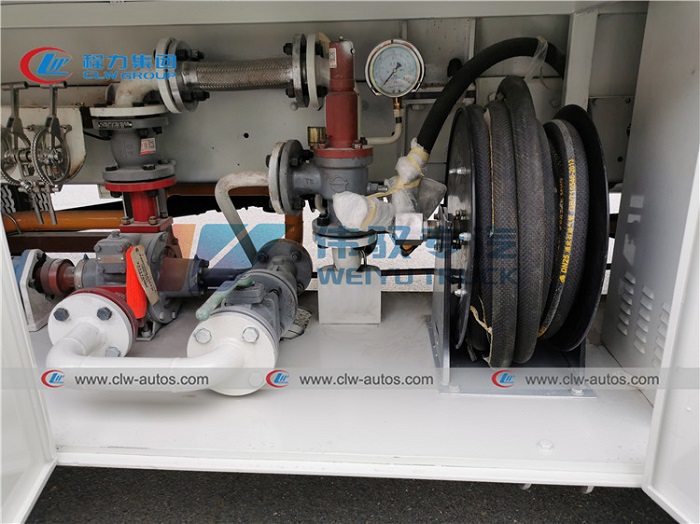

4. Refiling System of lpg bobtail : 2" Flowmeter or intelligent filling dispenser machine,2" Corken or Chinese brand Pump,15meters Filling Hose Reel,filling nozzle,radiator,hydraulic oil box

5. Truck Spec of lpg bobtail : Yuchai Engine 140HP or 160hp, WLY6T51 Gearbox 5 Forward & 1 Revers, 8.25R20 Tires or 9.00R20 tires.

Product Specification

Item No.	Parameters
Overall Dimension	7600x2300x2980 mm
Driving Model	Left hand drive or right hand drive
Gross Vehicle Weight	11460 kg
Curb Weight	6460 kg
Payload	5000 kg
F/R Axle Loading	3200/8000 kg
Wheel Base	4200 mm
Front/rear Tread	1886/1845 mm
Approach/Departure Angle	27/20 degree
Engine	Yuchai 4110,YC4E160-33
Engine horsepower	160 HP EUROIII
Displacement	4260mL (Diesel)
Max Driving Speed	95 km/h
Gear Box	DC6J65TC,6 forward& 1 reverse
Cabin	2~3 Passenger allowed,with A/C
Tire	8.25R20 (6 pc with 1 spare)
LPG tank
Volume:	8~10cbm
Tank material:	Q345R
Tank diameter:	1800mm
Tank thickness:	10mm
End plate	10mm
Tank length:	As designed
Gas phase	DN50
Liquid Phase	DN50 or DN80 for option
Filling gas	Propane(LPG)
Design Pressure:	1.61Mpa
Accessory
Level Gauge	Manual rotation type,at the rear of tank
Safety Valve	1,DN80
Tool and Valve Box	1
LPG pump	1
LPG Volume Flow Meter	1
Filling Hose	15 meters
Filling Nozzle	1pc,Standard for 12.5kg cylinder
Thermometer	1
Pressure Gauge	1
Emergency Valve	1
Fender	Steel
Fire Extinguisher holder	2
Exhaust shaft	At the front of truck for safety

Reference Photos

Two Types of Dispenser for Optional

After-sales Service

1. Provide English operation manual and Instruction videos.
2. One year free warranty for major 3 components: engine, gearbox, axles; One set of easily worn spare parts of truck chassis for free; Spare parts supplied at factory price whenever needed.
3. Aftersales service whenever needed. Our engineers will go to customer's country to assist the installation and operation if order QTY.is more than 10 units. Contact Lea For More Details: +86 155 2791 1810.

FAQ

Q1: What kinds of LPG products I can order from your company?

A: We specialize in producing 5CBM to 200CBM LPG above ground storage tanker, 5CBM to 120CBM LPG underground storage tank, 5CBM to 38.5CBM LPG tank truck, 5CBM to 25.5CBM LPG dispenser truck/LPG bobtail truck, 40CBM to 61.9CBM LPG semi trailer and 5CBM to 50CBM LPG Skid Station/LPG mobile filling station etc. Please feel free to contact us for details.

Q2: What is your production standard of LPG products? Can you manufacture your products under ASME standard?

A: Usually our LPG products adopts GB-150/China standard, there ASME standard for optional. Yes, we can do ASME standard and our ASME standard as per DIV 01 SEC VIII.

Q3: Have you supplied LPG products to any renowned companies?

A: Our group company is a regular strategic partner of some big gas companies. We have supplied many storage tanks and semi trailer for them with different sizes,such as ENOC,AARANO,NIPCO,LAKEGAS...The biggest size tank we ever provided is 200m3 LPG storage tanks,.

Q4: What about warranty?

A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?

A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
