    CCC 3 Axle 50000L Stainless Steel Tanker Semi Trailer For Asphalt Delivery

    3 Axle 50000Liters 50tons Asphalt Bitumen Transport Stainless Steel Tanker Semi Trailer

    Product Description
    1. Purpose: It used for transporting heated bitumen, emulsified bitumen and modified asphalt.
    2. Main parts: Burner, Thermometer, Level gauge.
    3. Tanker semi trailer composed of sealed tanker, climbing ladder, running gear (including axles, tires, landing gear, valve,pipeline system, heating system,etc.
    4. This Tanker is applied to transport liquid
    bitumen in a short or long distance. It's an ideal equipment to transport bitumen from storage field or plant to construction site and operation road,etc.
    5. The trailers are made by advanced techniques from both Europe and China
    6.
    The key parts equipped with high quality fittings both domestic and overseas
    7. Skeleton fasten by strength welding process
    8. Safe and reliable driving for any bad road conditions
    9. The tank
    equipped with heating system and insulation layer that can keep continuous heating for bitumen and keep warm loss by insulation layer.
    10. Easy maintained and
    durable

    Specification

    STAINLESS STEEL ASPHALT/BITUMEN TANK SEMI TRAILER SPECIFICATIONS

    (3 axle heating bitumen tank semi trailer)

    Remark
    Overall dimensions (L*W*H)12990*2495*3995 mmCylinder shape
    GVWApprox 62550 kg
    Mass in working orderApprox 12550 kg
    Max loadingApprox 50000 kgWater load at 20ºC
    Axle specification13T×3pcsFUWA axle
    Suspension systemMechanical suspensionOptional air suspension
    Tire specification11.00R22.5×12pcs (tubeless tire),Optional radial tire. (11.00R20).
    King pin90 # (3.5") JOSTOpting 2" 50#
    Landing leg28T load landing legJOST
    Braking systemWABCO Duplex line pneumatic brake
    Voltage24V (7 lines)
    BITUMEN TANK SPECIFICATION
    Tank capacity50000 L (water load at 20 °C)
    Tank shapeCylinder shape
    MaterialMild steel Q345B
    Thickness6 mm thickness
    End Enclosure6 mm thicknessFlanged flat head
    Washplate4 mm thickness
    Insulated100 mm thicknessFiber glass rock wool
    Outside materialStainless steel 1 mm thickness
    Flue Pipe2 pcs
    Firebox2 pcs
    Model of Burner1 unitOptional 2 unit type.
    Thermal Power of Burner200 thousand kcal
    Model of Generator1 unit
    Model of Electric Control CabinetPLC-3
    Manhole2 units DN500 mm
    Asphalt Protective Frame800*750*150 mmWith asphalt flooding pipe DN50
    Thermometer0~300
    Working temperature250 ºC
    Working pressure0.9 Bar
    PaintingSand blasting before painting; two coats of primer, anti corrosion, two coats of finish painting.AS REQUIREMENT
    ACCESSORIES
    MudguardsPVC Mudguards
    Side protectionNil.
    Fire extinguishers carriers2pcs
    Guardrail of LadderW=400 mm
    LadderFront back ladder
    Spare tire carrier2 pcs
    Spare water tankoptional

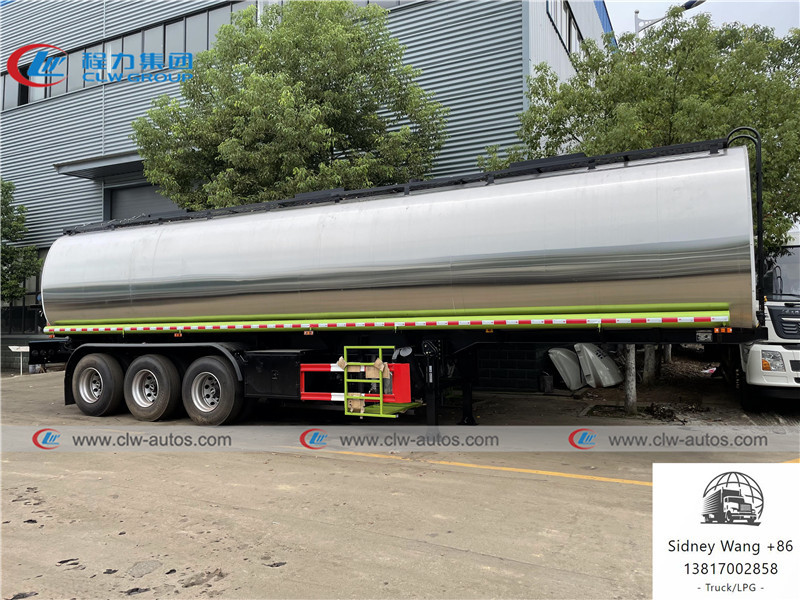

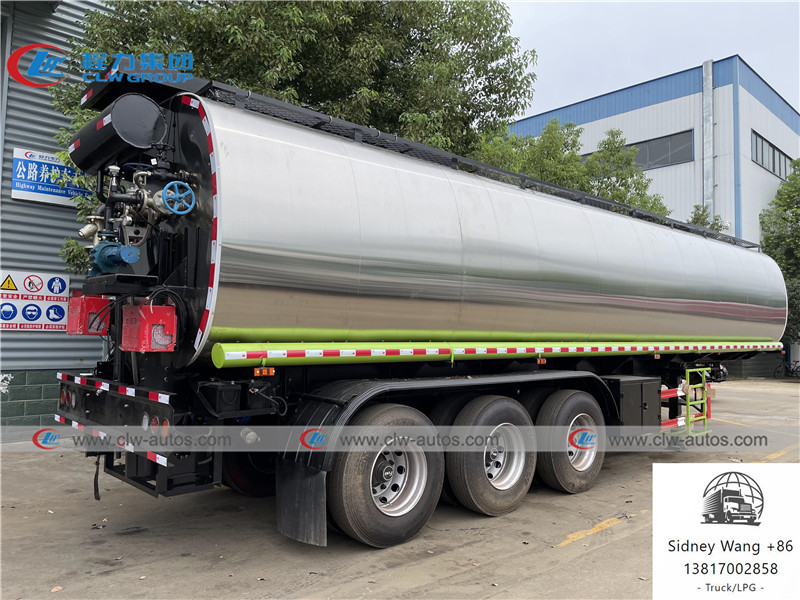

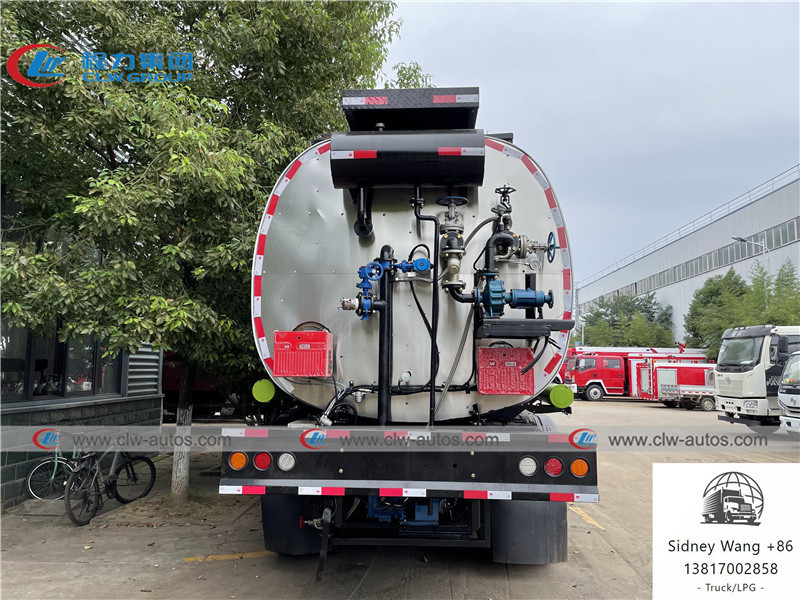

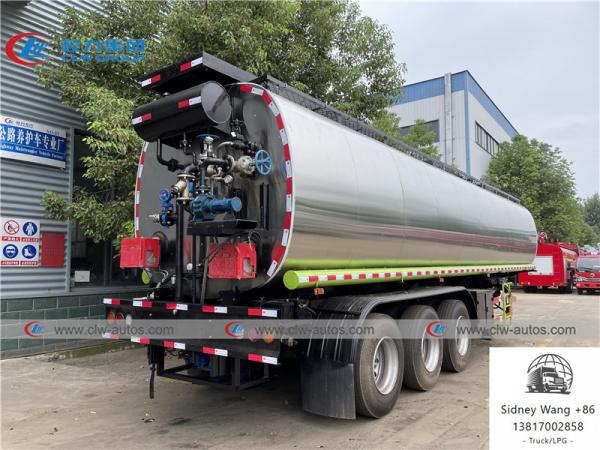

    Reference photos

    CCC 3 Axle 50000L Stainless Steel Tanker Semi Trailer For Asphalt DeliveryCCC 3 Axle 50000L Stainless Steel Tanker Semi Trailer For Asphalt Delivery

    CCC 3 Axle 50000L Stainless Steel Tanker Semi Trailer For Asphalt DeliveryCCC 3 Axle 50000L Stainless Steel Tanker Semi Trailer For Asphalt Delivery

    Factory overview

    Sucessful Case


    FAQ


    Q1: What kinds of bitumen truck and trailer I can order from your company?
    A: We can supply 4CBM to 35.5CBM Bitumen tank truck, and 34CBM to 50CBM Bitumen tank trailer, it's only for bitumen storage and transportation. We also can supply 4CBM to 35.5CBM Bitumen distribution truck and all kinds of Synchronous Chip Sealer. As for

    Q2: Can we adopts International brand for the key parts of this kind of bitumen tank truck and trailer?
    A: Sure. All key part of our bitumen tank truck and trailer all adopts Internation brand. Eg: We always adopts Italy brand Riello brand burner.

    Q3: What about warranty?
    A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

    Q4: Where is your factory? How far from Shanghai to your factory?
    A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!


    Sales Service
    ① Pre-sales Service: Communicate with customers, analyze their needs.
    ② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
    ③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.


    Warranty


    1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
    2. We offer manual, video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
    3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.


    Spare Parts


    1. Supplying quick-wearing parts at the truck delivery.
    2. Good quality parts produced by the truck manufacturing factory.
    3. Only charge cost price for customer convenience.


    Shipment


    Land transportation or Ship by bulk cargo ship, container, roro ship
