Sinotruk HOMAN 4x2 RHD 10M3 Compressed Garbage Compactor Truck

Ask Lasest Price
Brand Name :	CLW
Model Number :	CLW20210903
Certification :	ISO9001, CCC, BV, SGS
Price :	Negotiated
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	500 units per month
Delivery Time :	30-35 days after receiving the deposit

Add to Cart

Product Details
Company Profile

Sinotruk HOMAN 4x2 RHD 10M3 Compressed Garbage Compactor Truck

Sinotruk HOMAN 4x2 RHD 10M3 10CBM Compression Compressed Garbage Compactor Truck

Product Features

Product introduction:
Garbage compactor truck ,also called compactor garbage truck , garbage truck for sale , trash compactor , compression garbage truck , refuse truck , garbage collection vehicle, waste truck container garbage truck, compact garbage trucks, waste compactor trucks, compactor garbage truck for sale etc

Garbage compactor truck capacity from 3 cbm to 18cbm all available .

Chengli brand Garbage compactor truck advantage :
1 Dual operation both at the rear of compactor garbage truck and inside cabin , easy control
2 Famous brand hydraulic pump to drive hydraulic valve to keep garbage compactor truck safety
3 Cheap price , one year warranty
4 Garbage bin lifting system could design as customer’s requirement .
5 Lock system is operated by machinery hydraulic system can reduce second pollution mostly.

Chassis configuration:
The car uses Dongfeng new D9 row half 2315 cab, 250 frame, Cummins 180 horsepower / Yuchai 170 horsepower, National five-emission engines, 6/8 gearbox, 3.9 T Front bridge, 8T back bridge, 250MM double beam, 9.00 tyres, Air brake, Clutch booster, Air conditioning, Electronic windows, Central lock, Exhaust - assisted braking, Dryer, Break the air brake, ABS, With the direction of the original factory, good sight, beautiful appearance generous, Flexible and comfortable operation.

Upper configuration:
New ribless box, beautiful plane arc, effective compression volume 10-12 cubic meters, tail with flip feeding mechanism, electronic control manual double control system, cab and rear double control box, tail with 3 cm rubber seal strip, With sewage collection tank, large-capacity sewage tank, the box can be painted as required patterns and words.
Accessories: chassis certificate, chassis consistency certificate, vehicle certificate, warranty manual, service station catalogue, special invoice, tools, hydraulic pipe gasket.

Vehicle advantages:
Dongfeng high-end chassis configuration high 10-12 square compression volume, a car can be used for several sets, generally used for long-distance garbage transfer, word loading, high transfer efficiency, save fuel costs.

product Specification

Specification
Brand Name	SINOTRUK HOMAN
Overall Dimension	8500×2500×3000 mm(option)	Gross Vehicle Weight	16000 kg
Curb Weight	6095 kg	Loading Weight	6700 kg
Wheel Base	3815 mm(option)	Front / Rear Axle	2500/4800 kg
Cabin	Left Hand Driving, 2 Passengers Allowed, with Air Conditioner, Radio,
Engine horsepower	120HP, EUR II(option)
Max Driving Speed	90 km/h
Gear Box	5 Forward Gear, 1 Reverse Gear,
Tire	7.00R16, steel wire tire, 6pc with 1 spare tire
Garbage Bin	Capacity	7cbm or 8CBM(option))
	Material	4mm Carbon Steel for Garbage Bin Body
	Design	Whole unit with Leakage Proof Design
Ways of Loading	Rear Loading with optional Bucket Lifting System
Garbage Compact Ratio	1/3 - 1/4
Control System	One control Panel on the back, One Control system in back of Cabin
Dispensing System	1. Equipped with air-tight dustbin, hydraulic system and operating system.
	2. Automatic loading, compressing and discharging, all handled by 1 person
	3. Sewage water collection tank to avoid any pollution during handling.
	4. Large Pressure, Good Leakage Proof, Convenient Operation
	Dependable Security
	5. Electrical Control Panel for compacting system.
	6. Cycling time<14~18s
Remarks	1. Color is optional
	2. Customized LOGO painting as per customer request

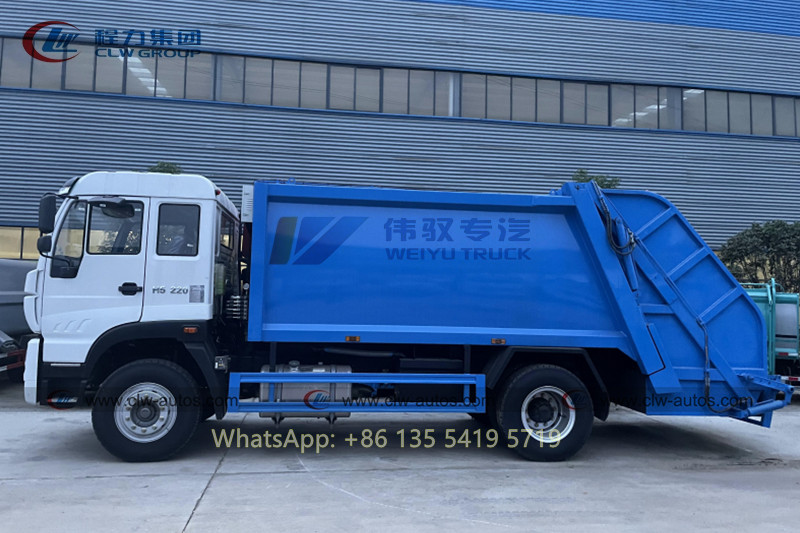

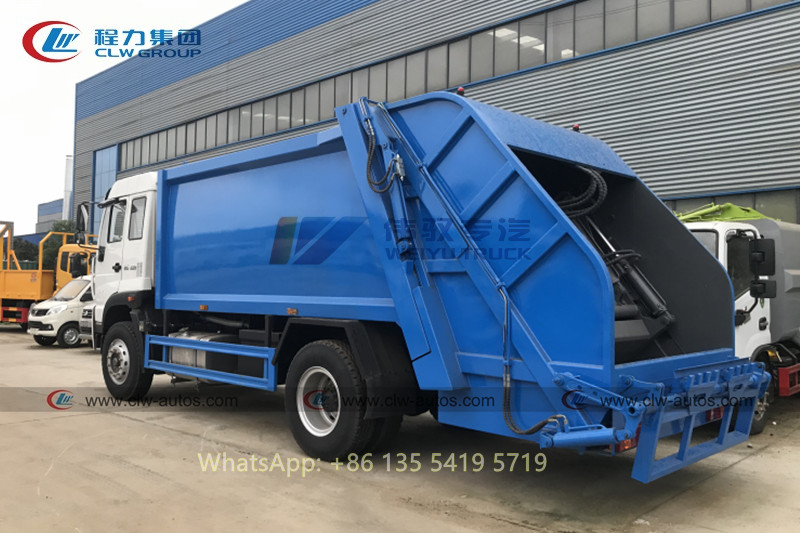

More pictures for Sinotruk HOMAN 4x2 RHD 10M3 10CBM Compression Compressed Garbage Compactor Truck:

Porducts details and drawings:

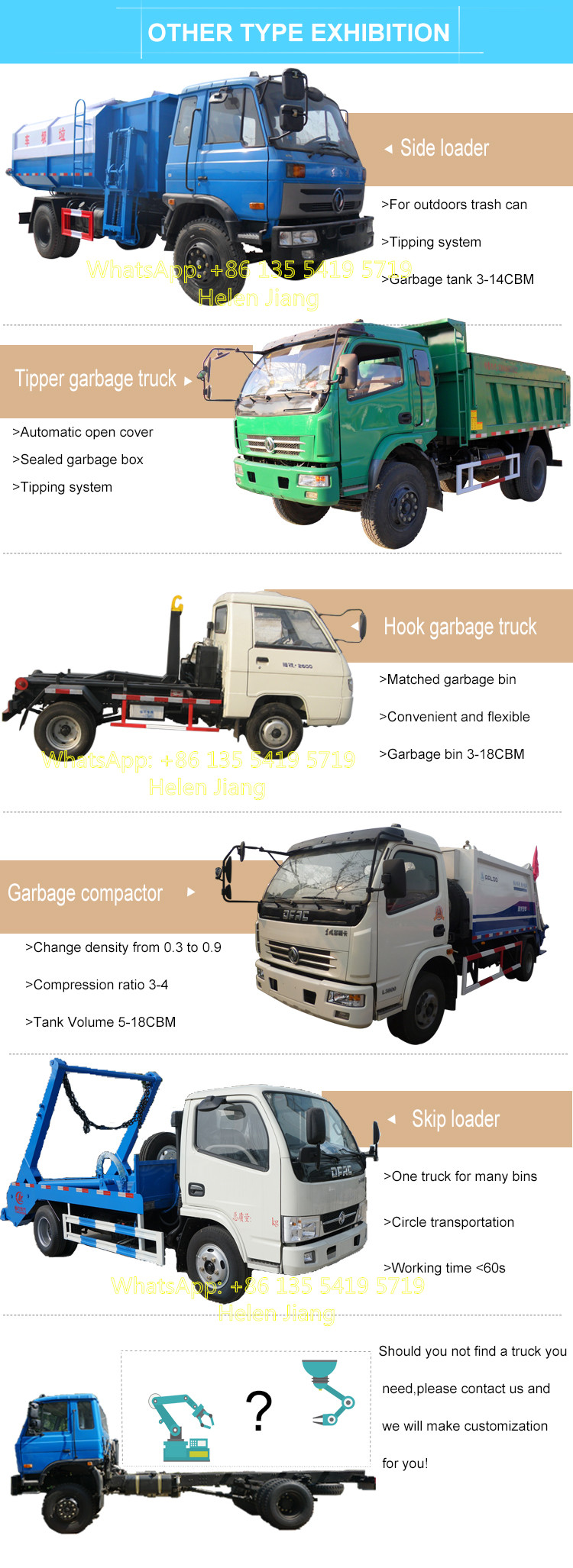

Other Types of Garbage trucks:

Warranty:

1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.

FAQ

Q: Can I buy a sample of your product for testing?

A. Yes, that's fine. Our MOQ is 1set.

Q: What's about the payment?

A: 40% deposit by T/T before order,balanced by T/T before delivery.

Q: How about quality of your factory product ?

A: Our product quality is ahead of other manufacturers in the industry. We have advanced production equipment ,skilled workers and perfect mangement quality. So the quality is under control. Our products are certificated by ISO 9001:2008,CCC and BV, and many trucks passed SGS inspection .

Q: How do you gurantee the quality of the product?

A: Don't worry, my dear client. Any one of you is very important to us. So we will do inspect all of the goods before shipment. And we had joined the trade credit insurance system. If the product received has quality problems, Alibaba will return the advance payment back to you.

Q: Why do you choose us?

A: We are self-produced and self-selling manufacturer and we have more than 15 years of production experience, our products have been sold all over the world.

Q: What about your after-sale service?
A: We offer 1 year after-sale service. We can supply the spare parts at factory price all the time.

Q: Can we visit your factory before purchasing?
A: We welcome you to visit our factory any time and we will show you our production line .
