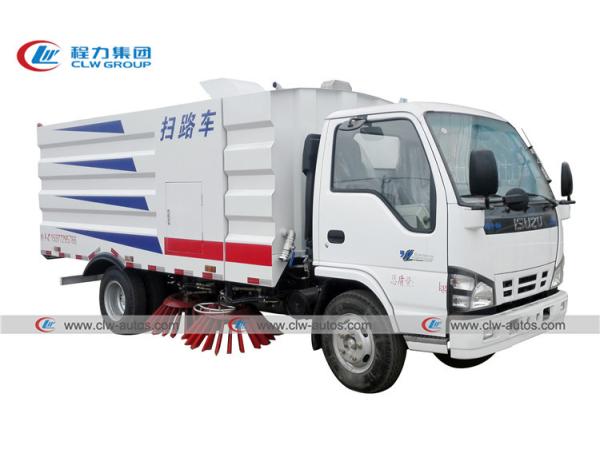

Small 5Ton ISUZU Vacuum Road Sweeper Truck

Product Description

ISUZU 5 Ton Road Sweeper Chassis Configuration

Configuration:

• ISUZU horsepower engine, 120HP Engine
• 6 Forward & 1 Reverse Gearbox,
• 1.8T front axle, 3.5T rear axle, 190 frame,
• 7.00R16 steel wire tires,
• Air brake, electric vehicle Window, central control, with air conditioning, ABS.

Sweeping Body Structure:

• Water tank volume: 1.5 cubic meters,
• garbage bin volume: 4 cubic meters;
• 4 sweep pans in the middle, independent three-speed speed regulation of sweep pans,
• JMC 77 HP auxiliary engine, Sanyo motor, Schneider control switch, Taiwan hydraulic valve or Hypress solenoid valve Group,
• Changyuan hydraulic oil pump, Xinxishan water pump, maintenance-free self-separating clutch, maintenance-free fan,
• Rear LED arrow light, manual pump emergency system, front sweeping brush arm rotating mechanism uses high-tech wear-resistant engineering spacer, no grease, Precision cold-formed seamless hydraulic oil pipe,
• Sweeping width: 2.8-3.2 meters, sweeping speed: 3-20km/h, maximum suction particle size: 120mm, maximum sweeping capacity: 50000m2/h.

Specifications of road sweeping truck

Hubei Weiyu Special Vehicles Co., Ltd is an important branch of CLW group with registered capital 100, 000, 000 RMB(14 millions US Dollars) and total capital 6, 000, 000, 000(840 millions US Dollars). Located in Suizhou city, hubei province, central China, the Hubei Chengli Special Automobile Co., Ltd is one of the largest manufacturers authorized by National Ministry of Industry and Information for production of 800 types of special purpose trucks and export Center of Trucks and Spare parts identified by Hubei Province Government, such as Water Tank Truck, Insulation Truck and Milk Truck, Sewage Suction Truck, Garbage Truck, Man lift Truck/Aerial Platform Truck, Truck with Crane, Fuel Truck/Trailers, Chemical Tanker Delivery Truck, Bulk Cement Truck, Concrete Mixer Truck, Fire Truck, Dump Truck, Van Truck/Refrigerated Truck, Wrecker/Tow Truck, Flatbed Truck/Low Bed, Tractor, LPG Tank/Truck/Trailer/Skid Station, Road Sweeper/Cleaning Truck, Ambulance Trucks, LED Advertising Trucks, RV/Camper Trucks, Food Truck/Vender Truck and all kinds of special Trailer applied in sanitation, construction, transportation, chemical, oil and gas, emergency rescue and so on. With leapfrog development in 16 years since 2004, now Hubei Chengli Special Automobile Co., Ltd has owned more than 70 professional workshops for different vehicles and 2 technical centers, more than 12, 600 staffs, in which more than 800 are R&D persons and more than 5000 are technical workers...

The "CLW" brand is honored as the "Hubei Well-kown Trademark", Hubei Chengli Special Automobile Co., Ltd is certificated by ISO9001-2015, ISO14001-2005, OHSAS18001, CCC, Automobile Energy Saving and Environment Protection, Pressure Vessels certificated by A2 C2 C3, ASME and ADR, more than 100 state owned patents for truck mounted sewage treatment system and fire truck. Long term cooperation established with Chinese truck chassis supplier, such as DONGFENG, FAW, SINOTRUK, FOTON, ISUZU, SHACMAN, JAC, JMC, CAMC and so on. Hubei Chengli Special Automobile Co., Ltd. Tops No. 1 in China for water bowser selling in 6 years and No. 1 in China for

Sanitation truck in 3 years; Top 4 in Hubei Private Manufacturing Companies and Top 500 of China private Companies.

Trucks from Hubei Chengli Special Automobile Co., Ltd have been sold to more than 29 provinces in China and more than 80 overseas countries and regions in Asia, Africa, South America, Middle East and so on, such as Russia, Mogolia, Philippine, Vietnam, Cambodia, Myanmar, Laos, Kazakhstan, uzbickstan, Kyrghyzstan, Tanzania, Zambia, Nigeria, Austrilia, Chile, Bolivia, Ethiopia, Sudan, Malaysia, Congo, El Salvador, Iraq, New Zealand, Chile, Bolivia, Argentina and so on.

Below are the major products:

Garbage truck

Water tank truck

Fuel tank truck/semi-trailer

Refrigerator truck

Truck mounted crane

Dump truck

Fecal/sewage suction truck

Special cleaning truck

Heavy duty truck crane

Stage truck

Concrete mixer truck

LPG storage tank/bobtail truck/semi-trailer/skid station

Bulk powder transportation truck/trailer

Bulk feed/paddy wheat truck

Road maintenance truck

High altitude truck

LED advertisement truck

Road sweeper truck/cleaning truck

Wrecker/Towing truck
