    Factory Price 13,000L China Dongfeng Hydraulic Arm System 13cbm Hook Lift Garbage Truck

    Ask Lasest Price
    Brand Name : CLW
    Model Number : CLW5107GBL
    Certification : CCC, ISO, BV, SGS
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 500Units/Month
    Delivery Time : 30-35 days
    • Product Details
    • Company Profile

    Factory Price 13,000L China Dongfeng Hydraulic Arm System 13cbm Hook Lift Garbage Truck

    Factory Price 13,000L China Dongfeng Hydraulic Arm System 13cbm Hook Lift Garbage Truck


    Product Description
    1. Garbage Bin with different size options of waste collection truck: 2cbm to 20cbm.
    2. Hydraulic Control Loading & Unloading System.
    3. Different shapes of roll on roll off waste truck bins such as trapzoid,boat-shape,square shape and so on and divided into above-ground and under-ground type.
    4. High-tensile steel chains: imported hydraulic oil cylinder and sealing material.
    5. Lifting oil cylinder: double oil cylinder under garbage box,so garbage box can be lifted and self-dumped.
    6. Double rear landing leg controlled by hydraulic multi-way valve to stablise truck.

    Product Specification

    UnitParameters
    Overall Dimension(L*W*H)mm7500*2470*3150
    Tank Cubagem313
    Entrance Widthmm2000
    Loading Capacitymt3-4
    Max Loading Masskg7945
    Gross Vehicle Weightkg15800
    Compressing Ratio°>=1:4
    Max Hydraulic PressureMpa19.6
    Loading Cycle Times<=30
    Discharging Times<=45
    Max Torsion/RevN*m/r/m900/1400;925/1400;970/1400
    Engine Model Cummins 190HP
    Emission Euro 2, or 3, or 4
    Fuel Type Diesel
    Max Driving SpeedKm/h95
    Chassis Model Option:Dongfeng,Isuzu,Hino,Sinotruk,JAC,FAW,Foton...
    Wheel Basemm4700
    Front/Rear Axlemm4500/9000
    Curb Weightkg7725

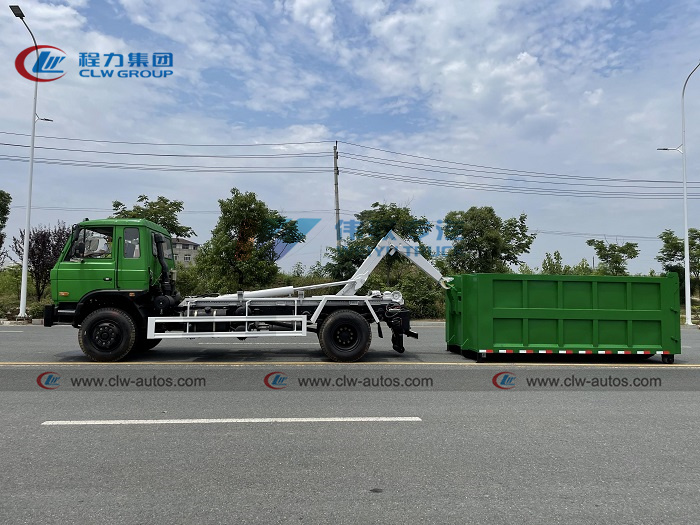

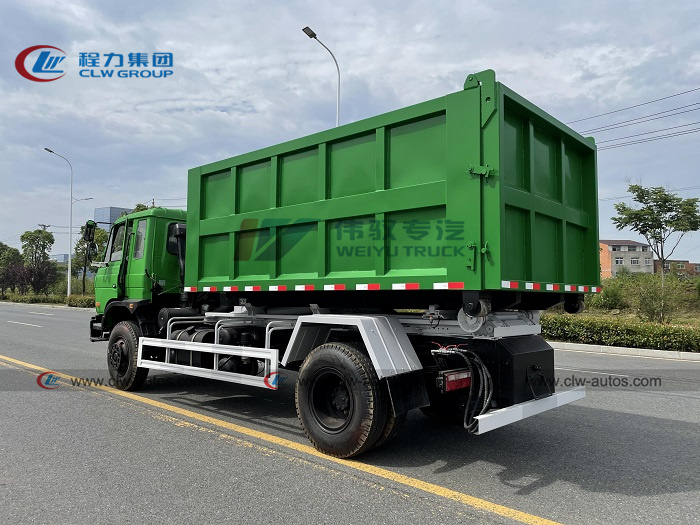

    Reference Photos


    Hydraulic Hook Arm System Structure


    Main Parts


    Different Types of Garbage Truck


    After-sales Service

    1. Provide English operation manual and Instruction videos.
    2. One year free warranty for major 3 components: engine, gearbox, axles; One set of easily worn spare parts of truck chassis for free; Spare parts supplied at factory price whenever needed.
    3. Aftersales service whenever needed. Our engineers will go to customer's country to assist the installation and operation if order QTY.is more than 10 units. Contact Lea for more details+86 155 2791 1810
    .


    FAQ

    Q1: What kinds of garbage truck I can order from your company?

    A: We can supply different sizes and types garbage trucks as client's request. Basically speaking, we can supply 5CBM to 20CBM type. Pls contact with us for more technical details and discussion.


    Q2: What is your production standard of garbage truck products?

    A: China GB local standard.


    Q3: Can we adopts International brand fuel pump for garbage truck?

    A: Sure, we already cooperated with many international brand supplier.


    Q4: What about warranty?
    A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.


    Q5: Where is your factory? How far from Shanghai to your factory?
    A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to Wuhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
