Brand Name : | CLW |
Model Number : | CLW5841 |
Certification : | CCC,SGS,BV |
Price : | US $46,098-67,540 |
Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability : | 500 UNITS/MONTH |
Delivery Time : | 30 days after receiving deposit |
Sinotruk HOWO 6X4 371hp Fire Rescue Water and Foam Tank Truck Fire
Fighting Truck Emergency Fire Engine Fire Pumper Trucks
Product descriptions
Fire fighting truck is a vehicle designed primarily for fire
fighting operations - to extinguish fire efficiently to prevent
fire spread,
reducing the loss caused by fire maximumly. Which is also called
fire water truck, fire fighting tanker, water tank fire truck,
fire appliance, fire fighting engine, fire-extinguishing water
truck, water tender, fire service truck, fire hydrant and fire
water
tanker.
Fire Truck, also called Fire Engine, Fire Rescue Truck, Fire
Fighting Truck, Firefighting Truck, Firefighting Apparatus Truck,
Firefighting Truck, Fire Vehicle, Fire Rescue Vehicle, Fire
Fighting Vehicle, Firefighting Vehicle, Firefighting Apparatus
Vehicle, Firefighting Vehicle.
It is a vehicle that equiped firefighting apparatus and customized
for use during firefighting operations. These trucks are highly
customized depending on their needs and the duty they would be
performing.
For the Firefighting Truck tank mediums, we have three types:
water, foam, dry powder. And for the tanks material, we have carbon
steel, stainless steel and PP material. And tank volume is from
3000L to 22000L.
1. HOWO 6X4 fire fighting truck is composed with truck body and cabin,cabin is two rows,which can allow 6 persons.The front part of truck body is equipment room,middle is water tank and foam tank,rear is pump room.
2) To ensure good performance of fire trucks,howo fire truck is equipped with middle and low pressure fire pump CB20.10/30.60 with flow rate at 60L/S and Chengdu Wester fire monitor PL48(PM160)or PS60W(SG160).
3) Fire trucks are widely used in factory, terminal, oil & gas
depot to insure emergency fire cases.
1. Fire fighting truck chassis Model: ISUZU,SINOTRUK, SHACMAN,
DONGFENG, FOTON, tec.
2. Engine Model: Dongfeng Cummins (260HP-375HP), Yuchai
(290HP-375HP), weichai(270HP-380HP).
3. Drive model: 4x2 , 6x4 , 8x4;
4. Engine: EuroII, III, IV, V, VI Emission standard;
5. Right/Left hand drive ;
6. Fire fighting truck type: water tank, water and foam
tank,water,foam and powder
Product Specifications
Chassis | ||||
Chassis model | SINOTRUK HOWO | |||
Cab | HW76, extended double cab, 3 seats, single berth, up/down and front/back adjustable steering wheel, with air conditioner. | |||
Driving Type | 6X4 Left hand driving (LHD) RHD for optional | |||
Max Speed (km/h) | 90 | |||
Overall dimension (mm) | 9980*2500*3700 | |||
GVW (kg) | 25000 | |||
Curb Weight (kg) | 10000 | |||
Wheelbase (mm) | 4600+1350 | |||
F/R track base (mm) | 2022/1830 | |||
F/R overhang (mm) | 1500/1670 | |||
Approach/Departure Angel | 19/26 | |||
Tire | 12.00R20, All steel radial tires, 10+1(spare tire) | |||
Clutch | Single plate φ430 diaphragm spring clutch | |||
Steering | Hydraulic steering with power assistance | |||
Gear box | HW19710, 10 forward & 2 reverse manual gearbox | |||
Bridge | Front axle | HF7 drum brake front axle, axle loading capacity is 7000kg | ||
Rear axle | HC16 Rated loading capacity: 16T | |||
Engine | Model | WD615.47 | ||
Brand | SINOTRUK | |||
Emission Standard | EURO 2/3 | |||
Fuel Type | Diesel | |||
Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | |||
Horsepower (hp) | 371 | |||
Exhaust (ml) | 11596 | |||
Braking system | Service Brake | Compressed air brake | ||
Park Brake | Spring energy | |||
Auxiliary brake | engine exhaust brake | |||
Electric system | 24v | |||
Upper Body | ||||
Liquid tanker | Volume | 10,000Liter Water Tank | ||
Material | Carbon steel plate, anti-rust treatment inside. | |||
Volume | 1,000Liter Foam Tank | |||
Material | Q304 stainless steel plate | |||
Fire fighting pump | Model | CB10/60 | ||
Pressure: | 1.0Mpa | |||
Flux: | Water 60L/S Foam 30L/S | |||
Suction depth | :≥ 7m | |||
Suction time | ≤35s | |||
Fire fighting nozzle | Model: | SP50 | ||
Range: | Water ≥ 55m Foam ≥ 50m | |||
working pressure | ≤1.0(Mpa) | |||
Horizontal rotation angle | 360 º | |||
Color | The whole vehicle is red for fire fighting, there are white in the middle of truck in accordance with the whole truck |

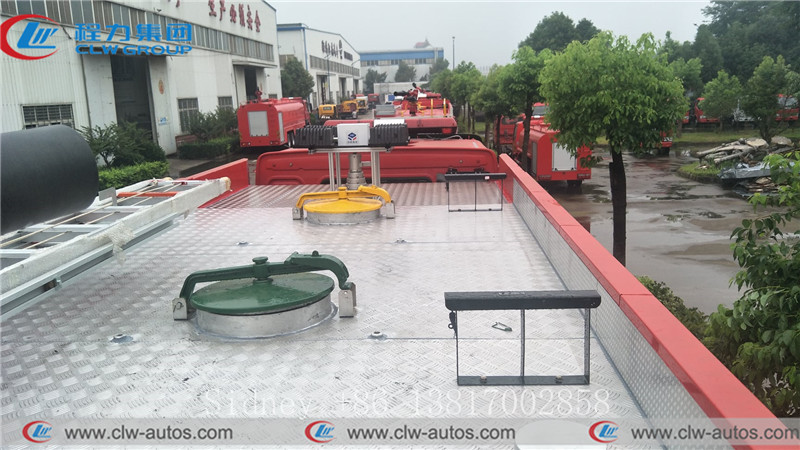

Reference photos
Successful cases
Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment
FAQ
Q1: What kinds of fire fighting truck I can order from your company?
A: There are various sizes and types of fire fighting trucks with
different functions,you can contact us and tell your request.We
will recommend you suitable product.
Q2: Have you supplied fire fighting trucks to any overseas companies?
A: Yes,with need of government project,we offered fire fighting
trucks to many Africa and south-east Asian,south-American
countries.
Q3: What about warranty?
A: Equipment warranty is 12 months from the date on which the
equipment is applied successfully into operation, or 13 months from
the date on which the equipment has been delivered, whichever comes
first.
Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory is based in Suizhou city, Hubei province, China. Our
overseas marketing office is in Wuhan city,Hubei Province.Wuhan is
about two hours' plane and four hours' high speed train from
Beijing,Shanghai or Guangzhou city,welcome to visit us for factory
inspection.
