Howo 6x4 20T Roll Off Hydraulic Hooklift Garbage Collection Truck

HOWO 6x4 20Tons Hydraulic Roll off Pull Arm Hook Lifting Garbage Collection Truck

Product Description

1. Garbage Bin with different size options of waste collection truck: 2cbm to 18cbm.
2. Hydraulic Control Loading & Unloading System.
3. Different shapes of roll on roll off waste truck bins such as trapzoid,boat-shape,square shape and so on and divided into above-ground and under-ground type.
4. High-tensile steel chains: imported hydraulic oil cylinder and sealing material.
5. Lifting oil cylinder: double oil cylinder under garbage box,so garbage box can be lifted and self-dumped.
6. Double rear landing leg controlled by hydraulic multi-way valve to stablise truck.

The garbage truck is widely used in sanitation & municipal, industrial enterprises and residential area. The truck has several garbage tanks to avoid pollution during transporting process. The modified part can be separated from chassis, so it is easy to maintain and the mobility & readability of the truck are kept.

If you have special demand of garbage truck, please contact with us. We may design and modify it for you. We also can add power steering and A/C for you.

product Specification

Cabin	HW76 Standard Cab, Left hand drive, one sleeper. A/C With two bunks, 70° hydraulically tillable to the front as attached photo for ref. (picture just for reference)
Vehicle Main Dimensions	(L x W x H)mm		10120x2500x3370
	Wheel base (mm)		4325+1350
	Wheel track (front/rear) (mm)		2022/1830
	Approach/Departure angle(°)		16/23
Weight in KGS	Tare Weight			12950
	Loading Capacity			15000
	Front axles loading capacity			HF9 1x8000
	Rear axles loading capacity			2*ST16 1x16000
Max. driving speed(km/h)					75
Engine		Brand		Sinotruk
		Model		WD615.69
		Type		4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
		Horse Power(HP)		336HP
		Emission standard		Euro
Gearbox		HW19710, 10 Forwards gear & 2 reverse
Clutch		Reinforced diaphragm clutch, diameter 430mm
Steering Gear		ZF 8098, power steering, hydraulic steering with power assistance
Fuel tank (L)		300
Tire		12R22.5 radial steel tire 10 Pieces with one spare
Brakes		Service brake: dual circuit compressed air brake Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake
Paint		Anti-corrasive
Garbage box body		Box size: 600023001500mm Floor thickness: 8mm; Wall side thickness: 4mm. Reinforced with strengthen cross. A complete set of hydraulic system: Chinese famous brand. Garbage box with 2 pieces tarpaulins, 14 hooks to attach tarpaulins

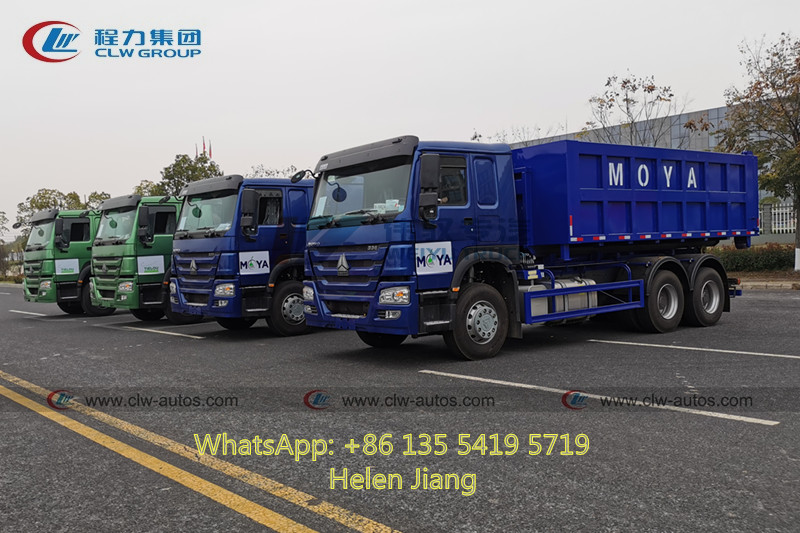

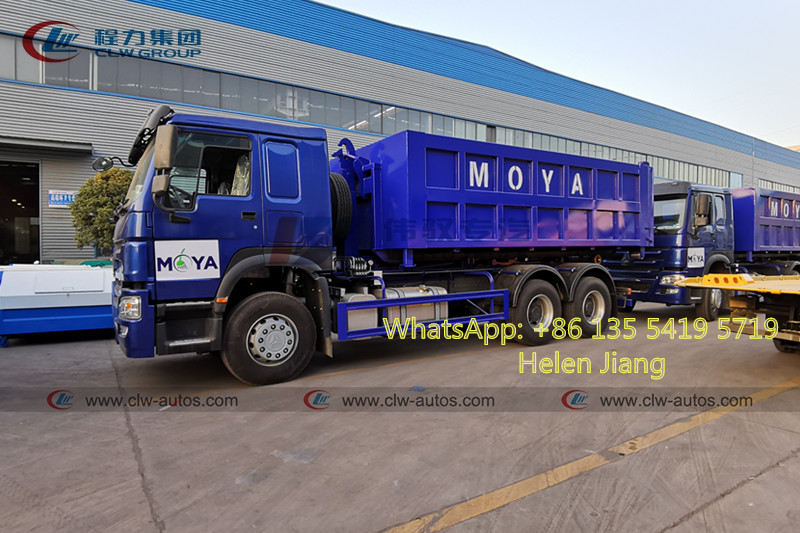

More Pictures for Sinotruk HOWO 6x4 20Tons Hydraulic Roll off Pull Arm Hook Lifting Garbage Collection Truck

More detailed pictures for Hook Lifting Garbage Truck:

Warranty

1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.

FAQ

Q: Can I buy a sample of your product for testing?

A. Yes, that's fine. Our MOQ is 1set.

Q: What's about the payment?

A: 40% deposit by T/T before order,balanced by T/T before delivery.

Q: How about quality of your factory product ?

A: Our product quality is ahead of other manufacturers in the industry. We have advanced production equipment ,skilled workers and perfect mangement quality. So the quality is under control. Our products are certificated by ISO 9001:2008,CCC and BV, and many trucks passed SGS inspection .

Q: How do you gurantee the quality of the product?

A: Don't worry, my dear client. Any one of you is very important to us. So we will do inspect all of the goods before shipment. And we had joined the trade credit insurance system. If the product received has quality problems, Alibaba will return the advance payment back to you.

Q: Why do you choose us?

A: We are self-produced and self-selling manufacturer and we have more than 15 years of production experience, our products have been sold all over the world.

Q: What about your after-sale service?
A: We offer 1 year after-sale service. We can supply the spare parts at factory price all the time.

Q: Can we visit your factory before purchasing?
A: We welcome you to visit our factory any time and we will show you our production line .
