Sinotruk Howo 4x2 RHD 6M3 8M3 Rear Loader Compression Garbage Truck

Ask Lasest Price
Brand Name :	CLW
Model Number :	CLW20210803
Certification :	ISO9001, CCC, BV, SGS
Price :	Negotiated
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	500 units per month
Delivery Time :	30-35 days after receiving the deposit

Add to Cart

Product Details
Company Profile

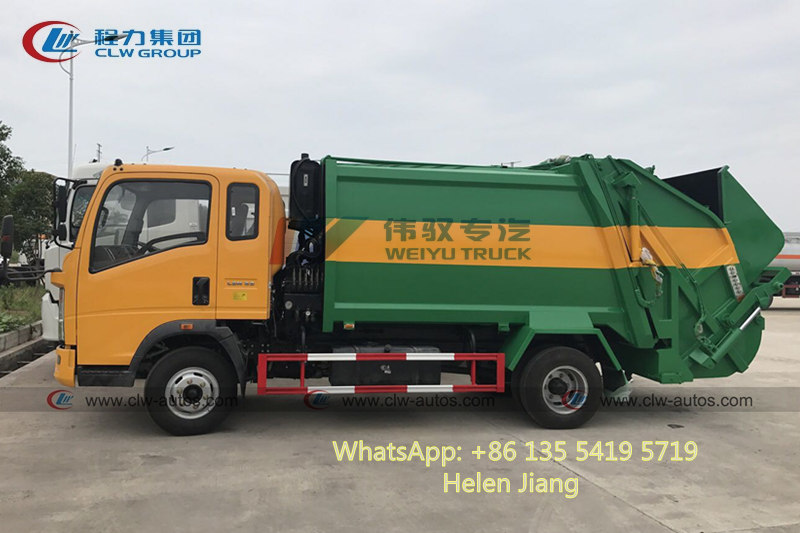

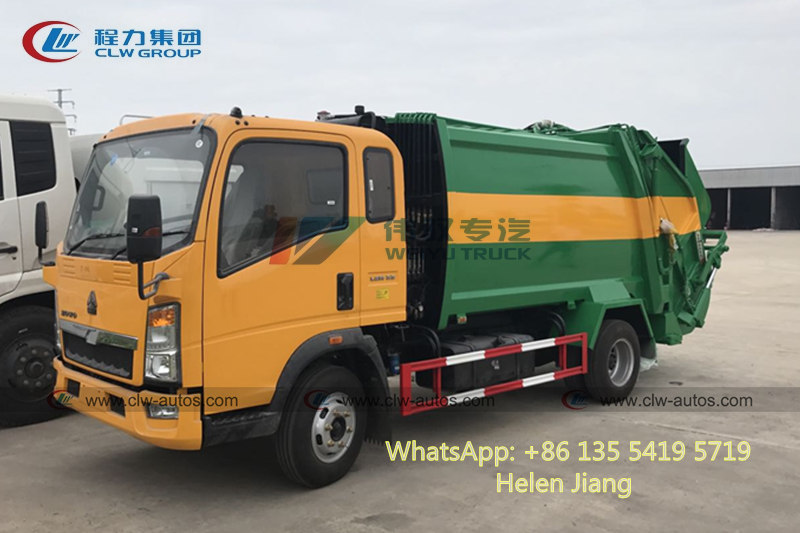

Sinotruk Howo 4x2 RHD 6M3 8M3 Rear Loader Compression Garbage Truck

Sinotruk Howo 4x2 RHD 6M3 8M3 Compression Garbage Compactor Truck Rear Load Refuse Truck

Product Description

Garbage trucks are widely used in sanitation, municipal, factory and mining enterprises, and residential areas where have a lot of garbage. Garbage trucks are classified into compressed garbage trucks, swing arm type, dump type, sealed type, docking type, hook type arm type, and pull arm type garbage truck. Garbage trucks can carry multiple compartments in one vehicle, which can effectively prevent secondary pollution during the loading and unloading process. The modified part is separable from the original car chassis, which is easy to maintain and maintain the mobility and driving performance of the original car. Customers who have special requirements for garbage trucks please contact with us at any time. We can produce the trucks according to your requirements.

product Specification

Cabin	Driving type 4x2
	2080 Standard cab, with three seats, with A/C. Right Hand Driven. 70°hydraulically tillable to the front as attached photo for ref.
Vehicle Main Dimensions	Overall dimensions (L x W x H)mm		8000x2450x3100
	Wheel base (mm)		4500
	Wheel track (front/rear) (mm)		1798/1764
	Approach/Departure angle(°)		27/20
Weight in KGS	Tare Weight		6400
	Loading Capacity		5000
	Front axles loading capacity		1x3200
	Rear axles loading capacity		1x8200
Max. driving speed(km/h)			90
Engine	Brand		YUCHAI
	Model		YC4E140-20
	Type		4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling
	Horse Power(HP)		140 HP
	Emission standard		Euro Ⅱ
Gearbox	WLY6T51 , 6 forwards &1 reverse
Clutch	Diaphragm spring clutch
Steering Gear	Power steering
Fuel tank (L)	230 L
Tire	8.25R20 All radial tires with one spare, 7 pieces
Compression garbage box body system
Body Volume		8 CBM
Cycle Time of Filling(S)		≤40
Lifting Time of Filler(S)		8-10
Time of Discharging		≤60
Working Pressure(MPA)		16
Composed by hermetic garbage tank, hydraulic system, operation system. The entire truck is hermetic, can automatically compress and dump the garbage .and the sewage generated in the process of the compression all go into the sewage tank.

Warranty

1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.

FAQ

Q: Can I buy a sample of your product for testing?

A. Yes, that's fine. Our MOQ is 1set.

Q: What's about the payment?

A: 40% deposit by T/T before order,balanced by T/T before delivery.

Q: How about quality of your factory product ?

A: Our product quality is ahead of other manufacturers in the industry. We have advanced production equipment ,skilled workers and perfect mangement quality. So the quality is under control. Our products are certificated by ISO 9001:2008,CCC and BV, and many trucks passed SGS inspection .

Q: How do you gurantee the quality of the product?

A: Don't worry, my dear client. Any one of you is very important to us. So we will do inspect all of the goods before shipment. And we had joined the trade credit insurance system. If the product received has quality problems, Alibaba will return the advance payment back to you.

Q: Why do you choose us?

A: We are self-produced and self-selling manufacturer and we have more than 15 years of production experience, our products have been sold all over the world.

Q: What about your after-sale service?
A: We offer 1 year after-sale service. We can supply the spare parts at factory price all the time.

Q: Can we visit your factory before purchasing?
A: We welcome you to visit our factory any time and we will show you our production line .
