Brand Name : | CLW |
Model Number : | CLW20210727 |
Certification : | CCC, ISO9001, BV, SGS |
Price : | Negotiated |
Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability : | 500 units per month |
Delivery Time : | 35-40 working days |
4*2 Vacuum Road Sweeper Truck Street Cleaning Vehicle with FAW truck
Features
1. Four sweeper brush and sucker for sweeping combination with
excellent sweeping ability
2. each side of the broom or brush can work at the same time, or
work independently on each side
3. cleaning device mechanism is simple and reliable, which is hard
to damage;
4. all stainless steel dust bins, water tanks,
5. hydraulic system core components are all imported;
6. cleaning system powered by auxiliary engine, which do not
interfere with vehicle power.
Road Sweeper (sweeper truck) is one of the sanitation equipments.
It is a new type of high-efficiency sweeping equipment integrating
road sweeping, garbage recycling and transportation. It can be
widely used in road highways, municipal and airport roads, urban
residential areas, parks and other roads. Pavement sweepers not
only clean trash, but also dust and purify the air medium on the
road, which not only ensures the beauty of the road, maintains the
sanitation of the environment, but also maintains the good working
conditions of the road surface, and reduces and prevents traffic
accidents. The occurrence and further extend the life of the road.
It has become a trend to use pavement sweepers for road maintenance
in China.
The road sweeper is a special sanitation vehicle equipped with a
sweeping brush and other cleaning systems. It is mainly used for
sweeping operations in large and medium-sized urban sanitation
departments. Road sweepers have greatly liberated the work
intensity of sanitation workers, increased work efficiency, and
reduced secondary pollution such as dust.
Specification for Road Sweeper ttruck:
Condition | New condition/Left hand drive/4x2 | ||||
Chassis | Curb weight(kg) | 10520 | |||
Wheelbase(mm) | 4500 | ||||
Dimensions(mm) | 7880*2470*3150 | ||||
Overhang (front/rear) (mm) | 1430/1950 | ||||
Wheel track (front/rear) (mm) | 1880/1800 | ||||
Approach/Departure angle(°) | 20/10 | ||||
Axle Load(kg) | 6000/10000 | ||||
Max. driving speed(km/h) | 90 | ||||
Brand | Japanese brand | ||||
Model | DFL1160 | ||||
Tire | Number | 6pcs with one spare tire | |||
Specifications | 9.00-20 | ||||
Clutch | Reinforced diaphragm clutch | ||||
Gear box | Manual type, 6 Forwards & 1 Reverse | ||||
Cab | It can accommodate three people | ||||
Engine | Model | 4HK1-TCG40 | |||
Displacement(ml) | 5900 | ||||
Power(kw)/Horsepower(HP) | 125/190 | ||||
Emission standard | Euro 4 | ||||
Brakes | Service brake: dual circuit compressed air brake Parking
brake:(emergency brake): spring energy, compressed air operating on
rear wheels Auxiliary brake: engine exhaust valve brake | ||||
Steering Gear | Power steering, hydraulic steering with power assistance | ||||
Upper | |||||
Tank | Garbage tank | Tank material | Stainless steel 304 | ||
Tank volume(cbm) | 8.0cbm | ||||
Water tank | Tank material | Stainless steel 304 | |||
Tank volume(cbm) | 4.0cbm | ||||
Auxiliary engine | Model | Dongfeng Cummins(Famous brand) | |||
Power(kw) | 100kw | ||||
Brush | Quantity(pc) | 4 pcs | |||
Working area(m) | 3.0-3.5m | ||||
Remarks | 1, With water spray-bar 2, Rear vacuum cleaner 3, Blower 4, Color is optional | ||||
Optional | 1, Front and rear water spray-bar 2, Visual imaging system 3, Front hydraulic cleaning brush |
Road sweeper structure parameters | ||||
Dust tank volume | 4500L | Water tank volume | 1000L | |
Sweep width | 3000m | Cleaning speed | 3-20km/h | |
Cleaning ability | 9000-60000 m2/h | Cleaning efficiency | 98% | |
Maximum suction particle | 120mm | Min. clearance of suction nozzle | 200mm | |
Unloading angle | 45° | Unloading height | 970mm | |
Color and Logo | Optional | |||
Standard configuration | Chassis,sub frame,body,4 sweeping brushes, stainless steel vacuum tank, water tank,5T fan, auxiliary engine, electromagnetic control valve, suction cup, sprinkler system, hydraulic system and electrical system. | |||
Selective configuration | surveillance system,rolling brush. |

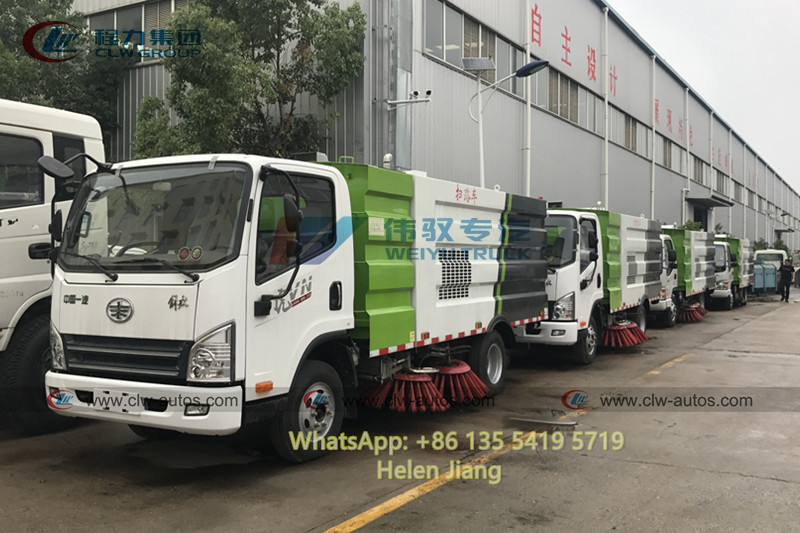

More pictures for Road Sweeper Truck:
ChengLi Special Automobile Corporation Limited, The CLW group, which was appointed by the Development and Reform Committee of China. ChengLi is a professional company who deal in different kinds of special vehicles, trailers and construction machinery.
![]() |
