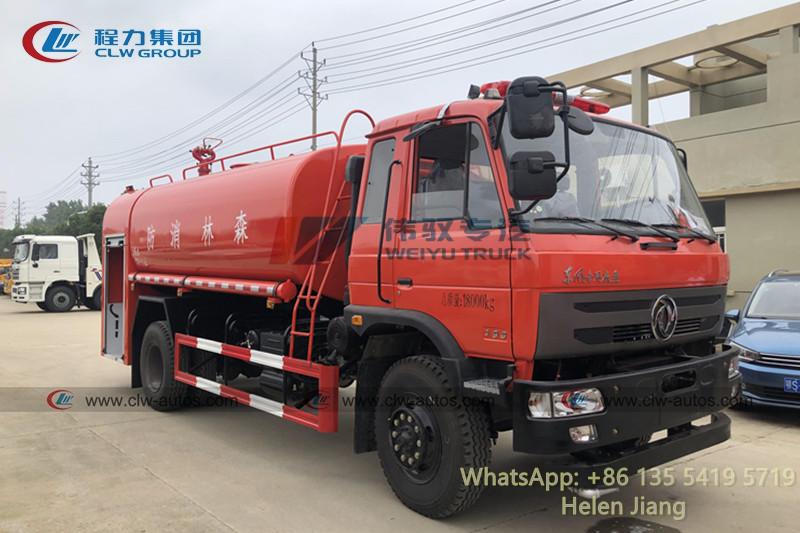

Dongfeng 4x2 4x4 190HP 12000L Forest Fire Fighting Truck

Ask Lasest Price
Brand Name :	CLW
Model Number :	CLW20210727
Certification :	CCC, ISO9001, BV, SGS
Price :	Negotiated
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	500 units per Month
Delivery Time :	30 working days

Add to Cart

Product Details
Company Profile

Dongfeng 4x2 4x4 190HP 12000L Forest Fire Fighting Truck

Dongfeng 4X2 4X4 190HP 12000L 12Tons Forest fire Extinguisher Rescue Fire Fighting Truck

Product Description

Fire sprinkler is also known as fire sprinkler, forest fire truck, multi-function fire truck, multi-purpose sprinkler, airport fire sprinkler, street, town and village fire sprinkler function, is a combination of fire truck and sprinkler. The dual-purpose vehicle is between the fire truck and the sprinkler. It has the integrated purpose of fire fighting and sprinkling. Compared with the fire truck, although it lacks the equipment box, it has the same spray range as the fire truck and has the same fire fighting function.

Forest fire trucks are the main firefighting equipment used by forestry, forest farms, forestry fire prevention offices, and forestry firefighting to extinguish fires. They can be divided into forest water tank fire trucks, forest rescue fire trucks, and forest fire fighting tool vehicles.

- According to chassis drive type, there are 4X2 or 6-wheel fire fighting truck, 6X4 or 10-wheel fire fighting truck, 8X4 12-wheel fire fighting truck and off-road type 4X4, 6X6 fire fighting truck for military use.

- According to chassis brand, there are ISUZU fire fighting truck, Dongfeng fire fighting truck, Foton fire fighting truck, FAW fight fighting truck, Shacman fire fighting truck, sinotruk fire fighting truck, Mercedes fire fighting truck, MAN fire fighting truck,Scania fire fighting truck and so on.

Features:

1. fire truck Main equipped:
1. fire truck chassis constitute cab, engine, gear box, steering wheel,beam,tyre,axles,etc.
2. Fire truck upper body with water/foam tank, fire pump,fire monitor,pipe,etc.
3. fire truck with Water fire fighting tank and foam fire fighting tank .or water fire fighting tank.
4. fire truck with fire pump is normal pressure or middle-low pressure, made in China or imported.
5. fire truck with fire monitor is controlled by Manual or Electric.

2. fire truck series:
fire turck capacity : 2000L- 25000L
fire truck drive type: 4x2,4x4,6x4, 6x6, 8x4
fire truck tank material: carbon steel, stainless steel, PE.
fire truck hand drive type: left hand drive , right hand drive

Chassis Parameter
Chassis Model:	EQ1108
Overall Dimension: (mm)	811525003300mm
Fuel Type:	Diesel
Drive Type:	4X2, Left Hand Drive /Right Hand Driving
Tyre Size:	9.00-20/9.00R20/10.00-20/10.00R20
Tyre Quantity:	6, (front 2, rear 4)
Total Mass:(kg)	14900
Rated loading capacity:(kg)	6000
Front/Rear Suspension: (mm)	1205/1895
Approach/Departure(°):	25/18
Wheel Base(mm):	3950/4200/4500/4700
Maximum driving speed	85km/h
Driver's Cab	all steel frame welded structure Cab,single row ,The cab is equipped with PTO control lights, 100W lights, LED lights, sirens, marker lights switch and rear lights etc
Gearbox	Manual, 6 forwarder with 1 reverse
Front Axle	Loading 3,600kg
Rear Axles	Loading 9,000kg
Engine
Engine Model:	Dongfeng Cummins brand : B170/190/210-33 , 6-cylinder in-line
Power:	170/190/210 HP	Fuel type	diesel
Displacement	5900ml	Emission standard	Euro 3
Fire pump
Model	/	CB10/40,Normal pressure pump
Pressure	Mpa	≥1.0
Max suction height	m	7
Flux	L/S	40
Rated speed	r/min	3000
Time of drawing water (s)	s	≤35
Input diameter	mm	125
Outlet diameter	mm	2xΦ75
Fire monitor
Model	/	PL32
Fire fighting nozzle range	Water (m)	≥50
	Foam(m)	≥45
Flux	L/S	32
Rated Working pressure	Mpa	1.0
Rotation angle	(°)	360
Tank
Water tanker	3,000 liters ,carbon steel
Foam tanker	2,000 liter ,carbon steel
Equipment List
Name		UNIT	QUANTITY
1.water suction hose, 4 m		piece	2
2.water filter		piece	1
3.dividing breeching		piece	1
4.Fire belt 13#, 80		piece	6
5.Fire belt 13#, 65		piece	4
6.Siamese		piece	4
7.Waist ax		piece	2
8.Hose bandage		piece	1
9.Hose bridge		piece	1
10.Hose hook		piece	1
11.Fire hydrant wrench on the ground		piece	1
12.Fire hydrant wrench underground		piece	1
13.Suction pipe wrench		piece	1
14.Dry powder fire extinguisher, 3 KG		piece	1
15.Fire bucket		piece	1
16.nozzle		piece	1
17.Multifunctional water gun		piece	1
18.Fire axe		piece	1
19.Fire spade		piece	1
20.Iron collar		piece	1
21.Fire picks		piece	1
22.adapter		piece	1
23.The accessory tools		set	1

More Pictures for Reference:

Successful Cases:

Delivery for Fire fighting truck:

Warranty

1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.

FAQ

Q: Can I buy a sample of your product for testing?

A. Yes, that's fine. Our MOQ is 1set.

Q: What's about the payment?

A: 40% deposit by T/T before order,balanced by T/T before delivery.

Q: How about quality of your factory product ?

A: Our product quality is ahead of other manufacturers in the industry. We have advanced production equipment ,skilled workers and perfect mangement quality. So the quality is under control. Our products are certificated by ISO 9001:2008,CCC and BV, and many trucks passed SGS inspection .

Q: How do you gurantee the quality of the product?

A: Don't worry, my dear client. Any one of you is very important to us. So we will do inspect all of the goods before shipment. And we had joined the trade credit insurance system. If the product received has quality problems, Alibaba will return the advance payment back to you.

Q: Why do you choose us?

A: We are self-produced and self-selling manufacturer and we have more than 15 years of production experience, our products have been sold all over the world.

Q: What about your after-sale service?
A: We offer 1 year after-sale service. We can supply the spare parts at factory price all the time.

Q: Can we visit your factory before purchasing?
A: We welcome you to visit our factory any time and we will show you our production line .
