45CBM Carbon Steel Q235 Jet A1 Tank Semi Trailer With Epoxy Coated Inside

Ask Lasest Price
Brand Name :	CLW
Model Number :	CLW2021060726
Certification :	ISO9001, CCC, BV, SGS
Price :	Negotiated
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	500 units per month
Delivery Time :	30-35 days after receiving the deposit

Add to Cart

Product Details
Company Profile

45CBM Carbon Steel Q235 Jet A1 Tank Semi Trailer With Epoxy Coated Inside

Tri Axle 45000L 45CBM Oil Tanker Carbon Steel Jet A1 Transport Tank Semi Trailer With Epoxy Coated Inside

Description:
** Tank material could be carbon steel, stainless steel, alluminum...
** It can be divided into many compartments to load different types of fuels.
** BPW axles, JOST kingpin, JOST landing gears, Air suspension, ABS.
** Heat preservation of rock cotton or polyurethane foaming, Heating system.
** Bottom loading system can be equipped: API connections, over-fill detection system , vapor recovery vent, vapor recovery adaptors & dust cap, pneumatic control, bottom emergent valve...
** Tube or tubeless tyres, off-road single tyre for bad roads.

1. Purpose: It used for transporting all kinds of chemical liquid such as diesel and gasoline etc.
2. Main parts: Axle, Bottom valve, pipeline and liquid line.
3. Tank material for optional: Carbon steel, Stainless steel 304, Stainless steel 316, Stainless steel 316L and Aluminium alloyetc.
4. Available tank volume: 38CBM - 60CBM/2 Axles/3 Axles/4 Axles
5. Axle brand: China famous brand FUWA/China brand L1/Germany brand BPW.

product Specification

Main Dimensions
Overall Length	Approx.11800mm
Overall Width	2500mm
Overall Height	Approx.3650mm
Tare Weight	Approximate 10500KGS
Loading Capacity	45m3
Tank Body
Shape	Mono block Cylinder
Total Volume(m³)	45CBM
Tanker Body Material	5mm Carbon Steel Q235
End plate	6mm Carbon Steel Q235
Lifting Ladder	Including Top walkway and backside steel material
Manhole cover	4 sets Aluminum alloy API manhole cover , ∮500mm , with breather valves and anti-Spillage valves

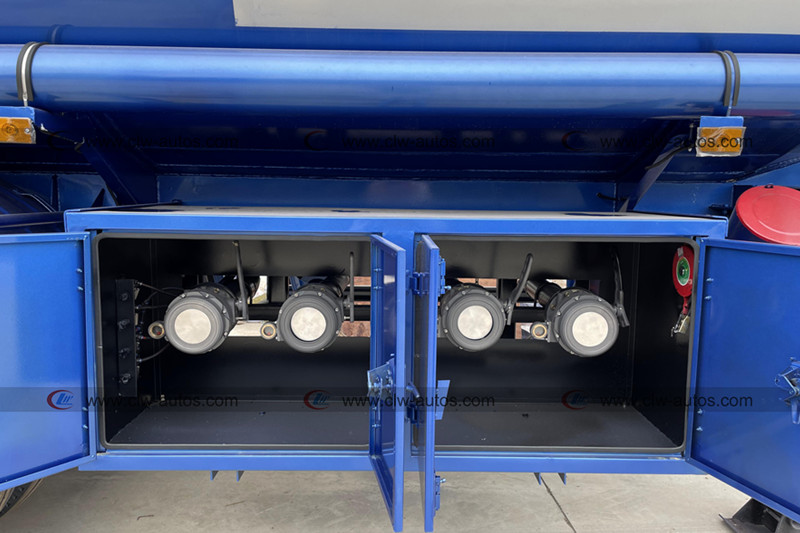

Bottom Valve	4 sets, DN100 Pneumatic Bottom Valve, Pneumatic control for each compartment
Discharging valve	4 sets DN100 API discharging valves
No.of Compartment	No. Of 4
Discharging Pipe	4”rubber hose
Chassis
Main Beams	Special design I beam, Steel Saddle support 8 No’s each side.
Axle	3 axles
Axle	BPW brand 13 Ton
Landing Gear	JOST brand
King Pin	JOST Brand 2’’ or 3.5” bolt-in king pin;interchangeable.
Suspension	Full set of heavy duty leaf spring type
Pneumatic Braking System	WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks.
Tire	385/65R22.5 tubeless Single Tri-angle Brand tire with one spare tire, 7 pieces
TOTAL standard Lighting system	1. Electrical wires: Placed in leak tight sheathes,neither bare wire nor split sheathes 2. Back lights:Inserted inside rear bumpers and protected. 3. Stop light:Additional LED stop lighting. 4. Lighting repeaters:Turn,reverse and stop lights must be repeated on top left and right sides. 5. Indicator: In the rear side.
Other TOTAL Design and parts	1. Dust Board to Cover the Tires 2. Rear Ladder to access the top of the tanker. Well secured,with angle,not vertical,linked to mechanism for automatic handrail lifting. 3. Walkway with fold-able handrail. (air operated) Tool Box Double Spare Tire Carrier (Winch Type). Anti-skid design on the whole available surface 2 No’s of fire extinguisher holder. With 2 No’s 9KG extinguisher. Drip collecting system(slope-by directing liquid to a on/off tap) Earthing plots(Qty 4, front left/right+back left/right,in brass) A yellow, reflective safety line 5cm wide shall be placed along both side of tank shell With ABS System Epoxy coated inside Tanker Aluminum Alloy Pipeline suitable for transport JET A1

Warranty

1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.

Our service

Before purchasing:

Quick reply on customers' inquiry;
Professional suggestion on truck choice according to different countries.
Details quotation with spec.and reasonable price.
Welcome to visit our company before purchasing.

After purchasing:

Production pictures and video updated every week.
Customer can visit factory after truck completion or arrange third party inspection.

After-sales service:
1- English Operation Video
2- Free operation and technical train at factory but not include accommodation
3- Spare parts supplied at factory price whenever needed.
4- Engineers can be sent to your country and offer local engineering support and train.
