    Sinotruk Howo 6x4 8M3 10M3 Road Construction Asphalt Paving Truck

    Ask Lasest Price
    Brand Name : CLW
    Model Number : CLW20210726
    Certification : ISO9001, CCC, BV, SGS
    Price : Negotiated
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 500 units per month
    Delivery Time : 30-35 days after receiving the deposit
    • Product Details
    • Company Profile

    Sinotruk Howo 6x4 8M3 10M3 Road Construction Asphalt Paving Truck

    Sinotruk HOWO 6x4 10 wheels Sinotruk 8 Cbm Road Construction Paving Bitumen Truck 10CBM Asphalt Distributor Truck



    Description of the asphalt distributor truck

    Chassis brand: Dongfeng , SINOTRUK HOWO, JAC, Beiben etc
    Driving type: left hand drive, right hand drive
    Axle: 4x2, 6x4 , 6x2, 8x4
    Tank volume: 3000 liters, 5000 liters, 6000 liters, 8000 liters, 10000 liters etc


    Application of the asphalt distributor truck

    It's widely used in the road construction. Can spay asphalt to the road very fast and uniform


    SINOTRUK HOWO 6x4 16m3 asphalt spraying truck
    ChassisZZ1257
    ColorRed ,White, Yellow or optional
    Drive type6x4,left hand drive
    Dimensions
    Wheel base4600+1350mm
    Overall Dimension10200x2500x3450mm
    Tank volume16m3
    Weights
    Payload weight16000kg
    Curb weight16000kg
    Front /Rear tread2022/1830/1830mm
    Front/rear overhang1500/2750mm
    Approach/Departure angle16/13(°)
    Engine
    Engine modelWD615.87 ,Euro 2
    Engine horsepower290HP
    Engine manufacturerSINOTRUK Group
    Displacement9726L
    Drive Line
    Cluth descriptionDry single plate, hydraulic control booster, mechanical operation
    TransmissionHW19710/10 forwarder,2 reverse gear,
    Manual operation
    Braking systemService brakeair brake
    Axles
    Front Axle-ModelHF7, 7 ton
    Rear Axle(drive axle)-ModelDouble ST16, 16 ton x 2
    Tire specification12.00R22.5, 10 tires+1 spare tire
    Special function of asphalt distribution truck
    Asphalt tankMaterial:4mm steel plate.120mm insulation layer, stainless steel outside .it can prevent the heating losing
    Tanker volume16m3,one φ440mm manhole
    Thermal asphalt160-180 centigrade
    Asphalt pumpModelQGB950
    Flow57m3/h
    Rated speed583rpm/min
    Resolve pressure0.8MPA
    Hydraulic pumpCBQ563-L
    Control methodSemi intelligence control

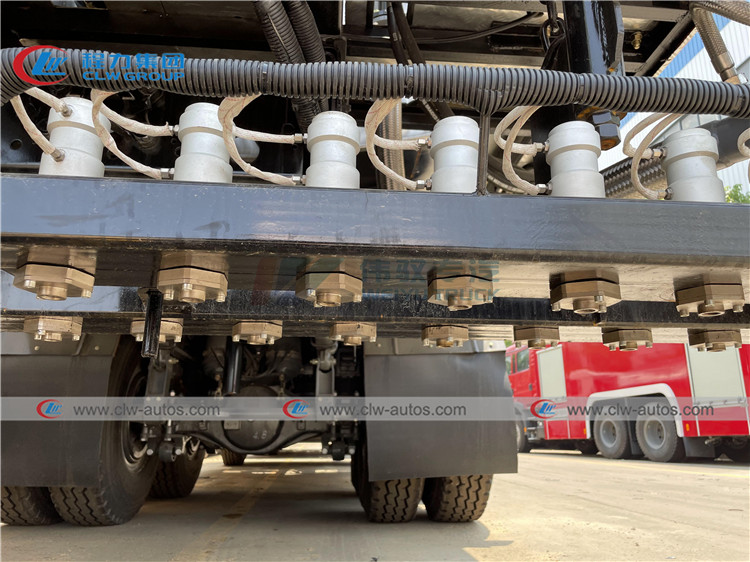

    Spray width6m
    Asphalt intelligent nozzle48units
    Heating methodHeat conducting oil automatic heating
    BurnerG20, imported from Italy
    Heat conducting oil pump40-25-160


    Warranty


    1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
    2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
    3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.


    FAQ


    Q: Can I buy a sample of your product for testing?

    A. Yes, that's fine. Our MOQ is 1set.


    Q: What's about the payment?

    A: 40% deposit by T/T before order,balanced by T/T before delivery.


    Q: How about quality of your factory product ?

    A: Our product quality is ahead of other manufacturers in the industry. We have advanced production equipment ,skilled workers and perfect mangement quality. So the quality is under control. Our products are certificated by ISO 9001:2008,CCC and BV, and many trucks passed SGS inspection .


    Q: How do you gurantee the quality of the product?

    A: Don't worry, my dear client. Any one of you is very important to us. So we will do inspect all of the goods before shipment. And we had joined the trade credit insurance system. If the product received has quality problems, Alibaba will return the advance payment back to you.

    Q: Why do you choose us?

    A: We are self-produced and self-selling manufacturer and we have more than 15 years of production experience, our products have been sold all over the world.

    Q: What about your after-sale service?
    A: We offer 1 year after-sale service. We can supply the spare parts at factory price all the time.


    Q: Can we visit your factory before purchasing?
    A: We welcome you to visit our factory any time and we will show you our production line .
