Brand Name : | CLW |
Model Number : | CLW20210809 |
Certification : | CCC, ISO9001 |
Price : | Negotiated |
Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability : | 500 units per Month |
Delivery Time : | 30 working days |

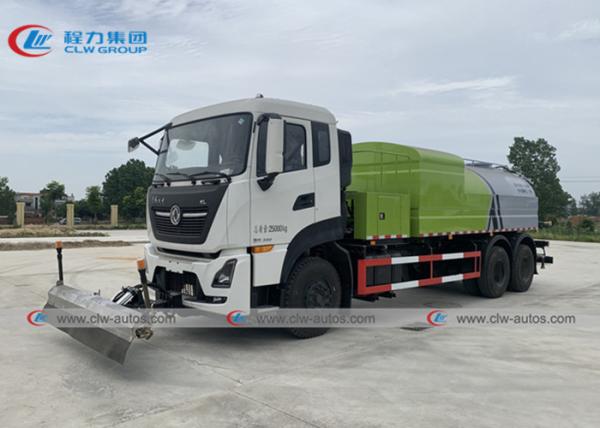

12m3 12000L Dongfeng 6x4 High Pressure Water Cleaning Road Street Washing Truck
Product Description
High-pressure cleaning truck is a kind of dual-engine, double-water
pump cleaning truck. It is a special-purpose washing operation
truck which is equipped with a high-pressure flushing system and a
low-pressure flushing system based on the standard second-class
chassis. . The car has two independent high and low pressure
waterway systems to provide pressure water for cleaning car work.
Its working principle is: the high-pressure water produced by the
high-pressure water pump is sprayed through the high-pressure
nozzle of the water spray frame, and the high-pressure water flow
is used to clean in a high-pressure, low-flow manner, strong
decontamination, efficient water conservation, and can pave the
Clean old stains; or spray high-pressure water through the left
(right) corner to clean curbs, sidewalks, and fence isolation
areas; use high-pressure spray guns to clean road signs,
billboards, elevated roads, etc .; the spray system has a powerful
spray to reduce dust 2. Spray air disinfectant and adjust air
humidity function.
The high-pressure water pump is driven by the auxiliary engine →
transmission shaft → belt drive → electromagnetic clutch →
coupling;
The low-pressure water system adopts a two-stage impeller
centrifugal pump with high efficiency, large sprinkler width, and
long range of water gun. The low-pressure water pump is directly
driven by the chassis transmission power take-off through the
transmission shaft.
The high-pressure water pumps, nozzles, high-pressure spray guns,
and key hydraulic and electrical components of this vehicle are all
international famous brand products with excellent performance and
reliable work.
Product Specification
Chassis | Chassis model | DFH1250D4 | ||
Engine model | D6.7NS6B290 | |||
Engine power/kW | 180 | |||
Tires | 11.00R20 | |||
Fuel type | Diesel | |||
Auxiliary engine and transmission Dynamic system | Auxiliary engine | Model | JE493G3 | |
Rate power | 57kw/3600/r/min | |||
Working speed | 1500~1700 r/min | |||
Electromagnetic clutch | DLK1-40 | |||
Coupling | TGLA9 | |||
High Pressure water road system Unify | High pressure pumps | Type | Plunger | |
Model | P51/135-90(PF36)Pinfu | |||
Pressure | 10MPa | |||
Speed | 800(900)r/min | |||
Water valve | Type | Pneumatic control high pressure ball valve | ||
Pressure | 10MPa | |||
Sprinkler nozzle | Type | High pressure washing type | ||
Corner nozzle | Type | High pressure washing type | ||
Spray nozzle | Type | Fine atomization type | ||
Water Filter | Type | Filter type | ||
Low pressure water system | Low pressure water pump | Type | Two-stage impeller centrifugal | |
Model | 50/110 | |||
Lift | 110m | |||
Rotating speed | 1480r/min | |||
Water valve | Pneumatic control ball valve | |||
Hydraulic | Type | Open type, electro-hydraulic control | ||
Main components | Gear pumps, hydraulic cylinders, solenoid valves | |||
Maximum system pressure | 16MPa | |||
Hydraulic oil tank capacity | 65L | |||
Electric system | Type | Unidirectional DC 24V (chassis) and unidirectional DC 12V (auxiliary generator), negative ground | ||
Accumulator | 6-QW-100MF (chassis), 75D31R (secondary engine) |
More Pictures for Reference:
Warranty
1. One year free warranty for major 3 components of our trucks:
engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's
country to assist the installation and operation when quantity
reaches 20 units.
3. Transportation warranty: our company offers transportation
insurance for customer to ensure the products arriving at
destination safely.
FAQ
Q: Can I buy a sample of your product for testing?
A. Yes, that's fine. Our MOQ is 1set.
Q: What's about the payment?
A: 40% deposit by T/T before order,balanced by T/T before delivery.
Q: How about quality of your factory product ?
A: Our product quality is ahead of other manufacturers in the industry. We have advanced production equipment ,skilled workers and perfect mangement quality. So the quality is under control. Our products are certificated by ISO 9001:2008,CCC and BV, and many trucks passed SGS inspection .
Q: How do you gurantee the quality of the product?
A: Don't worry, my dear client. Any one of you is very important to
us. So we will do inspect all of the goods before shipment. And we
had joined the trade credit insurance system. If the product
received has quality problems, Alibaba will return the advance
payment back to you.
Q: Why do you choose us?
A: We are self-produced and self-selling manufacturer and we have
more than 15 years of production experience, our products have been
sold all over the world.
Q: What about your after-sale service?
A: We offer 1 year after-sale service. We can supply the spare
parts at factory price all the time.
Q: Can we visit your factory before purchasing?
A: We welcome you to visit our factory any time and we will show
you our production line .
![]() |
