    SGS Tri Axle 56M3 Hydraulic Auger Grain Truck Trailer

    Ask Lasest Price
    Brand Name : CLW
    Model Number : CLW20210809
    Certification : ISO9001, CCC, BV, SGS
    Price : Negotiated
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 500 units per month
    Delivery Time : 30-35 days after receiving the deposit
    • Product Details
    • Company Profile

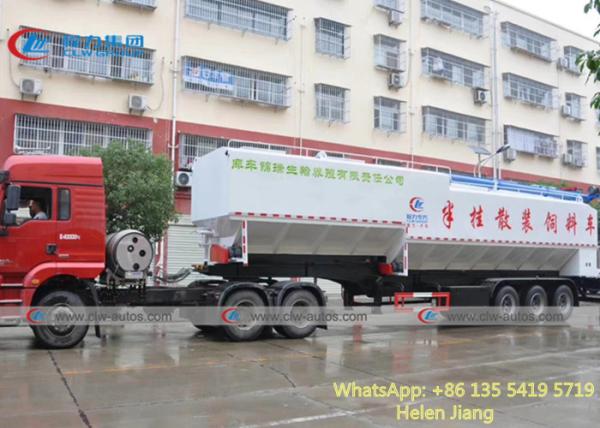

    SGS Tri Axle 56M3 Hydraulic Auger Grain Truck Trailer

    3 Tri Axle 56M3 Hydraulic Auger Bulk Feed Animal Fodder Wheat Grain Transport Delivery Tank Trailer


    Product Description
    1. Bulk feed transport vehicleis a special transport vehicle made of high-quality, high-strength steel plate welded forming tanks,and equipped with electric or hydraulic auger unloading system on the basis of various types of trucks or second-classchassis.

    2. Bulk feed truckconsists of the chassis, the loaded feed tank, the discharge auger system and the electron-hydraulic operating system.


    3. Bulk feed transporter tanksare welded with high-quality steel plates. Different bins can be loaded and unloaded at the same time. Electron-hydraulic auger unloading saves manpower and time, convenient loading and unloading, less residue and beautiful appearance.



    product Specification


    Vehicle Parameters
    Overall Dimensions
    (L*W*H)(mm)
    12955×2550×3980
    Tank Dimension
    (L*W*H)(mm)
    12220×2540×2270
    Total Mass(kg)
    34850
    Curb Weight(kg)
    12350
    Bulletin loading(kg)
    22500
    Theoretical loading(kg)
    27000
    Appearance color
    White/ optional
    Certification
    ISO9001, 3C
    Chassis Parameters
    Parking brake type
    Manual valve control spring brake cylinder
    Driving brake system
    Independent double circuit, air pressure, drum brake belt ABS
    Tire specifications
    11R22.5 16PR
    Trailer traction pin height from the ground(mm)
    1228
    Trailer radius of gyration(mm)
    1600
    Trailer gap radius
    2300
    Wheelbase(mm)
    7050+1310+1310
    Tank Parameters
    Tank gross volume (m3)
    56
    Space quantity
    6
    Conveying height(m)
    10.2
    Max conveying distance(m)
    8.8
    Discharge speed(Kg/min)
    550-650
    Residual rate(%)
    ≤0.22
    Discharge by
    Hydraulic auger
    Tank drive form
    The feed is conveyed by the lifting auger to the manual and wireless remote-control mode to realize long-distance transport and
    improve the level of epidemic prevention. And the external power is available.
    Electrical configuration
    Complete set of Schneider Electric control system; conveyor motor ABB, with 20m external power cable, external power supply 380V
    Painting
    Professional anti-corrosion paint,Process: sandblasting,polishing, painting
    Tank
    Made of high quality carbon steel sheet;Round design, high strength, beautiful appearance; imported sealing device; strict welding
    process to ensure quality..
    More detailed pictures for 3 Tri Axle 56M3 Hydraulic Auger Bulk Feed Animal Fodder Wheat Grain Transport Delivery Tank Trailer

    Warranty


    1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
    2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
    3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.



    FAQ


    Q: Can I buy a sample of your product for testing?

    A. Yes, that's fine. Our MOQ is 1set.


    Q: What's about the payment?

    A: 40% deposit by T/T before order,balanced by T/T before delivery.


    Q: How about quality of your factory product ?

    A: Our product quality is ahead of other manufacturers in the industry. We have advanced production equipment ,skilled workers and perfect mangement quality. So the quality is under control. Our products are certificated by ISO 9001:2008,CCC and BV, and many trucks passed SGS inspection .


    Q: How do you gurantee the quality of the product?

    A: Don't worry, my dear client. Any one of you is very important to us. So we will do inspect all of the goods before shipment. And we had joined the trade credit insurance system. If the product received has quality problems, Alibaba will return the advance payment back to you.

    Q: Why do you choose us?

    A: We are self-produced and self-selling manufacturer and we have more than 15 years of production experience, our products have been sold all over the world.

    Q: What about your after-sale service?
    A: We offer 1 year after-sale service. We can supply the spare parts at factory price all the time.


    Q: Can we visit your factory before purchasing?
    A: We welcome you to visit our factory any time and we will show you our production line .
