50000L 25 tons 25T 20ton 25ton Below Ground LPG Propane Mounted
Under ground LPG Gas Storage Tank
Product Description
1. Storage medium of LPG Stationary Storage Tank : LPG, cooking
gas,propane gas,Liquid ammoina,Dimethyl ether,Iso-butane,Pentane
and etc.
2. Available tank capacity of LPG Stationary Storage Tank :
5m³~200m³,2ton~100tons
3. Manufacturing standards of lLPG Stationary Storage Tank :
GB-150, ASME VIII Division I U STAMP, CCC, ISO9001 : 2008
Liquefied petroleum gas storage tanks include compressed gas or
liquefied gas storage tanks. Liquefied petroleum gas storage tanks
can be divided into fixed volume storage tanks and active volume
storage tanks according to the volume change of containers. Large
fixed volume LPG storage tanks It is made into a spherical shape,
and the small one is made into a cylindrical shape. The active
volume storage tank is also called the low-pressure gas storage
tank. It is commonly called the gas cabinet. Its geometric volume
can be changed, tightly sealed, no gas leakage, and the balance of
air pressure and the adjustment of gas supply. The pressure
generally does not exceed 60MPa.
1. LPG Tank Storage Content: LPG Gas, Propane, Butane, Liquid
Ammonia, etc 2. Tank Design Standard: GB150-2013, ASME Standard with U STAMP. 3. Test: 100% Radiaographic Test, Magnetic Power Test, Water
Pressure.
* Special Designed for under ground use, corrosion resistant.
* Water Resistant Fabric with Asphalt Coating in 3 Layer
* Red Painting Rust Resistant Design in 2 Layer
* Pressure Vessel Designed Tank Material in 14mm to 16mm.
Product Specification;
Technique Parameter for 500000 Liters 25tons Under ground lpg
storage tank
50CBM LPG TANKDIMENSIONS
Volume of Tank
50 CBM
FillingWeight
25,000 kg
Tank Weight
10640kg
Thickness of Shell (mm)
14 mm
Thickness of Endplate (mm)
16 mm
Tank Diameter (mm)
2700 mm
External Dimensions (mm) (length x width x height)
9182 x 2728 x 3318 mm
Material of Tank and Main Pressure Parts
Carbon Steel Q345R
Filling Medium
Liquefied Petroleum Gas ( Propane)
Design Pressure
1.77 MPa
Corrosion Allowance
1 mm
Medium Density
500 kg/ cbm
Manufacturing Standard:Pressure vessels,Supervision Regulation on Safety Technology for Stationary Pressure
Vessels of China.
Main parts of LPG Tank
Item
Specification
Quantity
Discharge Pipe
DN50
1
Inflow Pipe
DN50
1
Gas phase balance pipes
DN50
2
Drain Hole
DN50
1
Manhole
DN450
1
Air-out Pipe
DN50
1
Safety Valve Pipe
DN80
1
Safety Accessories(Included in the quotation): Cut-off Valve, Needle Valve, Safety Valve,Magnetic Liquidlevel meter, Pressure gauge, Temperature Gauge.

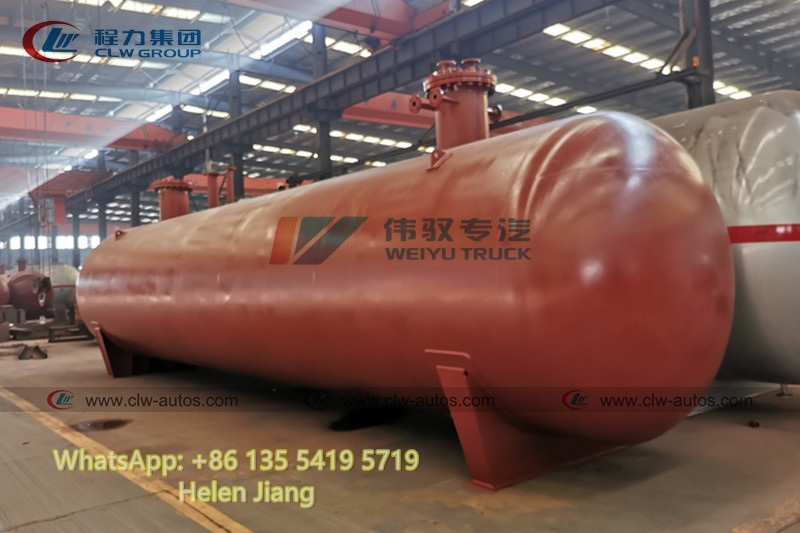

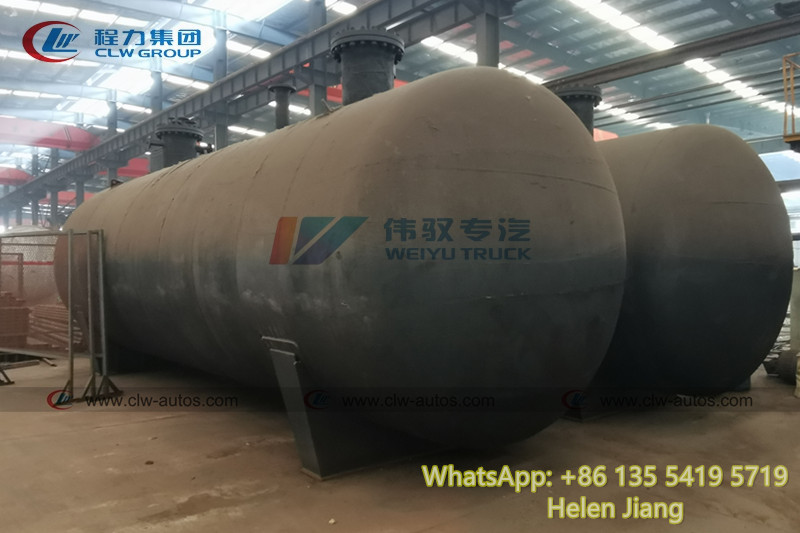

Product 50000Liters under ground LPG storage tank's pictures:
Pictures of LPG gas plant with the accessories:
Production Process for LPG storage tank:
-- The welding joints, welds, tank heads and geometric positions of
each pressure element are strictly inspected by X-ray;
-- non-destructive testing and magnetic particle inspection test
for each Underground LPG tank;
-- Design pressure of Underground LPG tank: 1.77Mpa;
-- hydraulic testing pressure:2.21 Mpa;
-- Corrosion allowance: 1mm;
-- Optional for tank accessories and lpg gas station equipments
such as safety valve,globe valve,ball valve,pressure
gauge,thermometer,magnetic level guage or rochester float-ball
level gauge,lpg pump and motor,lpg compressor,lpg flow
meter,cylinder filling scales,strainer,glass valve and so on.
Our Service
1) Quick feedback to solve your questions; 2) Professional engineering and production team; 3) Related Accessories and spare parts offered,no future worries; 4) Regular customer after-sale visiting; 5) Free technical staff training and guidance; 6) Reasonable price and good quality; 7) Quick delivery and shipment.
FAQ
Q1: What kinds of LPG products I can order from your company? A: We specialize in producing 5CBM to 200CBM LPG above ground
storage tanker, 5CBM to 120CBM LPG underground storage tanker, 5CBM
to 38.5CBM LPG tank truck, 5CBM to 25.5CBM LPG dispenser truck/LPG
bobtail truck, 40CBM to 61.9CBM LPG semi trailer and 5CBM to 50CBM
LPG Skid Station/LPG mobile filling station etc. Any interests you
can feel to contact us for details. Many Thanks.
Q2: What is your production standard of LPG products? Can you
manufacture your products under ASME standard? A: Usually our LPG products adopts GB-150/China standard, there
ASME standard for optional. Yes, we can do ASME standard and our
ASME standard as per DIV 01 SEC VIII.
Q3: Have you supplied LPG products to any renowned companies? A: Our group company is a regular strategic partner of some big gas
companies. We have supplied many storage tanks and semi trailer for
them with different sizes. The biggest size tank we ever provided
is 200m3 high pressure LPG storage tank
Q4: What about warranty? A: Equipment warranty is 12 months from the date on which the
equipment is applied successfully into operation, or 13 months from
the date on which the equipment has been delivered, whichever comes
first.
Q5: Where is your factory? How far from Shanghai to your factory? A: Our factory based in Suizhou city, Hubei province, China. Our
overseas marketing office in Wuhan. From Shanghai to WUhan is only
2 hours by airplane. Warmly welcome you to visit us in near future!
