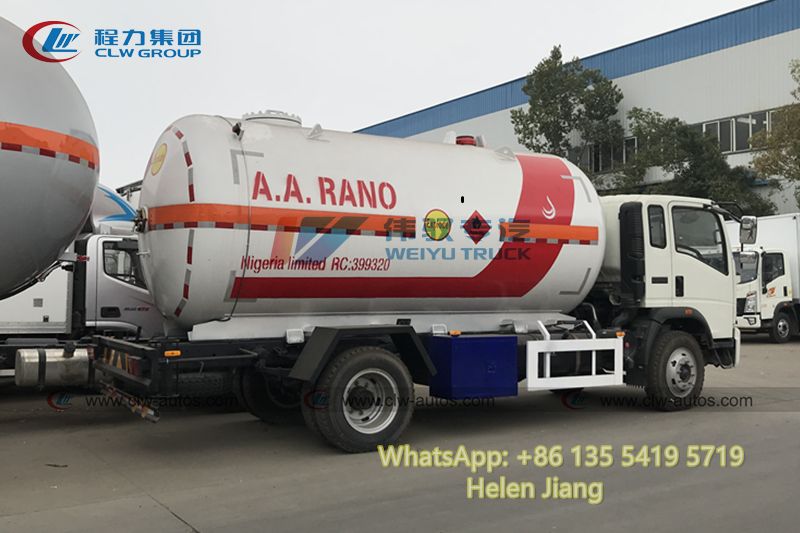

Sinotruk Howo 6 Wheels 140HP 8000L 4T LPG Bobtail Gas Truck

Sinotruk HOWO 6 Wheels 140HP 8000L 4T LPG Bobtail Filling Gas Tank Truck

Product Description

LPG rigid truck(also called lpg bobtail truck,lpg dispenser truck,lpg refilling truck,lpg tanker truck,lpg dispensing truck) is designded and used for transporting and refueling propane/lpg gas/liquid petroleum gas into smaller lpg skid station tank and home cylinders.

With different design,you can choose volume flow meter or lpg dispenser for your truck. The lpg dispenser is widely used for filling home cylinders.It can be measured by filling weight or filling volume and it can offer receipt in english,french or spanish as required. With above lpg bobtail,you can start lpg filling business easily.

1) Truck Brand optional for lpg bobtail :Sinotruk Howo, dongfeng,faw,isuzu,foton and other brands.

2) Tank Size of lpg bobtail : 5000liters,5000L,10,000liters,10000L,10cbm,12000liters 12000L,12cbm,15000 Liters,15000L,15cbm,

3) Function of lpg bobtail : mobile Propane or Butan Gas Delivery/ Refilling/bottling/filling truck

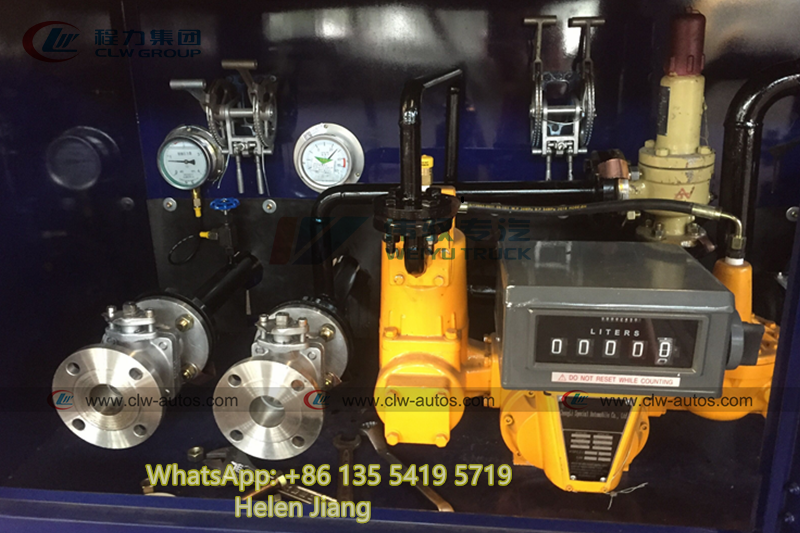

4) Refiling System of lpg bobtail : 2" Flowmeter or intelligent filling dispenser machine,2" Corken or Chinese brand Pump,15meters Filling Hose Reel,filling nozzle,radiator,hydraulic oil box

5) Truck Spec of lpg bobtail : Yuchai Engine 140HP or 160hp, WLY6T51 Gearbox 5 Forward & 1 Revers, 8.25R20 Tires or 9.00R20 tires.

product Specification

Item No.	Parameters
Overall Dimension	7600x2300x2980 mm
Driving Model	Left hand drive or right hand drive
Gross Vehicle Weight	11460 kg
Curb Weight	6460 kg
Payload	5000 kg
F/R Axle Loading	3200/8000 kg
Wheel Base	4200 mm
Front/rear Tread	1886/1845 mm
Approach/Departure Angle	27/20 degree
Engine	Yuchai 4110,YC4E160-33
Engine horsepower	160 HP EUROIII
Displacement	4260mL (Diesel)
Max Driving Speed	95 km/h
Gear Box	DC6J65TC,6 forward& 1 reverse
Cabin	2~3 Passenger allowed,with A/C
Tire	8.25R20 (6 pc with 1 spare)
LPG tank
Volume:	8~10cbm
Tank material:	Q345R
Tank diameter:	1800mm
Tank thickness:	10mm
End plate	10mm
Tank length:	As designed
Gas phase	DN50
Liquid Phase	DN50 or DN80 for option
Filling gas	Propane(LPG)
Design Pressure:	1.61Mpa
Accessory
Level Gauge	Manual rotation type,at the rear of tank
Safety Valve	1,DN80
Tool and Valve Box	1

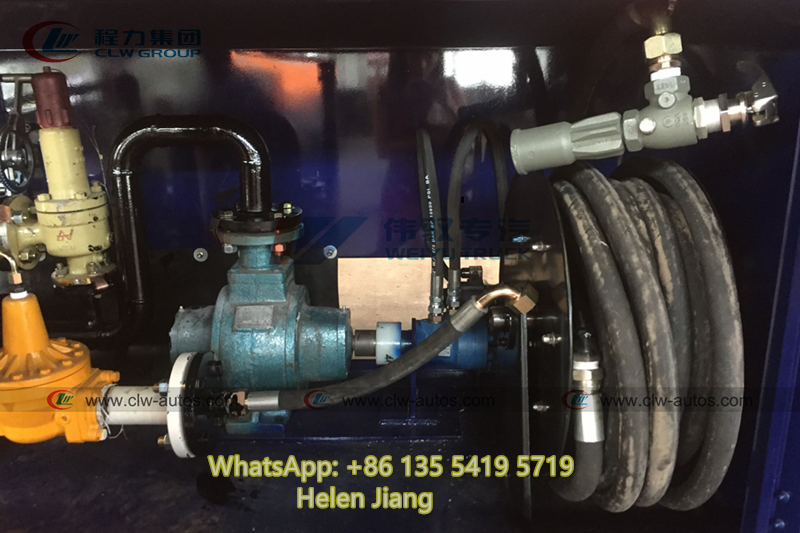

LPG pump	1

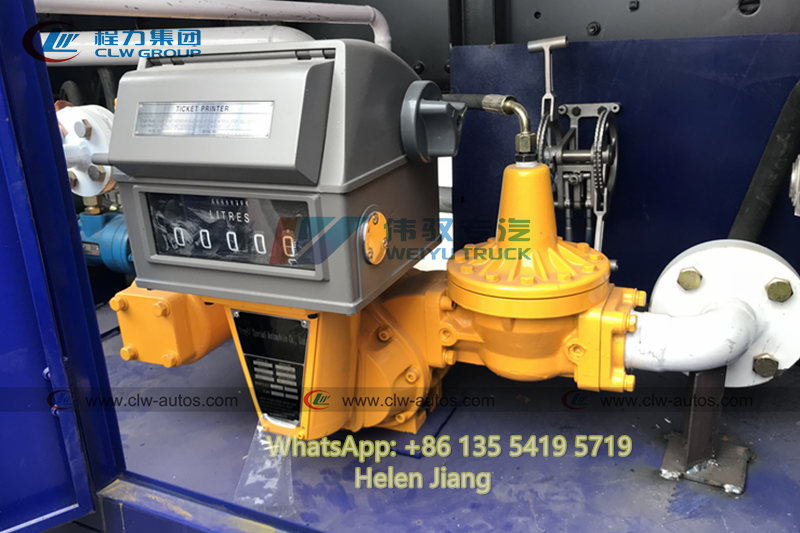

LPG Volume Flow Meter	1
Filling Hose	15 meters
Filling Nozzle	1pc,Standard for 12.5kg cylinder
Thermometer	1
Pressure Gauge	1
Emergency Valve	1
Fender	Steel
Fire Extinguisher holder	2
Exhaust shaft	At the front of truck for safety

Warranty

1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.

FAQ

Q: Can I buy a sample of your product for testing?

A. Yes, that's fine. Our MOQ is 1set.

Q: What's about the payment?

A: 40% deposit by T/T before order,balanced by T/T before delivery.

Q: How about quality of your factory product ?

A: Our product quality is ahead of other manufacturers in the industry. We have advanced production equipment ,skilled workers and perfect mangement quality. So the quality is under control. Our products are certificated by ISO 9001:2008,CCC and BV, and many trucks passed SGS inspection .

Q: How do you gurantee the quality of the product?

A: Don't worry, my dear client. Any one of you is very important to us. So we will do inspect all of the goods before shipment. And we had joined the trade credit insurance system. If the product received has quality problems, Alibaba will return the advance payment back to you.

Q: Why do you choose us?

A: We are self-produced and self-selling manufacturer and we have more than 15 years of production experience, our products have been sold all over the world.

Q: What about your after-sale service?
A: We offer 1 year after-sale service. We can supply the spare parts at factory price all the time.

Q: Can we visit your factory before purchasing?
A: We welcome you to visit our factory any time and we will show you our production line .
