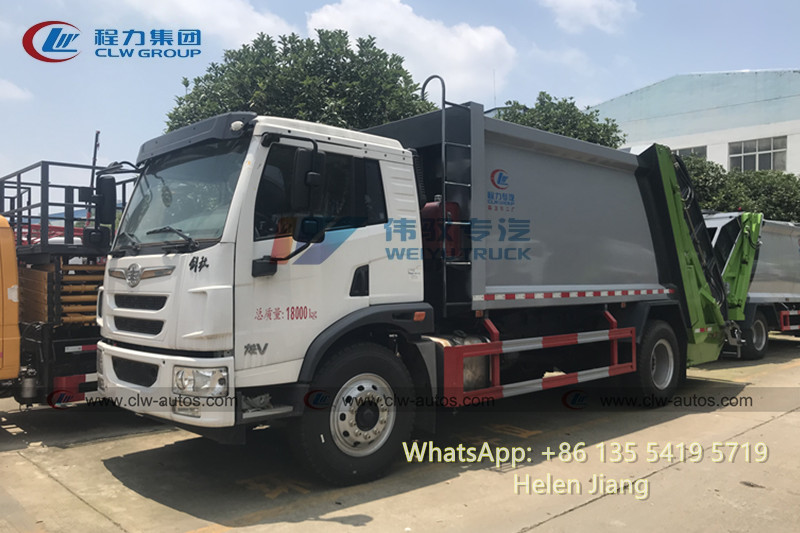

FAW 4x2 6 Wheels 10CBM Garbage Compactor Truck

    Buy cheap FAW 4x2 6 Wheels 10CBM Garbage Compactor Truck from wholesalers

    Buy cheap FAW 4x2 6 Wheels 10CBM Garbage Compactor Truck from wholesalers
    • Buy cheap FAW 4x2 6 Wheels 10CBM Garbage Compactor Truck from wholesalers
    • Buy cheap FAW 4x2 6 Wheels 10CBM Garbage Compactor Truck from wholesalers
    • Buy cheap FAW 4x2 6 Wheels 10CBM Garbage Compactor Truck from wholesalers
    • Buy cheap FAW 4x2 6 Wheels 10CBM Garbage Compactor Truck from wholesalers
    • Buy cheap FAW 4x2 6 Wheels 10CBM Garbage Compactor Truck from wholesalers
    • Buy cheap FAW 4x2 6 Wheels 10CBM Garbage Compactor Truck from wholesalers

    FAW 4x2 6 Wheels 10CBM Garbage Compactor Truck

    Ask Lasest Price
    Brand Name : CLW
    Model Number : CLW20210722
    Certification : ISO9001, CCC, BV, SGS
    Price : Negotiated
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 500 units per month
    Delivery Time : 30-35 days after receiving the deposit
    • Product Details
    • Company Profile

    FAW 4x2 6 Wheels 10CBM Garbage Compactor Truck

    FAW 4X2 6 Wheels 10M3 10CBM 10 cubic meters Garbage Caompactor Truck for Waste Collection


    Product Description


    • Garbage trucks are widely used in sanitation, municipal, factory and mining enterprises, and residential areas where have a lot of garbage. Garbage trucks are classified into compressed garbage trucks, swing arm type, dump type, sealed type, docking type, hook type arm type, and pull arm type garbage truck. Garbage trucks can carry multiple compartments in one vehicle, which can effectively prevent secondary pollution during the loading and unloading process. The modified part is separable from the original car chassis, which is easy to maintain and maintain the mobility and driving performance of the original car. Customers who have special requirements for garbage trucks please contact with us at any time. We can produce the trucks according to your requirements.


    product Specification


    Vehicle parameters:
    Overall dimensions (length * width * height)Barrel Turning Device: 7160×2250×2650mm
    Tipping Device: 7460×2250×2650mm
    Total mass8275Kg
    Rated contained mass1500Kg
    Curing quality6580Kg
    Wheelbase3800mm
    Front overhang / rear overhang1210/2150,1210/2450
    Approach / departure angle24/13
    Chassis parameters
    Chassis typeDongfeng Dolika
    Cab colorWhite
    Drive form4*2
    Wheelbase4500mm
    engine modelCY4SK251(Euro V )
    Engine power (kw)115
    Emission StandardsGB17691-2005 (Euro V),GB3847-2005
    Tire7.50 Steel Wire Tyres (7)
    Top loading parameters:
    Effective volume of the box10CBM
    Box shapearc
    Box materialBottom 4 sides 4
    Compression ratio≥2.5
    Loading cycle once≤35 s
    Pushing garbage time≤35s
    control methodautomatic / manual
    Hydraulic system pressure16MPa
    Hydraulic oil pumpHefei Changyuan (Zhonglian Heavy Industry)
    Hydraulic cylinderZoomlion supporting
    PLC control systemSiemens, Germany
    Engine power controlFully automatic control
    Tumbler mechanismHang two 240L trash cans at the same time (Optional other types of flip frame)

    FAW 8000 liter compactor Garbage truck Working parameter:

    Hydraulic pumpLong source large flow 32-80 pump, optional double pump and double valveBody materialHigh strength T420 special steel plate
    Hydraulic cylinderXiamen Yinhua, Yantai FutureBox thicknessLightweight design with 4mm at the bottom and 5 sides
    Multi-way valveJiangsu Zhongmei, Italy importsSewage tank2 (1 on the side and 1 on the rear)
    Conversion modePhotoelectric switch (formerly pressure relay)Sewage sealTail diversion groove + rubber hydraulic lock
    Automatic controlStandard configuration, Siemens PLC electronic controlLighting deviceTail night light
    Electric control box3 (1 in the cab and 2 in the rear)safety devicesTail lift with hydraulic lock
    Optional configurationHanging plastic buckets (120L, 240L, 360L, 480L, 660L), hanging iron buckets, triangle buckets, fully sealed buckets, swing arm racks, electric hydraulic system

    Warranty


    1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
    2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
    3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.


    FAQ


    Q: Can I buy a sample of your product for testing?

    A. Yes, that's fine. Our MOQ is 1set.


    Q: What's about the payment?

    A: 40% deposit by T/T before order,balanced by T/T before delivery.


    Q: How about quality of your factory product ?

    A: Our product quality is ahead of other manufacturers in the industry. We have advanced production equipment ,skilled workers and perfect mangement quality. So the quality is under control. Our products are certificated by ISO 9001:2008,CCC and BV, and many trucks passed SGS inspection .


    Q: How do you gurantee the quality of the product?

    A: Don't worry, my dear client. Any one of you is very important to us. So we will do inspect all of the goods before shipment. And we had joined the trade credit insurance system. If the product received has quality problems, Alibaba will return the advance payment back to you.

    Q: Why do you choose us?

    A: We are self-produced and self-selling manufacturer and we have more than 15 years of production experience, our products have been sold all over the world.

    Q: What about your after-sale service?
    A: We offer 1 year after-sale service. We can supply the spare parts at factory price all the time.


    Q: Can we visit your factory before purchasing?
    A: We welcome you to visit our factory any time and we will show you our production line .
