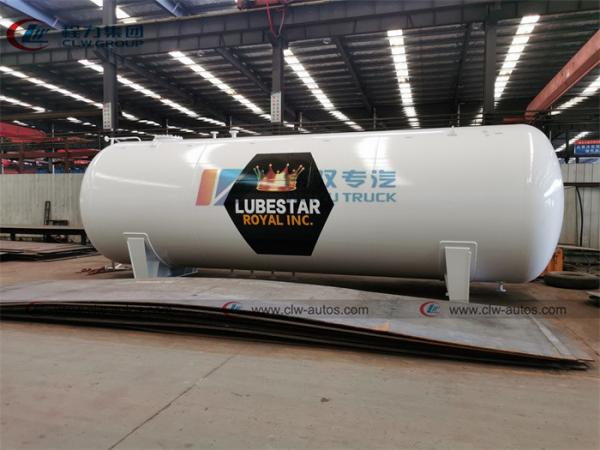

    SONCAP Certificated 25 Tons LPG Storage Tank For Gas Filling Station

    25tons LPG Storage Tank SONCAP Certificated Propane Gas Tank for Nigeria

    Product Description


    1. Storage medium of lpg gas plant tank : LPG, Liquid ammoina,Dimethyl ether,Iso-butane,Pentane and etc.

    2. Tank sizes:5,000L, 20,000L, 30,000L, 40,000L, 50,000L, 60,000L, 80,000L, 100,000L, 120,000L etc.

    3. Manufacturing standards of lpg gas plant tank : GB-150, ASME VIII Division I U STAMP, CCC, ISO9001 : 2008

    4. Tank basic accessories included: valves, level meter, thermometer, pressure gauge etc.

    5. Optional for lpg gas plant equipments as follows, lpg pump and motor,lpg compressor,volume flow meter,filling scales and lpg dispenser,ball valves,check valves,non-return valves,glass valve,strainer,by-pass valve and so on.

    6. Maintenance-free operation with simple calibration and proof testing.

    7. 20 years guarantee against manufacturing defects.


    Parameter of 25tons storage tanks
    ITEMPARAMETERITEMPARAMETER
    Volume50000litersThickness of Shell14mm
    Tank MaterialQ345RThickness of End plate16mm
    Overall Size9182*2728*3318mmTank Net Weight10640kg
    Tank Diameter2700mmLoading Capacity19950kg
    Design Pressure1.77MpaGas Density420kg/M3
    Hydraulic Test Pressure2.22MpaCorrosion Allowance1mm
    Design Temperature-20ºC~60ºCHeat TreatmentBulk
    Vapor OutletDN50Gas OutletDN50
    Life time15 years
    Accessories
    ModelItemQtyJunction surface
    J41N-2.5-50Stop Valve DN506RF
    J41N-2.5-25Stop Valve DN252RF
    J41N-2.5-80Stop Valve DN801RF
    J24W-320-DN6J24W Needle Valve M20*1.51
    HG21584-95Magnetic plate level Gauge UZFAL-2.5RF-3040-0.51RF
    A42F-25-80Safety Valve DN801RF
    Y-100TPressure Gauge M20*1.5 1.5degree 0~4Mpa1
    WTQ-280Thermometer M33*2 2.5 degree1-40ºC~60ºC

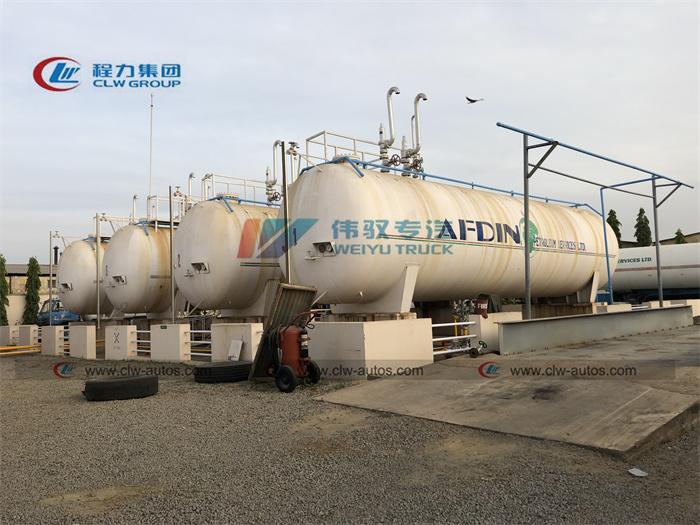

    LPG filling station design


    Key words: 25tons LPG storage tank, LPG Tank,Propane gas tank, Soncap gas tank, gas filling station
