ASME 60000L 30MT Q345R Carbon Steel LPG Gas Storage Tank

Ask Lasest Price
Brand Name :	CLW
Model Number :	CLW20210720
Certification :	ISO9001, CCC, BV, SGS
Price :	Negotiated
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	500 units per month
Delivery Time :	25-20 days after receiving the deposit

Add to Cart

Product Details
Company Profile

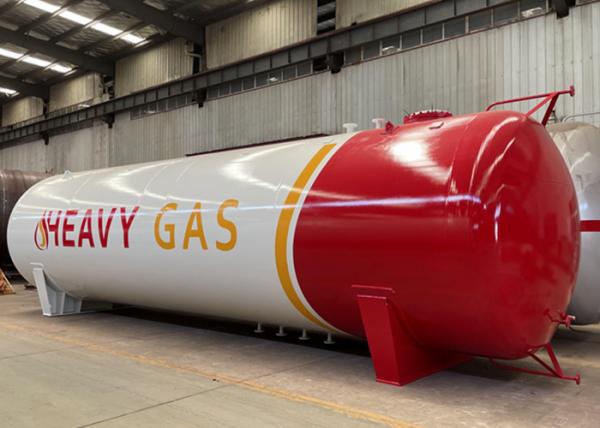

ASME 60000L 30MT Q345R Carbon Steel LPG Gas Storage Tank

60000L 30 tons 30MT LPG gas storage tanker ASME Propane Pressure Vessel 60m3 Liquid Gas Storage Tank

Volume of Tank60 CBMFilling Weight30000 kgTank Weight12750 kgThickness of Shell (mm)14 mmThickness of End plate (mm)16 mmTank Diameter (mm)2700 mmExternal Dimensions (mm) (length x width x height)10962 x 2728 x 3318 mmMaterial of Tank and Main Pressure PartsCarbon Steel Q345RFilling MediumLiquefied Petroleum Gas ( Propane)Design Pressure1.77 MPaTest Pressure2.22 MpaCorrosion Allowance1 mmMedium Density420-590 kg/ cbmMain parts of LPG TankItemSpecification/ mmQuantityDischarge PipeDN50-2"1Inflow PipeDN50-2"1OutletDN50-2"1Gas phase balance pipesDN50-2"1ManholeDN4501Drain HoleDN50-2"1

Product Description

1. Storage medium of LPG Stationary Storage Tank : LPG, cooking gas,propane gas,Liquid ammoina,Dimethyl ether,Iso-butane,Pentane and etc.

2. Available tank capacity of LPG Stationary Storage Tank : 5m³~200m³,2ton~100tons

3. Manufacturing standards of lLPG Stationary Storage Tank : GB-150, ASME VIII Division I U STAMP, CCC, ISO9001 : 2008

CLW 60m3 LPG Storage Tank

1. LPG tank is also called LPG storage tank,LPG tanker, LPG storage tanker propane tank and propane tanker which belongs to special equipment.

2. It is mainly used for liquefied petroleum gas storage and distribution stations, car filling stations, etc.

3. There are many production processes for CLW LPG storage tanks. Several important processes are as follows:
A, The first is the selection of raw materials for large-scale iron and steel enterprises;
B, The second is the overall heat treatment required for the welding of tanks.

4. This process is to eliminate the stress of steel plates and make the entire tank become a whole, so that the weld seam will not be cracked. Once again, the sand blasting process used by our company uses one or two millimetersof steel grit to spray the surface of the tank to remove rust.

5. This way of rust removal can effectively remove rust and spray paint and can also be used for longer.Finally, our company chooses products of large-scale paint companies, sprays the anti-rust primer twice, then sprays the topcoat twice.

6. The paint can ensure that thestorage tank will not lose paint for a long time, and the maintenance is better.This is how we keep good quality and competitive prices for global valued customers.

Technique Parameter for 600000 Liters 30tons lpg storage tank

tem	Unit	Parameter
Product Name		Liquefied Gas Storage Tank
Design/manufacture code		GB150,ASME is for option
Overall dimensions	mm	1116631323722
Tank Dimension		DN31001611166(inner DIAplate thicknesslength)
Fact cubage	m3	80
Tank material		Q345R
Loading weight	Kg	40000
Tank weight	kg	17000
Working pressure	Mpa	≤1.6
Testing hydraulic pressure		2.12
Testing pressure for gas density		1.77
Test pressure		1.69
Air tight test pressure		1.69
Safety valve popping pressure		1.68
Working temperature	ºC	≤50

Accessory list for 60,000l lpg storage tank

Accessories List
Parts No	Size	Parts Name	Model No.	Quantity	Unit
a	DN50	Cut-off Valve for Drain Outlet	J41N-2.5-50	1	set
b	DN80	Cut-off Valve for Liquid Phase Outlet	J41N-2.5-80	1	set
c1	DN50	Cut-off Valve for Gas Phase Balance Outlet	J41N-2.5-50	1	set
c2	DN50	Cut-off Valve for Gas Phase Balance Outlet	J41N-2.5-50	1	set
d	DN80	Cut-off Valve for Liquid Inlet	J41N-2.5-80	1	set
i	DN50	Cut-off Valve for Air Drain Outlet	J41N-2.5-50	1	set
h	DN80	Cut-off Valve for Safety Valve	J41N-2.5-80	1	set
f1	DN25	Cut-off Valve for Magnetic Level Gauge	J41N-2.5-25	1	set
f2	DN25	Cut-off Valve for Magnetic Level Gauge	J41N-2.5-25	1	set
e	M33*2	Thermometer	WTQ-280	1	set
g	M20*1.5	Pressure Gauge	Y-100T	1	set
/	/	Magnetic Level Gauge	HG21584-95	1	set
/	DN80	Safety Valve	A42F-25	1	set
	M20×1.5	Needle Valve	J24W-320-DN6	1	set
Total Quantity				14

Product Advantage

1. Automatic circular seam welder guarantee the stable characteristics of solder joints

2. Rigorous x-ray X-ray radiographic inspection report

3. Resistance wire heating heat treatment process to eliminate all kinds of stress

4. ISO, 3C & ASME certificate

5. High quality domestic or imported safety accessories for user to choose

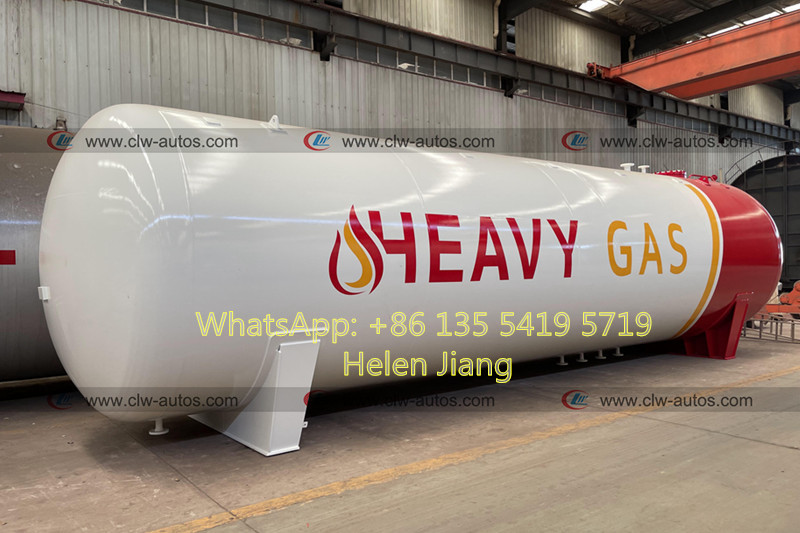

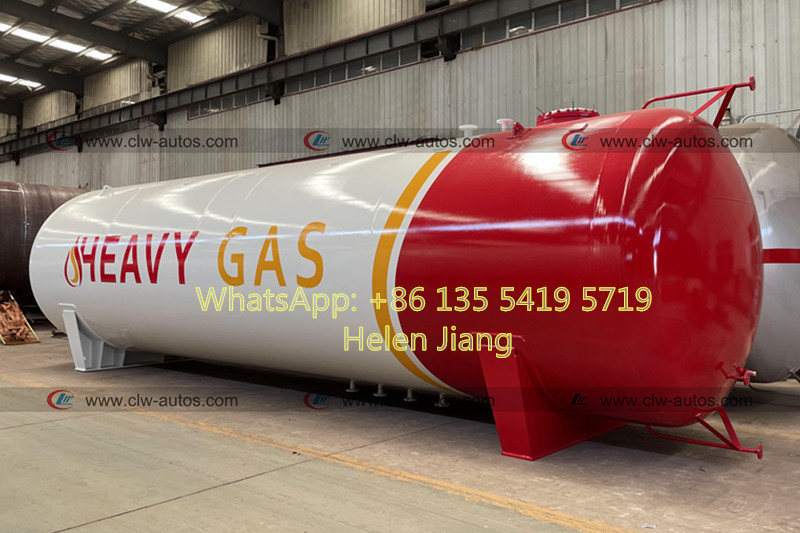

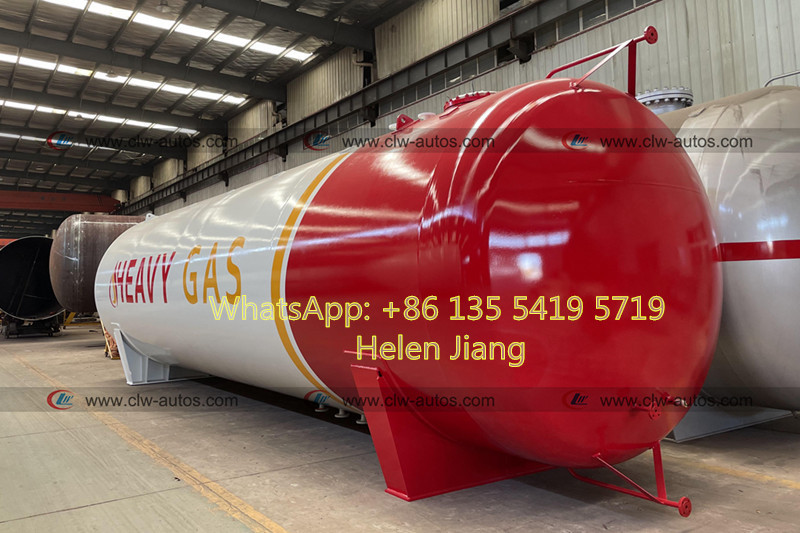

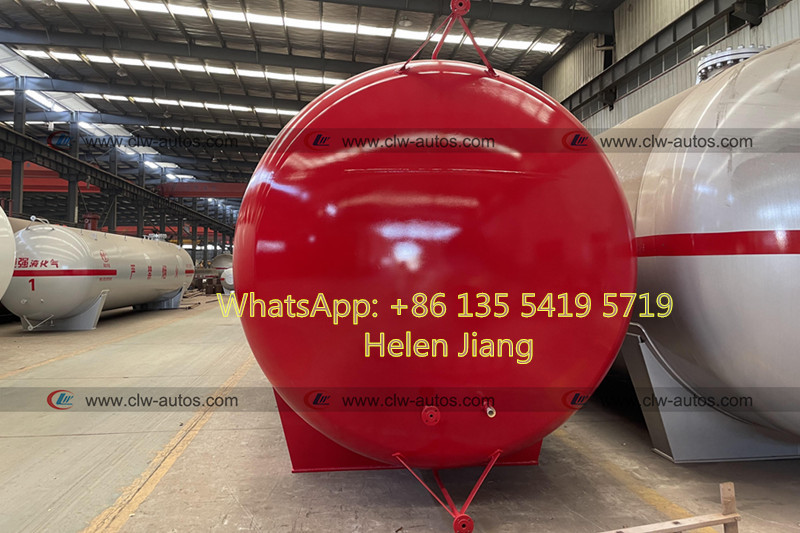

Product 60000Liters LPG storage tank's pictures:

Pictures of LPG gas plant with the accessories:

Production Process for LPG storage tank:

Feature

-- The welding joints, welds, tank heads and geometric positions of each pressure element are strictly inspected by X-ray;

-- non-destructive testing and magnetic particle inspection test for each Underground LPG tank;

-- Design pressure of Underground LPG tank: 1.77Mpa;

-- hydraulic testing pressure:2.21 Mpa;

-- Corrosion allowance: 1mm;

-- Optional for tank accessories and lpg gas station equipments such as safety valve,globe valve,ball valve,pressure gauge,thermometer,magnetic level guage or rochester float-ball level gauge,lpg pump and motor,lpg compressor,lpg flow meter,cylinder filling scales,strainer,glass valve and so on.

Our Service

1) Quick feedback to solve your questions;
2) Professional engineering and production team;
3) Related Accessories and spare parts offered,no future worries;
4) Regular customer after-sale visiting;
5) Free technical staff training and guidance;
6) Reasonable price and good quality;
7) Quick delivery and shipment.

FAQ

Q1: What kinds of LPG products I can order from your company?
A: We specialize in producing 5CBM to 200CBM LPG above ground storage tanker, 5CBM to 120CBM LPG underground storage tanker, 5CBM to 38.5CBM LPG tank truck, 5CBM to 25.5CBM LPG dispenser truck/LPG bobtail truck, 40CBM to 61.9CBM LPG semi trailer and 5CBM to 50CBM LPG Skid Station/LPG mobile filling station etc. Any interests you can feel to contact us for details. Many Thanks.

Q2: What is your production standard of LPG products? Can you manufacture your products under ASME standard?
A: Usually our LPG products adopts GB-150/China standard, there ASME standard for optional. Yes, we can do ASME standard and our ASME standard as per DIV 01 SEC VIII.

Q3: Have you supplied LPG products to any renowned companies?
A: Our group company is a regular strategic partner of some big gas companies. We have supplied many storage tanks and semi trailer for them with different sizes. The biggest size tank we ever provided is 200m3 high pressure LPG storage tank

Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
