    HOWO 6x4 Q304-2B Stainless Steel Asphalt Paving Truck

    Ask Lasest Price
    Brand Name : CLW
    Model Number : CLW5871
    Certification : CCC BV SGS
    Price : negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 500 Units/Month
    Delivery Time : 30 days after receiving deposit
    • Product Details
    • Company Profile

    HOWO 6x4 Q304-2B Stainless Steel Asphalt Paving Truck

    HOWO 6X4 Stainless Steel Q304-2B Asphalt Paving Truck


    Description

    1. It can spread a variety of asphalt: high viscosity modified asphalt, hot asphalt, emulsified asphalt, etc.
    2. The width of the sprinkler is freely adjustable and each nozzle can be individually controlled.
    3. Excellent insulation performance, average temperature drop ≤20°C/8h.

    4. Intelligent control system for precise control of the amount of spreading. Manual and automatic two sets of operating systems, complete the sprinkling in the cab, the construction can be completed by one person only.


    Specifications

    ItemSpecificationRemark
    Dimension(mm)10530*2500*3400L*W*H
    Maximum Capacity (m3)12
    Curb Weight (kg)7990
    Payload (kg)15000
    Gross Mass(kg)23000
    Wheel base(mm)4600+1350
    Working Temperature (°C)230
    Working Pressure (Mpa)0.09
    Temperature Lapse Rate (°C/h)2Feeding Temperature≥160°C
    Asphalt Pump Displacement (L/min)500
    Application Width (mm)0~600038 pcs Jet Nozzle
    Ground Clearance of Distributing Bar (mm)200~450
    Application Ration(L/ m2)0.3 ~3
    Burner40G20
    Hydraulic PumpCBN-F450-ALPL
    Radial Plunger Motor1NM05-60
    Model of the ChassisZZ1167G4HOWO
    Model of the EngineYC4E160-33
    Maximum Power of the Engine (Kw)247
    Passengers Capacity (person)3
    Approach Angle (º)22
    Departure Angle(º)13
    Maximum Running Speed (Km/h)95

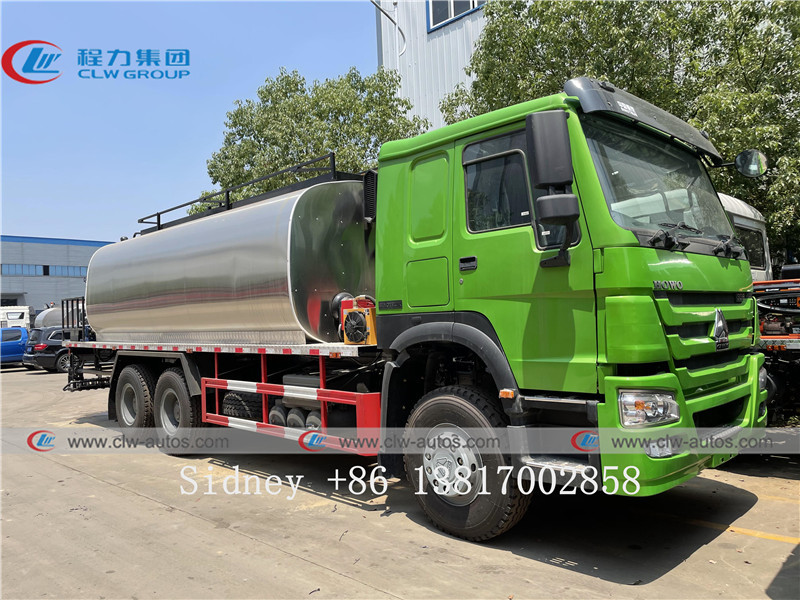

    Reference Pictures

    HOWO 6x4 Q304-2B Stainless Steel Asphalt Paving TruckHOWO 6x4 Q304-2B Stainless Steel Asphalt Paving Truck

    HOWO 6x4 Q304-2B Stainless Steel Asphalt Paving TruckHOWO 6x4 Q304-2B Stainless Steel Asphalt Paving Truck

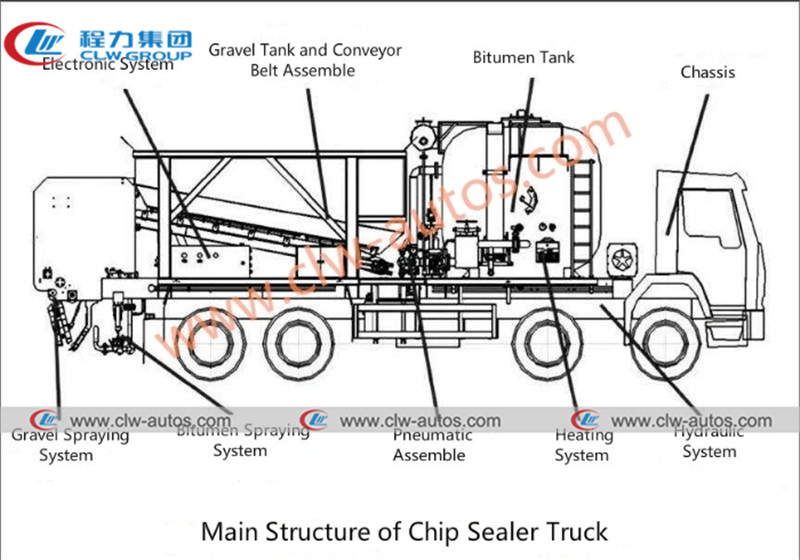

    Main Structure Diagram


    Working Scene


    Warranty


    1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
    2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
    3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.


    Spare Parts


    1. Supplying quick-wearing parts at the truck delivery.
    2. Good quality parts produced by the truck manufacturing factory.
    3. Only charge cost price for customer convenience.


    After Sales Service


    Email & Phone call tracking for each truck on timely manners.


    Shipment


    Land transportation or Ship by bulk cargo ship, container, roro ship
