ASME Dia 2400mm 20MT 40CBM LPG Gas Storage Tank

Ask Lasest Price
Brand Name :	CLW
Model Number :	CLW9484
Certification :	CCC ISO ASME
Price :	16,890-27,850usd
Payment Terms :	L/C, T/T
Supply Ability :	200units/month
Delivery Time :	Within 30days after received advance payments

Add to Cart

Product Details
Company Profile

ASME Dia 2400mm 20MT 40CBM LPG Gas Storage Tank

40,000Liters 40cbm 20 tons 40m3 50 cubic LPG tank liquefied petroleum gas propane LPG storage tank

Description

Liquefied petroleum gas storage tanks include compressed gas or liquefied gas storage tanks. Liquefied petroleum gas storage tanks can be divided into fixed volume storage tanks and active volume storage tanks according to the volume change of containers. Large fixed volume LPG storage tanks It is made into a spherical shape, and the small one is made into a cylindrical shape. The active volume storage tank is also called the low-pressure gas storage tank. It is commonly called the gas cabinet. Its geometric volume can be changed, tightly sealed, no gas leakage, and the balance of air pressure and the adjustment of gas supply. The pressure generally does not exceed 60MPa.

1. LPG Tank Storage Content: LPG Gas, Propane, Butane, Liquid Ammonia, etc
2. Tank Design Standard: GB150-2013, ASME Standard with U STAMP.
3. Test: 100% Radiaographic Test, Magnetic Power Test, Water Pressure.

Specifications

40 CBM LPG Storage Tank Specifications
Volume of Tank		40 CBM
Filling Weight		15960 kg
Tank Weight		9380 kg
Thickness of Shell (mm)		12 mm
Thickness of endplate (mm)		14 mm
Tank Diameter		2400 mm
Overall Size (length x width x height)		927024283018(mm)
Material of Tank		Carbon Steel Q345R
Design Pressure		1.71 MPa
Hydraulic Test Pressure		2.21 Mpa
Design Temperature		-20ºC~50ºC
Heat Treatment		Bulk
Corrosion Allowance		1 mm
Vapor Outlet		DN50
Gas Outlet		DN50
Life Time		15 years
Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China.
Standard Accessories of LPG Tank
Model	Item		Qty	Junction Surface
A42F-25-100	Safety Valve DN100		1	RF
J41N-2.5-50	Stop Valve DN50		6	RF
J41N-2.5-25	Stop Valve DN25		2	RF
J41N-2.5-100	Stop Valve DN100		1	RF
J24W-320-DN6	J24W Needle Valve M20*1.5		1	/
HG21584-95	Magnetic plate level Gauge UZFAL-2.5RF-3040-0.5		1	RF
Y-100T	Pressure Gauge M20*1.5 1.5degree 0~4Mpa		1	/
WTQ-280	Thermometer M33*2 2.5 degree		1	-40ºC~60ºC

Reference photos

ASME Dia 2400mm 20MT 40CBM LPG Gas Storage Tank

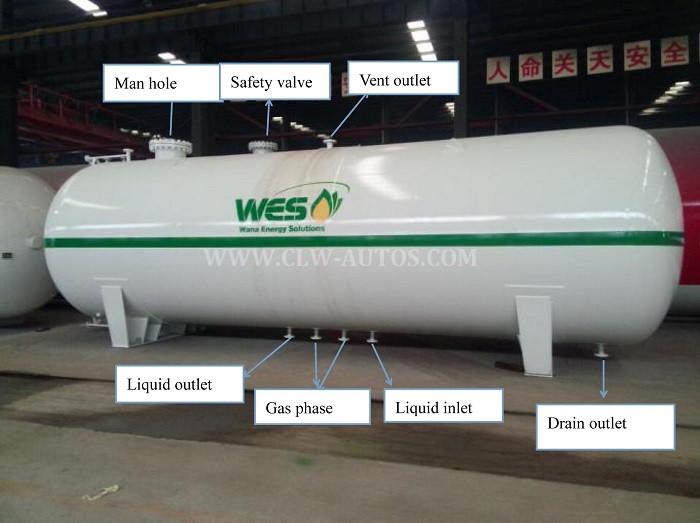

Tank diagram

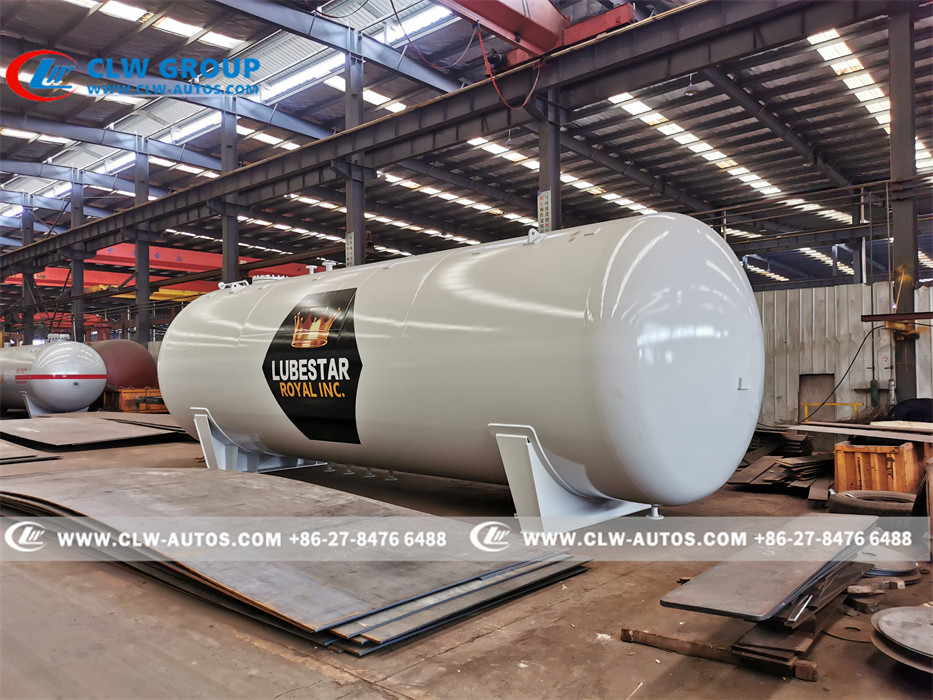

Tank workshop

Other LPG tank/gas plant details

Sales Service

① Pre-sales Service: Communicate with customers, analyze their needs.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.

FAQ

Q1: What kinds of LPG products I can order from your company?
A: We specialize in producing 5CBM to 200CBM LPG above ground storage tanker, 5CBM to 120CBM LPG underground storage tanker, 5CBM to 38.5CBM LPG tank truck, 5CBM to 25.5CBM LPG dispenser truck/LPG bobtail truck, 40CBM to 61.9CBM LPG semi trailer and 5CBM to 50CBM LPG Skid Station/LPG mobile filling station etc. Any interests you can feel to contact us for details. Many Thanks.

Q2: What is your production standard of LPG products? Can you manufacture your products under ASME standard?
A: Usually our LPG products adopts GB-150/China standard, there ASME standard for optional. Yes, we can do ASME standard and our ASME standard as per DIV 01 SEC VIII.

Q3: Have you supplied LPG products to any renowned companies?
A: Our group company is a regular strategic partner of some big gas companies. We have supplied many storage tanks and semi trailer for them with different sizes. The biggest size tank we ever provided is 200m3 high pressure LPG storage tank

Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!

Warranty

1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.

Spare Parts

1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.
