Sinotruk Howo 2 Tons 2MT 5000L LPG Bobtail Tanker Truck For Africa
LPG bobtail(also called lpg refueler truck, lpg bobtails,lpg
dispenser truck,lpg refilling truck,lpg tanker truck,lpg dispensing
truck,propane delivery truck,propane bobtails,propane gas truck,gas
dispensing truck,propane refilling truck) is designded and used for
transporting and refueling propane/lpg gas/liquid petroleum gas
into smaller lpg skid station tank and home cylinders.
With different design,you can choose volume flow meter or lpg
dispenser for your truck. propane truck is widely used for filling
home cylinders.It can be measured by filling weight or filling
volume and it can offer receipt in english,french or spanish as
required. With above lpg bobtail,you can start lpg filling business
easily.
1) Truck Brand optional for propane truck :Sinotruk Howo,
dongfeng,faw,isuzu,foton and other brands.
2) Tank Size of propane truck :
5000liters,5000L,10,000liters,10000L,10cbm,12000liters
12000L,12cbm,15000 Liters,15000L,15cbm,20cbm,20,000liters,20,000L
lpg bobtails
3) Function of propane truck: mobile Propane or Butan Gas Delivery/
Refilling/bottling/filling truck
4) Refiling System of propane truck : 2" Flowmeter or intelligent
filling dispenser machine,2" Corken or Chinese brand Pump,15meters
Filling Hose Reel,filling nozzle,radiator,hydraulic oil box

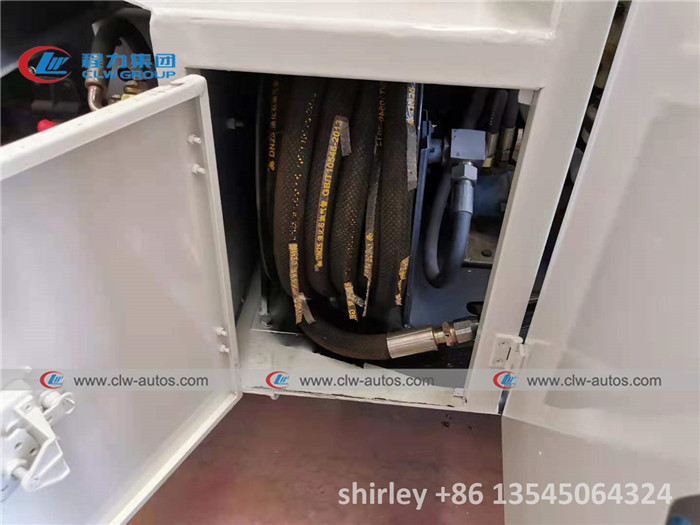

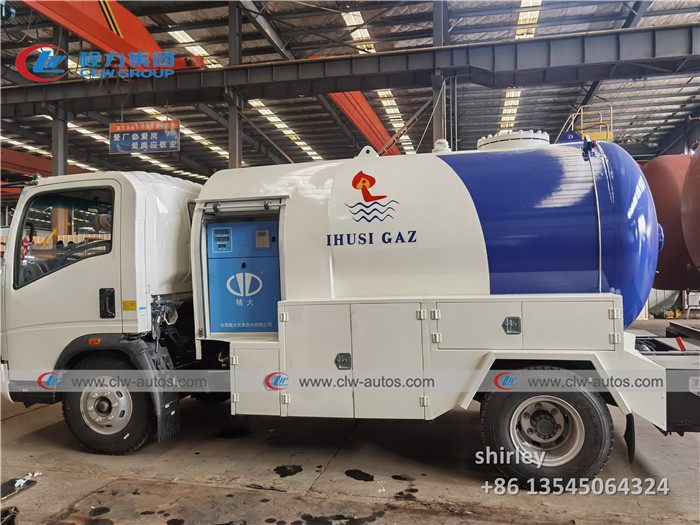

Reference pictures of 5000L lpg bobtail for DRC
Specification of 5000liters lpg bobtail truck for congo
| Parameters |
| Overall Dimension | 5900x2400x2650mm |
| Driving Model | Left hand drive |
| Gross Vehicle Weight | 8160 kg |
| Curb Weight | 5850kg |
| Payload | 2310 kg |
| Wheel Base | 3360 mm |
| Front Axle | 2400kg |
| Rear Axle | 4200kg |
| Engine | YN4102QBZL,Diesel engine |
| Engine horsepower | 116HP EUROIII |
| Displacement | 3760mL (Diesel) |
| Rated Rotation Speed | 3000 rpm |
| Gearbox | WLY6T46,6-speed forward and 1 reverse |
| Cabin | Howo L2W 2080 spacious cabin,2~3 Passenger allowed,with A/C |
| Tire | 7.50R16 (6 pcs with one spare) |
| Exhaust Pipe | At front of Cabin for safety |
| LPG tank |
| Volume: | 5000iters |
| Tank material: | Q345R |
| Tank diameter: | 1600mm |
| Tank thickness: | 10mm |
| End plate thickness: | 10mm |
| Tank length: | 3070mm or as designed |
| Gas phase | Flange type,DN50/2” or according to customer request |
| Liquid Phase | Flange type,DN50/2” and DNDN80/3” or according to customer request |
| Filling gas | Propane(LPG) |
| Design Pressure: | 1.61Mpa |
| Testing pressure | 2.21Mpa |
| Refilling Accessory |
| LPG Pump | Chinese brand YQ15-5 |
| Flow rate:15.5M3/H |
| 10 Mpa inlet pressure |
780 r/min for rotation speed |
| Radiator | 1 pc(to avoid high temperature of hydraulic oil during operation) |
| Hydraulic motor | 1 pc |
| LPG Dispenser | English remarks with printer for receipt |
| Filling hose | 15M,retractable |
| Filling nozzle | Filling nozzle for cylinder |
| Level Gauge | Chinese Float Ball type,at the rear of tank |
| Safety Valve | 1,DN80 |
| Tool and Valve Box | Located at side of LPG bobtail |
| Thermometer | 1 pc |
| Pressure Gauge | 2 pc |
| Emergency shut off Valve | 3 pcs with witch inside valve box and at rear of truck |
| Fender | Steel |
| Fire Extinguisher Holder | 2 sets |
| Anti Static line | 1 set |
Why do you choose us for lpg bobtail truck?
Located in Suizhou city,hubei province, central China, the Hubei
Chengli Special Automobile Co., Ltd is one of the largest
manufacturers authorized by National Ministry of Industry and
Information for production of 800 types of special purpose trucks
and export Center of Trucks and Spare parts identified by Hubei
Province Government, such as Water Tank Truck, Insulation Truck and
Milk Truck, Sewage Suction Truck, Garbage Truck, Man lift
Truck/Aerial Platform Truck,Truck with Crane, Fuel Truck/Trailers,
Chemical Tanker Delivery Truck, Bulk Cement Truck, Concrete Mixer
Truck, Fire Truck, Dump Truck, Van Truck/Refrigerated Truck,
Wrecker/Tow Truck,Flatbed Truck/Low Bed, Tractor, LPG
Tank/Truck/Trailer/Skid Station, Road Sweeper/Cleaning Truck,
Ambulance Trucks, LED Advertising Trucks, RV/Camper Trucks, Food
Truck/Vender Truck and all kinds of special Trailer applied in
sanitation,construction, transportation, chemical, oil and gas,
emergency rescue and so on.
With leapfrog development in 16 years since 2004, now Hubei Chengli
Special Automobile Co., Ltd has owned more than 70 professional
workshops for different vehicles and 2 technical centers, more than
12,600 staffs, in which more than 800 are R&D persons and more
than 5000 are technical workers..
CLW group, which was appointed by the Development and Reform
Committee of China is a professional company who deal in different
kinds of special vehicles, trailers and construction machinery.
- Certificate: ASME, ISO, BV, SGS, CCC etc.
- more than independents workshops.
- 1000 sets of equipment, 25 assemble lines.
- 300 senior engineers and technicians. About 8000 workers.
- 800kinds of LPG, trucks and semi-trailers.
- 20 years wholesale experience
- Turnover 250 million and Export 20million annually
- Turnover 2 billion trucks and semi-trailers annually.
- Trucks Sold to more than 90 countries
- Cooperates DONGFENG,SINOTRUCK,ISUZU,FOTON,FAW,BEIBEN,ETC
After sales service
Before purchasing:
1- Quick reply on customers' inquiry;
2- Professional suggestion on truck choice according to different
countries.
3- Details quotation with spec.and reasonable price.
4- Welcome to visit our company before purchasing.
After purchasing:
1- Production pictures and video updated every week.
2- Customer can visit factory after truck completion or arrange
third party inspection.
After-sales service:
1- English Operation Video
2- Free operation and technical train at factory but not include
accommodation
3- Spare parts supplied at factory price whenever needed.
4- Engineers can be sent to your country and offer local
engineering support and train.
FAQ
Q1: What kinds of propane truck I can order from your company?
A: We can supply propane truck from 5000Liters to 35000liters. Pls contact with us for more
technical details discussion.
Q2: What is your production standard of propane truck? Whether your propane truck exported to others countries?
A: propane truck is produced strictly according to GB150.1~4,we supplied lpg bobtail
to AA RANO,Hass Petroluem,NIPCO and so on.
Q3: What's the difference between your company and other chinese
supplier?
A: As the top manufacturer of lpg trucks and products for more than
15 years,our sales are more professional and they will offer you
suggestion. And we took part in lpg summit in Africa and Asia every
year.
