Tri Axle 25m3 40m3 Lubricating Oil Tank Semi Trailer

Ask Lasest Price
Brand Name :	CLW
Model Number :	CLW2021060706
Certification :	ISO9001, CCC, BV, SGS
Price :	Negotiated
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	500 units per month
Delivery Time :	30-35 days after receiving the deposit

Add to Cart

Product Details
Company Profile

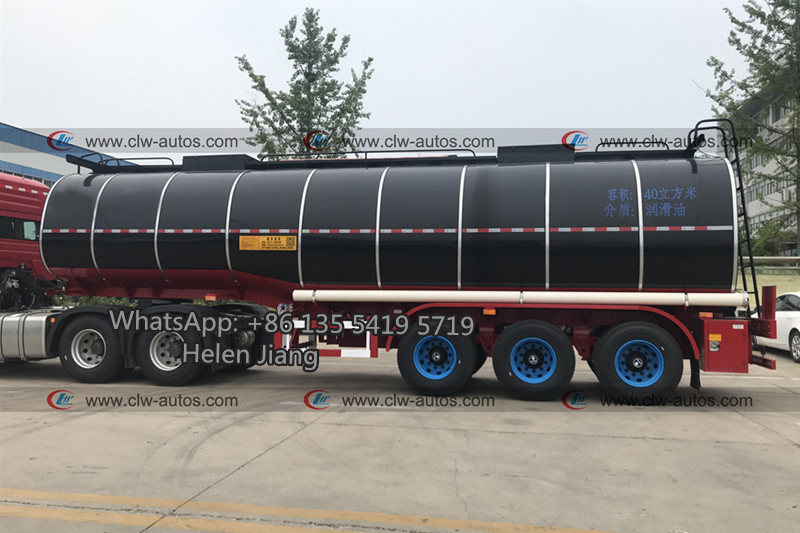

Tri Axle 25m3 40m3 Lubricating Oil Tank Semi Trailer

3 Axles 25m3 40m3 Insulated Heated Asphalt Lubricating oil Tank Semi Trailer

Description:

1. The tank body is made of 4mm or 6mm high-quality carbon steel according to national standards. The shape of the tank body is divided into oval or square round tanks, which can contain 1-4 kinds of oil products. Can also produce heating and heat preservation series tanks.

2, alcohol, chemical tanker made of high quality stainless steel at home and abroad, the thickness of 4 mm to 5 mm ..

3, all kinds of hydrochloric acid, sulfuric acid, lye tanker made of plastic, thickness of 12 mm to 22 mm ..

4. A plurality of anti-wave baffles are arranged in the tank body. High pressure gas leak test is adopted to ensure that the tank body has high strength, stable center of gravity and safe and stable vehicle transportation.

product Specification

3 Axles Insulated Heated Asphalt Bitumen Transportation Tank Semi Trailer
Tank Body
Shape	Optional(Round or Square)
Dimension	12000mm×2490mm×3990mm(adjustable as your requirements)
Tare weight	About 8-12.8T
Total Volume	25m³-60m³
Tanker Body Material	5mm or 6mm Q235 carbon steel
End Plate	5mm or 6mm Q235 carbon steel
Manhole Cover	Cabon steel or Aluminum alloy API manhole cover. Diameter: 500mm
Bottom Valve	Aluminum API Pneumatic Bottom Valve
Discharging Valve	Diameter is 3 or 4 inches
Compartments	1-7 Optional
Discharging Pipe	4” rubber hose, 2 pcs, 6m/each
Cat Walk	With(Common model or special design)
Chassis
Main Beam	Welding design or Special design, connected by bolts and nuts. Material: Q345 carbon steel
Axle	2 or 3 axles, BPW/FUWA/HUAJING brand
Landing Gear	JOST(D200T)or China brand 28T(two speed)
King Pin	JOST 2.00 or 3.5 inch bolt-in king pin
Suspension	Mechanical suspension(Germany or America type) or Air suspension
Leaf Spring	90(W)mm×13(Thickness)mm×10(Layer) or 100mm×12mm×12
Pneumatic Braking System	WABCO RE 6 relay valve; Spring brake chamber(TKL brand); 2 pieces of 45L air tanks
Rim	9.00-22.5/8.00-20/8.5-20
Tire	12R22.5, 315/80R22.5, 11.00R20, 12.00R20
ABS	Optional

Warranty

1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.

FAQ

Q: Can I buy a sample of your product for testing?

A. Yes, that's fine. Our MOQ is 1set.

Q: What's about the payment?

A: 40% deposit by T/T before order,balanced by T/T before delivery.

Q: How about quality of your factory product ?

A: Our product quality is ahead of other manufacturers in the industry. We have advanced production equipment ,skilled workers and perfect mangement quality. So the quality is under control. Our products are certificated by ISO 9001:2008,CCC and BV, and many trucks passed SGS inspection .

Q: How do you gurantee the quality of the product?

A: Don't worry, my dear client. Any one of you is very important to us. So we will do inspect all of the goods before shipment. And we had joined the trade credit insurance system. If the product received has quality problems, Alibaba will return the advance payment back to you.

Q: Why do you choose us?

A: We are self-produced and self-selling manufacturer and we have more than 15 years of production experience, our products have been sold all over the world.

Q: What about your after-sale service?
A: We offer 1 year after-sale service. We can supply the spare parts at factory price all the time.

Q: Can we visit your factory before purchasing?
A: We welcome you to visit our factory any time and we will show you our production line .
