    Tri Axle 40000L Oil Transport Q235 Tank Semi Trailer With 4 Compartments

    Ask Lasest Price
    Brand Name : CLW
    Model Number : CLW2021060708
    Certification : ISO9001, CCC, BV, SGS
    Price : Negotiated
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 500 units per month
    Delivery Time : 30-35 days after receiving the deposit
    • Product Details
    • Company Profile

    Tri Axle 40000L Oil Transport Q235 Tank Semi Trailer With 4 Compartments

    3 Axle Tri-Axle 40000L 40M3 Oil Transport Tank Semi Trailer With 4 Compartments


    Description:
    ** Tank material could be carbon steel, stainless steel, alluminum...
    ** It can be divided into many compartments to load different types of fuels.
    ** BPW axles, JOST kingpin, JOST landing gears, Air suspension, ABS.
    ** Heat preservation of rock cotton or polyurethane foaming, Heating system.
    ** Bottom loading system can be equipped: API connections, over-fill detection system , vapor recovery vent, vapor recovery adaptors & dust cap, pneumatic control, bottom emergent valve...
    ** Tube or tubeless tyres, off-road single tyre for bad roads.


    1. Purpose: It used for transporting all kinds of chemical liquid such as diesel and gasoline etc.
    2. Main parts: Axle, Bottom valve, pipeline and liquid line.
    3. Tank material for optional: Carbon steel, Stainless steel 304, Stainless steel 316, Stainless steel 316L and Aluminium alloyetc.
    4. Available tank volume: 38CBM - 60CBM/2 Axles/3 Axles/4 Axles
    5. Axle brand: China famous brand FUWA/China brand L1/Germany brand BPW.


    product Specification


    Main Dimensions
    Overall Length11240mm
    Overall Height2800mm
    Tare Weight11500KGS
    Loading Capacity42m3

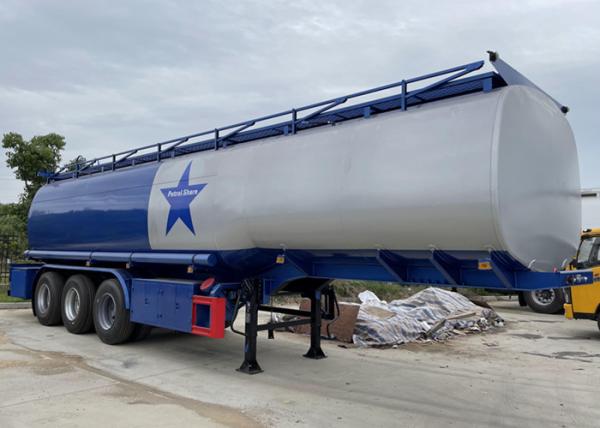

    Photo only for reference, final product can be made according to exact requirements
    Tank Body
    ShapeMono block Cylinder
    Total Volume(m3)40CBM
    Tanker Body Material6mm steel / Q235 high tensile strength steel
    End plate6mm steel sheet/Q235 high tensile strength steel
    Manhole coverAluminum alloy API manhole cover, ∮500mm ,2 sets with 2 breather valve
    Bottom Valve1-2 sets of Aluminum API Pneumatic Bottom Valve
    Discharging valve2-4 set ∮100mm discharging valves
    Discharging Pipe4”rubber hose, 2 pcs, 6m long
    Chassis
    Main BeamsSpecial design I beam, connected by bolts and nuts with tanker body, removable from tanker body for separate transportation;
    Axle4 axles, Front Axle liftable
    BPW or FUWA 13 Ton
    Landing GearJOST brand Two-speed, manual operating, heavy duty landing gear
    King PinJOST brand 2” bolt-in king pin
    SuspensionGerman design heavy duty mechanical suspension, Front with air bag
    Pneumatic Braking SystemWABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks.
    Wheel rim8.25R22.5 wheel rim, 13 pieces
    Tire11R22.5 tubeless tire with one spare tire, 13 pieces
    PaintingComplete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
    AccessoriesOne standard tool box

    Warranty


    1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
    2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
    3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.


    Our service

    Before purchasing:

    1. Quick reply on customers' inquiry;
    2. Professional suggestion on truck choice according to different countries.
    3. Details quotation with spec.and reasonable price.
    4. Welcome to visit our company before purchasing.

    After purchasing:

    1. Production pictures and video updated every week.
    2. Customer can visit factory after truck completion or arrange third party inspection.

    After-sales service:
    1- English Operation Video
    2- Free operation and technical train at factory but not include accommodation
    3- Spare parts supplied at factory price whenever needed.
    4- Engineers can be sent to your country and offer local engineering support and train.
