Description:
A Fecal Suction Truck is a tank truck with a heavy duty vacuum designed to pneumatically load fecal,
solids, liquids, sludge, crude oil or slurry through suction lines
in diameter with 3" being the norm. We provide various sizes of
fecal suction trucks with capacities ranging from 3cbm to 18cbm.
Product Specification
The Parameters of 2M3 Dongfeng Mini Fecal Suction Truck | |
Overview | |
Name | Dongfeng Mini Fecal Suction Truck |
Dimension(LxWxH) | 4201X1475X1870(mm) |
Total Mass | 3865 Kg |
Rated Payload | 3000 Kg |
Kerb Weight | 865 Kg |
Passenger | 2 |
Approach/Departure Angle | 33/24 |
The Parameters of Chassis | |
Manufacture/Model | Dongfeng |
Driving Type | 4*2 right hand drive |
Wheel base | 2456 mm |
Gearbox | Six speed lever with five speed forward and one reverse, manual |
Front/Rear Track | 1260/1260(mm) |
Tyre | 6.00-13 |
The Number of Tyre | 4+1(spare tyre) |
Front/Rear Suspension | 795/850(mm) |
Leaf Spring Number | 3/5 |
The Paremeters of Engine | |
Manufacturer/Model | Laidong/4801QB |
Rated Power | 68hp |
Fuel Type | Diesel oil |
Displacement/Capacity | 1809ml |
Emission Standard | Euro 6 |
Cylinder | Straight/4/intercooling |
Max. torque | 170N.m |
Velocity | 3200rpm |
The Parameters of Equipment | |
Tank Capacity | 2-3 M3 / 2000-3000Liters |
Vacuum Pump Rotation Speed | 800r/m-1400r/m |
Max. Suction Lift | >6m |
Vacuum | >500mmHg |
Rotation Direction | Clockwise |
Length of Pipe | 5m |
Time for full sucktion | <5min |
Basic Equipment | Vacuum pump, ball valve, 5 meter pipe, pressure meter, window for showing liquid level, cleaning system, hoist base, water and oil separator, anti-leaking valve, etc. |
Optional Equipment | Sprinkler, alarm for full suction, double pump, crane, scissor lift, etc. |

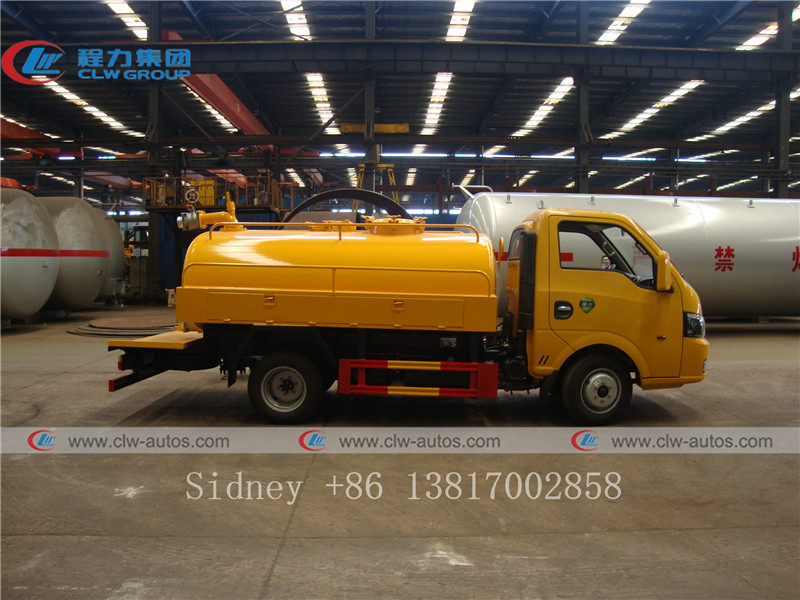

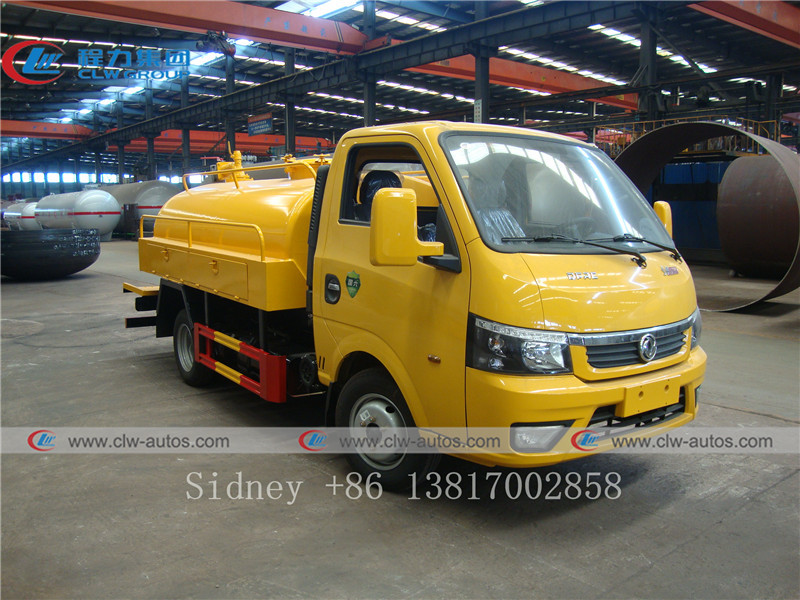

Reference Photos
Main Structure
Working Scene
Delivery and Shipment
Sales Service
① Pre-sales Service: Communicate with customers, analyze their
needs.
② Sales Service: Provide professional technical solutions,
recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the
EXW, FOB, CFR or CIF price accordingly.
FAQ
Q1: What size Fecal Suction tank we can get from your company?
A: we can supply 2CBM to 18CBM sewer cleaning truck as per our
customer's request. Pls contact with us for more technical details
discussion.
Q2: Can we adopts International brand sewage pump for sewage
suction truck?
A: Sure, we already cooperated with Italy Jourp and a Germany
brand.
Q3: What about warranty?
A: Equipment warranty is 12 months from the date on which the
equipment is applied successfully into operation, or 13 months from
the date on which the equipment has been delivered, whichever comes
first.
Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our
overseas marketing office in Wuhan. From Shanghai to WUhan is only
2 hours by airplane. Warmly welcome you to visit us in near future!
![]() |
