    FUWA Axle 42cbm Fuel Tank Trailer With 3 Compartments

    Ask Lasest Price
    Brand Name : CLW
    Model Number : CLW20210612
    Certification : ISO9001, CCC, BV, SGS
    Price : Negotiated
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 500 units per month
    Delivery Time : 30-35 days after receiving the deposit
    • Product Details
    • Company Profile

    FUWA Axle 42cbm Fuel Tank Trailer With 3 Compartments

    3 Axle 42000L 42M3 42CBM Fuel Tank Trailer Oil Tanker truck Semi trailer with 3 compartments


    Description:
    ** Tank material could be carbon steel, stainless steel, alluminum...
    ** It can be divided into many compartments to load different types of fuels.
    ** BPW axles, JOST kingpin, JOST landing gears, Air suspension, ABS.
    ** Heat preservation of rock cotton or polyurethane foaming, Heating system.
    ** Bottom loading system can be equipped: API connections, over-fill detection system , vapor recovery vent, vapor recovery adaptors & dust cap, pneumatic control, bottom emergent valve...
    ** Tube or tubeless tyres, off-road single tyre for bad roads.

    product Specification


    Main Dimensions
    Overall Length11240mm
    Overall Height2800mm
    Tare Weight11500KGS
    Loading Capacity42m3

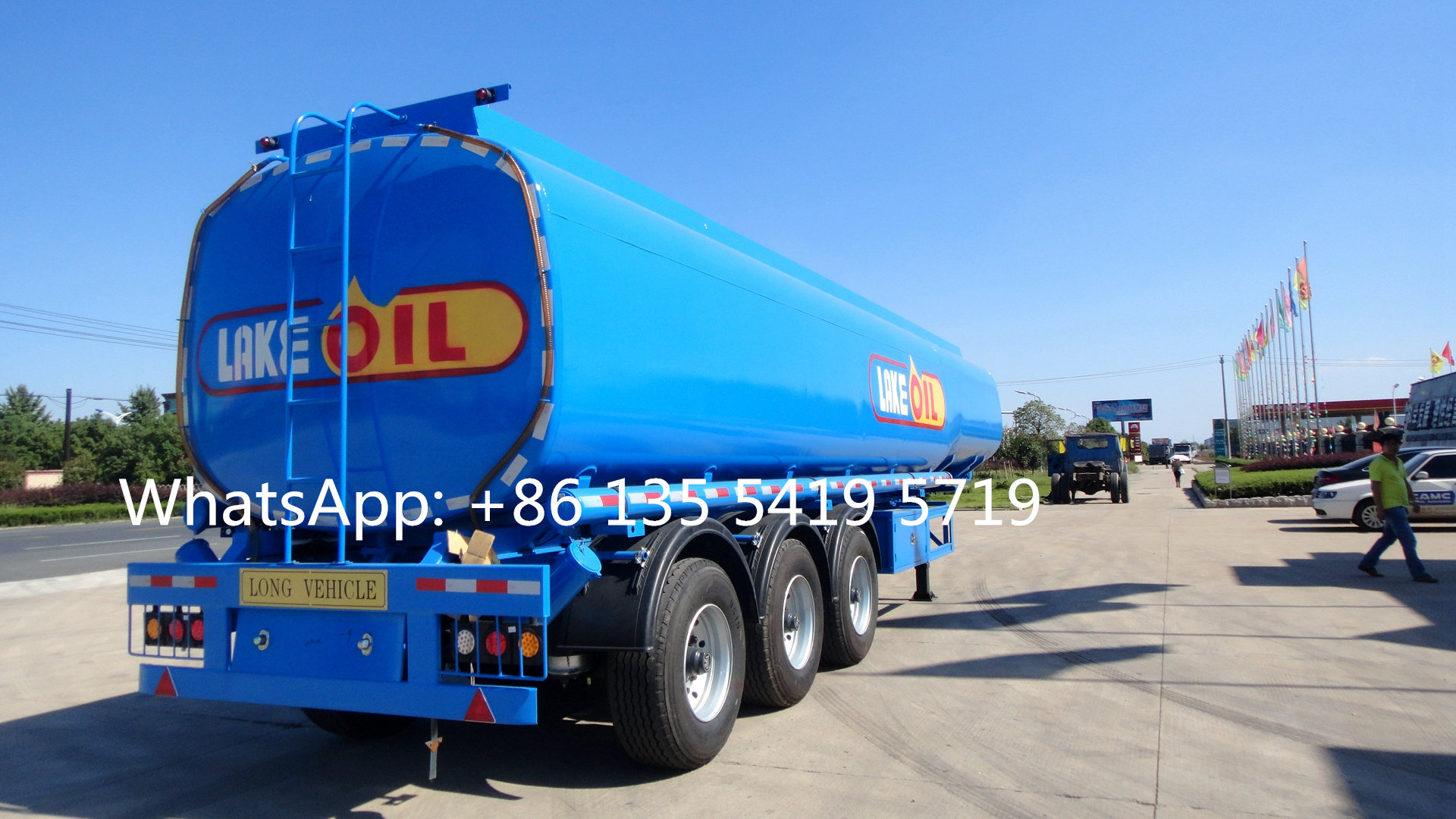

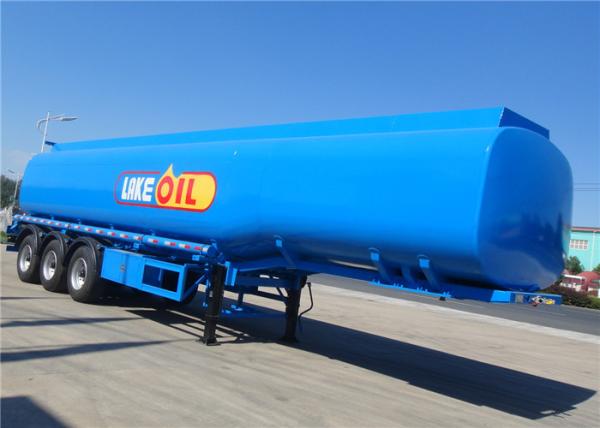

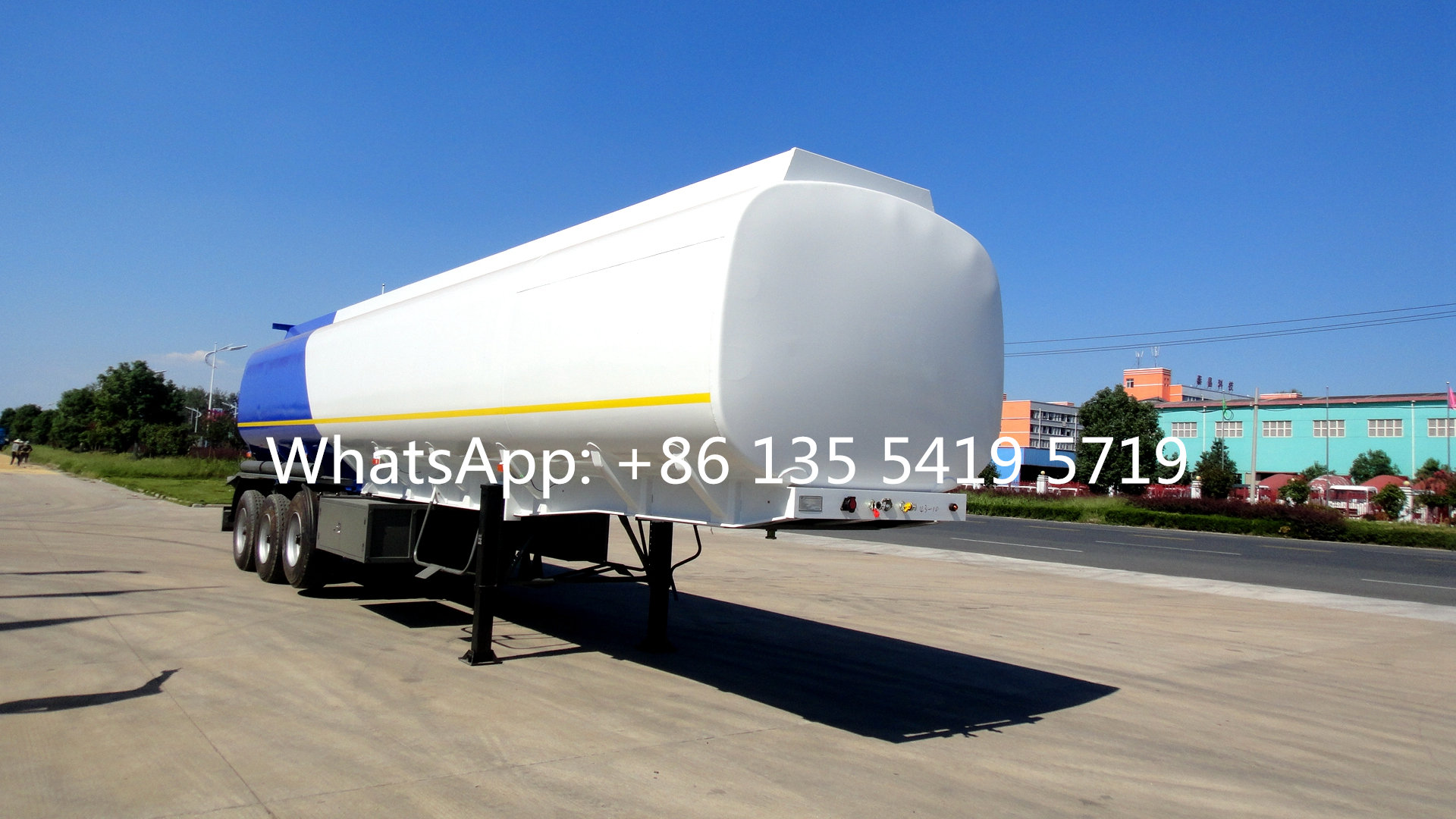

    Photo only for reference, final product can be made according to exact requirements
    Tank Body
    ShapeMono block Cylinder
    Total Volume(m3)42CBM
    Tanker Body Material6mm steel / Q235 high tensile strength steel
    End plate6mm steel sheet/Q235 high tensile strength steel
    Manhole coverAluminum alloy API manhole cover, ∮500mm ,2 sets with 2 breather valve
    Bottom Valve1-2 sets of Aluminum API Pneumatic Bottom Valve
    Discharging valve2-4 set ∮100mm discharging valves
    Discharging Pipe4”rubber hose, 2 pcs, 6m long
    Chassis
    Main BeamsSpecial design I beam, connected by bolts and nuts with tanker body, removable from tanker body for separate transportation;
    Axle3 axles
    BPW or FUWA 13 Ton
    Landing GearJOST brand Two-speed, manual operating, heavy duty landing gear
    King PinJOST brand 2” bolt-in king pin
    SuspensionGerman design heavy duty mechanical suspension
    Pneumatic Braking SystemWABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks.
    Wheel rim8.25R22.5 wheel rim, 13 pieces
    Tire11R22.5 tubeless tire with one spare tire, 13 pieces
    PaintingComplete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
    AccessoriesOne standard tool box

    3 Axle 42000L 42M3 42CBM Fuel Tank Trailer Oil Tanker truck Semi trailer with 3 compartments

    Warranty


    1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
    2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
    3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.


    FAQ


    Q: Can I buy a sample of your product for testing?

    A. Yes, that's fine. Our MOQ is 1set.


    Q: What's about the payment?

    A: 40% deposit by T/T before order,balanced by T/T before delivery.


    Q: How about quality of your factory product ?

    A: Our product quality is ahead of other manufacturers in the industry. We have advanced production equipment ,skilled workers and perfect mangement quality. So the quality is under control. Our products are certificated by ISO 9001:2008,CCC and BV, and many trucks passed SGS inspection .


    Q: How do you gurantee the quality of the product?

    A: Don't worry, my dear client. Any one of you is very important to us. So we will do inspect all of the goods before shipment. And we had joined the trade credit insurance system. If the product received has quality problems, Alibaba will return the advance payment back to you.

    Q: Why do you choose us?

    A: We are self-produced and self-selling manufacturer and we have more than 15 years of production experience, our products have been sold all over the world.

    Q: What about your after-sale service?
    A: We offer 1 year after-sale service. We can supply the spare parts at factory price all the time.


    Q: Can we visit your factory before purchasing?
    A: We welcome you to visit our factory any time and we will show you our production line .
