Dongfeng 4X2 170HP 10cbm Swing Arm Skip Loader Garbage Truck

Ask Lasest Price
Brand Name :	CLW
Model Number :	CLW20210612
Certification :	ISO9001, CCC, BV, SGS
Price :	Negotiated
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	500 units per month
Delivery Time :	30-35 days after receiving the deposit

Add to Cart

Product Details
Company Profile

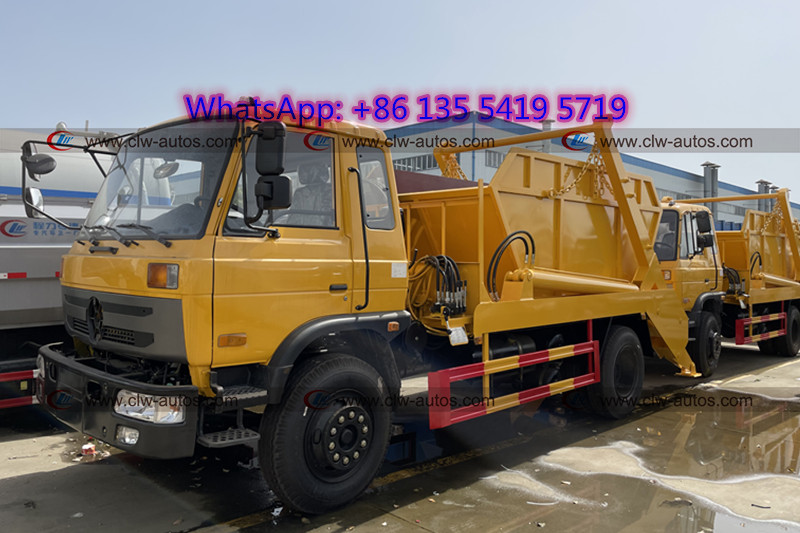

Dongfeng 4X2 170HP 10cbm Swing Arm Skip Loader Garbage Truck

Dongfeng 4x2 170hp 10cbm Swing Arm Refuse Truck Roll off Refuse Truck Skip Loader Container Garbage Box Truck

Product Description

1. Dongfeng Chassis of waste recycling truck: Engine 170HP, Fast Gearbox 6Forward & 2Reverse;

2. Garbage Bin with different size options of waste recycling truckk: 4cbm to 10cbm;
3. Hydraulic Control Loading&Unloading System;
4. Different shapes of waste recycling truck bins such as trapzoid,boat-shape,square shape and so on and divided into above-ground and under-ground type;
5. High-tensile steel chains:imported hydraulic oil cylinder and sealing material;

6. Lifting oil cylinder:double oil cylinder under garbage box,so garbage box can be lifted and self-dumped;

7. Double rear landing leg controlled by hydraulic multi-way valve to stablise truck;

8. Best Choice for Garbage collection and transporation Inside City.

product Specification

General Technical Parameters
Overall Dimension			7370X2470X3330 (mm)
Gross Vehicle Weight			12490(Kg)
Curb Weight			6295(Kg)
Chassis Specification
Chassis Brand		Dongfeng145
Drive model		4*2
Cabin		Single Row, LHD, with air condition.
Number of Passengers		3
Engine	Model	B170-33/170HP, 4-stroke direct injection , 6-cylinder in-line, turbocharged intercooled, withABS.
	Power	125KW/170HP
	Emission standard	EURO 3
	Displacement	5900(ml)
	Fuel type	Diesel
Gearbox		Fast 8JS85E, 6Forwards & 2Reverse, manual operation, with power steering.
Brake System		Oil break
Wheel Base		3950mm
Front/Rear Axle Loading		4990/7500(Kg)
Approach/Departure Angle		30/21(°)
Overhang		Mechanical Suspension, 9/11+8
Tire		9.00-20, 6pc with 1 spare tire
Max Driving Speed		90(km/h)

Upperstructure Specification
Garbage Hopper	Dimension	3700×1850×1400mm
	Standard Configuration	With one garbage bin, with hydraulic rear outrigger
	Volume	Ground type, 8CBM
	Loading Capacity	6Ton
	Thickness	5mm, Carbon Steel Q235B
Dump type	Hydraulic cylinder lifting and self-loading
Dump angle	≥45°
Hydraulic system pressure	≤16Mpa
Protective Material	Q235A Carbon Steel
Controlling Way	Three-way hydraulic control valve
Other Configuration	Reinforced hydraulic swept-body system, with Double hydraulic cylinder Swing Arm, Chain. Hydraulic multi-way valve control.
Options	Electronically controlled valve, trash bin type, trash bin quantity, etc.

Dongfeng 4x2 170hp 10cbm Swing Arm Refuse Truck Roll off Refuse Truck Skip Loader Container Garbage Box Truck

Warranty

1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.

FAQ

Q: Can I buy a sample of your product for testing?

A. Yes, that's fine. Our MOQ is 1set.

Q: What's about the payment?

A: 40% deposit by T/T before order,balanced by T/T before delivery.

Q: How about quality of your factory product ?

A: Our product quality is ahead of other manufacturers in the industry. We have advanced production equipment ,skilled workers and perfect mangement quality. So the quality is under control. Our products are certificated by ISO 9001:2008,CCC and BV, and many trucks passed SGS inspection .

Q: How do you gurantee the quality of the product?

A: Don't worry, my dear client. Any one of you is very important to us. So we will do inspect all of the goods before shipment. And we had joined the trade credit insurance system. If the product received has quality problems, Alibaba will return the advance payment back to you.

Q: Why do you choose us?

A: We are self-produced and self-selling manufacturer and we have more than 15 years of production experience, our products have been sold all over the world.

Q: What about your after-sale service?
A: We offer 1 year after-sale service. We can supply the spare parts at factory price all the time.

Q: Can we visit your factory before purchasing?
A: We welcome you to visit our factory any time and we will show you our production line .
