20cbm Sinotruck HOWO 6X4 371HP LPG Gas Tanker Truck

    Buy cheap 20cbm Sinotruck HOWO 6X4 371HP LPG Gas Tanker Truck from wholesalers

    Buy cheap 20cbm Sinotruck HOWO 6X4 371HP LPG Gas Tanker Truck from wholesalers
    • Buy cheap 20cbm Sinotruck HOWO 6X4 371HP LPG Gas Tanker Truck from wholesalers
    • Buy cheap 20cbm Sinotruck HOWO 6X4 371HP LPG Gas Tanker Truck from wholesalers
    • Buy cheap 20cbm Sinotruck HOWO 6X4 371HP LPG Gas Tanker Truck from wholesalers
    • Buy cheap 20cbm Sinotruck HOWO 6X4 371HP LPG Gas Tanker Truck from wholesalers
    • Buy cheap 20cbm Sinotruck HOWO 6X4 371HP LPG Gas Tanker Truck from wholesalers
    • Buy cheap 20cbm Sinotruck HOWO 6X4 371HP LPG Gas Tanker Truck from wholesalers
    • Buy cheap 20cbm Sinotruck HOWO 6X4 371HP LPG Gas Tanker Truck from wholesalers

    20cbm Sinotruck HOWO 6X4 371HP LPG Gas Tanker Truck

    Ask Lasest Price
    Brand Name : CLW
    Model Number : CLW20210612
    Certification : ISO9001, CCC, BV, SGS
    Price : Negotiated
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 500 units per month
    Delivery Time : 30-35 days after receiving the deposit
    • Product Details
    • Company Profile

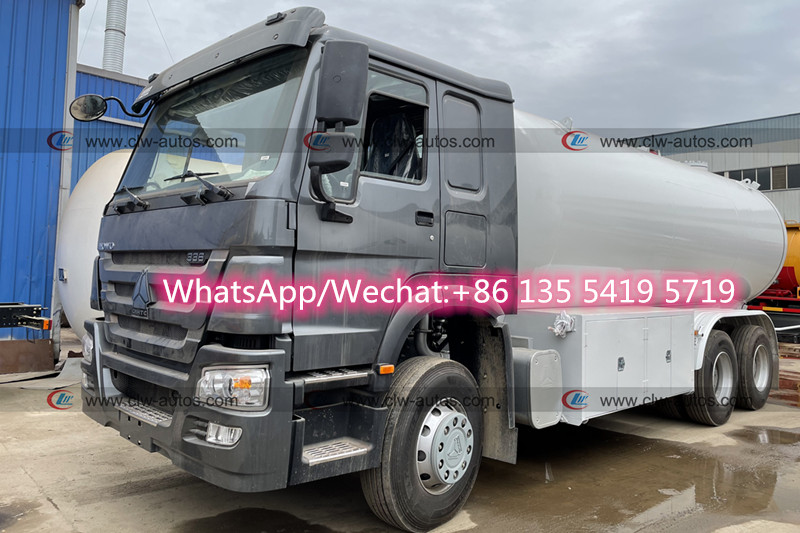

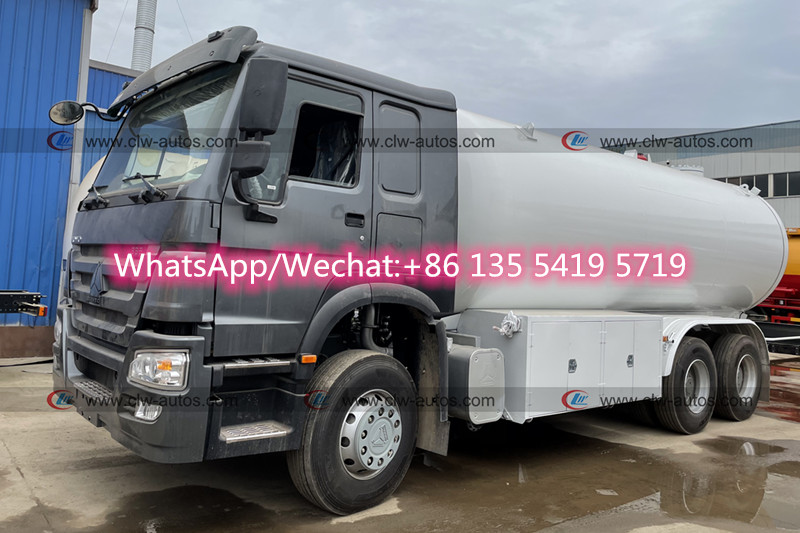

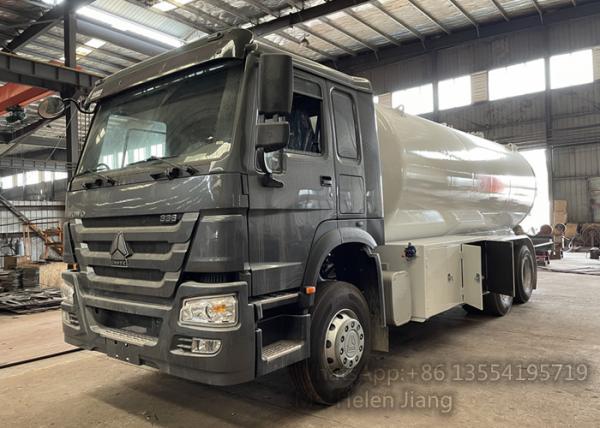

    20cbm Sinotruck HOWO 6X4 371HP LPG Gas Tanker Truck

    Sinotruck HOWO 6x4 371hp 20000L 10tons 20cbm LPG Gas Tanker Truck LPG Tank refilling Bobtail



    Product Description

    1-- Truck Brand of 10tons LPG Bobtail : Howo,optional for dongfeng,faw,isuzu,foton and other brands
    2-- Tank Size of 10tons LPG Bobtail : 20,000liters,20000L,20cbm,24000liters 24000L,24cbm,15000 Liters,15000L,15cbm,
    3-- Function of 10tons LPG Bobtail: mobile Propane or Butan Gas Delivery/ Refilling/bottling/filling
    4-- Refiling System of 10tons LPG Bobtail : 2" Flowmeter or intelligent filling dispenser machine,2" Corken or Chinese brand Pump,15meters Filling Hose Reel
    5-- Truck Spec of 10tons LPG Bobtail : wechai Engine 290HP, HW19710 Gearbox 10 Forward & 2 Revers, 12R22.5 Tires

    product Specification


    Item No.Parameters
    Overall Dimension10590x2495x3350 mm
    Driving ModelLeft hand drive
    Gross Vehicle Weight25000 kg
    Curb Weight14000kg
    Payload10000kg(10Ton)
    Wheel Base4600+1350 mm
    Front/rear Tread2022/1830 mm
    Approach/Departure Angle16/12 degree
    Front Axle7000kg
    Rear Axle18000 kg*2
    EngineWD615.69,4-stroke direct injection,6-cylinder in-line with water cooling,turbo-charging and inner cooling
    Engine horsepower336HP EUROIII
    Displacement9760mL (Diesel)
    Max Driving Speed95 km/h
    GearboxHW19710
    CabinStandard HW76 cabin,2~3 Passenger allowed,with Air Conditioner
    Tire12R22.5 (11 pieces)
    LPG tank
    Volume:20cbm
    Tank material:Q345R
    Tank diameter:2000mm
    Tank thickness:10mm
    End plate12mm
    Tank length:6090mm
    Gas phaseDN50
    Liquid PhaseDN80
    Filling gasPropane(LPG)
    Design Pressure:1.61Mpa

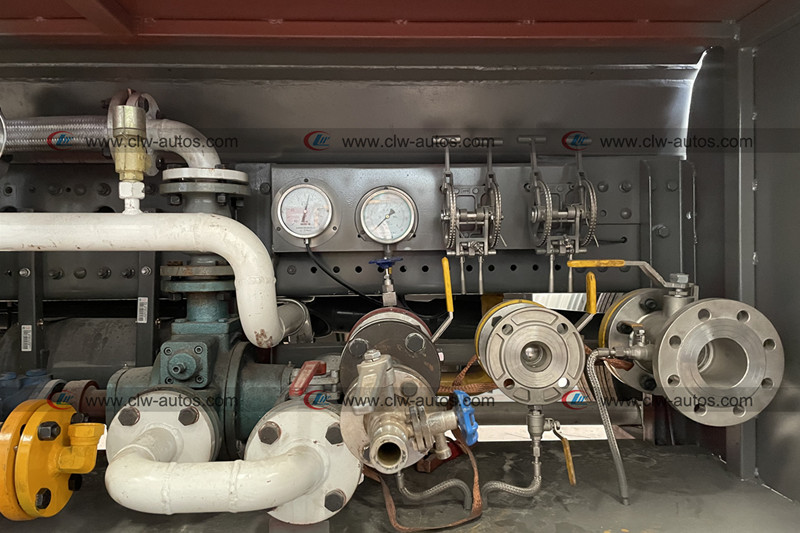

    Accessory
    Level GaugeManual rotation type,at the rear of tank
    Safety Valve1,DN80
    Tool and Valve Box1
    Thermometer1
    Pressure Gauge1
    Emergency Valve1
    FenderSteel
    Fire Extinguisher2
    Exhaust shaftAt the front of truck for safety

    Sinotruck HOWO 6x4 371hp 20000L 10tons 20cbm LPG Gas Tanker Truck LPG Tank refilling Bobtail


    Warranty


    1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
    2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
    3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.


    FAQ


    Q: Can I buy a sample of your product for testing?

    A. Yes, that's fine. Our MOQ is 1set.


    Q: What's about the payment?

    A: 40% deposit by T/T before order,balanced by T/T before delivery.


    Q: How about quality of your factory product ?

    A: Our product quality is ahead of other manufacturers in the industry. We have advanced production equipment ,skilled workers and perfect mangement quality. So the quality is under control. Our products are certificated by ISO 9001:2008,CCC and BV, and many trucks passed SGS inspection .


    Q: How do you gurantee the quality of the product?

    A: Don't worry, my dear client. Any one of you is very important to us. So we will do inspect all of the goods before shipment. And we had joined the trade credit insurance system. If the product received has quality problems, Alibaba will return the advance payment back to you.

    Q: Why do you choose us?

    A: We are self-produced and self-selling manufacturer and we have more than 15 years of production experience, our products have been sold all over the world.

    Q: What about your after-sale service?
    A: We offer 1 year after-sale service. We can supply the spare parts at factory price all the time.


    Q: Can we visit your factory before purchasing?
    A: We welcome you to visit our factory any time and we will show you our production line .
