    Front Axle Liftable 50t 60t Tipper Trailer With Air Bag Suspension

    Ask Lasest Price
    Brand Name : CLW
    Model Number : CLW20210611
    Certification : ISO9001, CCC, BV, SGS
    Price : Negotiated
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 500 units per month
    Delivery Time : 30-35 days after receiving the deposit
    • Product Details
    • Company Profile

    Front Axle Liftable 50t 60t Tipper Trailer With Air Bag Suspension

    4 Axle 50tons 60tons Tipper Trailer Front Axle Liftable 50t 60t Tipper Dumper Dump Semi Trailer with Air Bag Suspension


    Product Description
    1. Purpose: It used for transporting stone, soil, sand, steel material and different kinds of cargo.
    2. Main parts: Suspension, Tire and axles.
    3. Axle: Most of our customer all choose BPW or FUWA brand axle.
    4. Tire: Double tire or Single tire for optional.
    5. Landing leg: JOST or FUWA brand.
    6. Customized service: All products can be produced as per customer's request if there any specifized requirements.


    product Specification


    DIMENSIONS
    Tare Weight12500kgs
    Payload60000KGS
    Overall Length10800mm
    Overall Width2465mm
    Dump body size9300mmx2300mmx1500mm, 32 cubic meters.

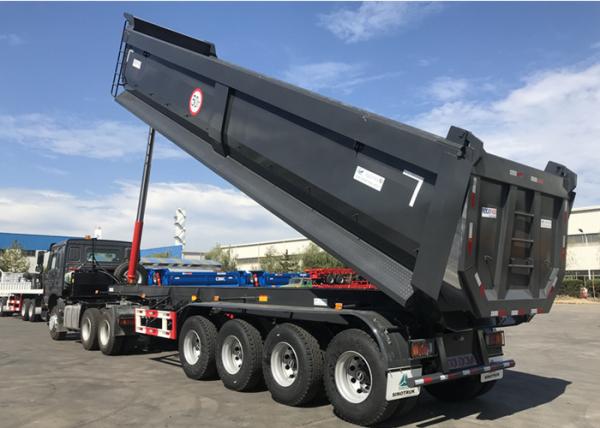

    Photo for reference, final produce can be made according to exact requirements
    DUMPER BODY
    Volume32 cbm
    Side and Front Wall5mm thickness, Made by T700L high tensile strength steel
    Floor6mm thickness, Made by T700L High tensile strength steel
    SPECIFICATION
    ChassisHeavy duty and extra durability designed I beam; Opting for high tensile steel Q345, welded by automatic Submerged-Arc processes. Top Flange 14mm,width 140mm; Double Middle Flange 6mm and 8mm ; Bottom Flange 16mm,width 140mm.
    Axle4 axles, The first axle is liftable.
    FUWA Brand 13 ton
    Hydraulic SystemOne set of HYVA Brand cylinder, 191
    SuspensionThe first suspension is air bag, others are German design mechanical suspension,
    Leaf Spring13-piece leaf spring. 11x100
    King PinJOST brand 2” Bolt-in King Pin
    Landing GearJOST brand Two-speed, manual operating, heavy duty landing gear
    Wheel Rim9.00-22.5 wheel rim, 17 pieces including one spare tire.
    Tyre315/80R22.5 tubeless tire with one spare tire, 17 pieces including one spare tire
    Spare TireOne set of spare tire including a carrier
    Braking SystemWABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks
    PaintingComplete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
    AccessoriesOne standard tool box
    Other equipmentWith ABS, Tarpaulin, Electrical control by ASPOCK type.

    4 axle 32M3 35M3 50T 60T dump dumper tipper semi-trailer with front axle liftable air bag

    Warranty


    1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
    2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
    3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.


    FAQ


    Q: Can I buy a sample of your product for testing?

    A. Yes, that's fine. Our MOQ is 1set.


    Q: What's about the payment?

    A: 40% deposit by T/T before order,balanced by T/T before delivery.


    Q: How about quality of your factory product ?

    A: Our product quality is ahead of other manufacturers in the industry. We have advanced production equipment ,skilled workers and perfect mangement quality. So the quality is under control. Our products are certificated by ISO 9001:2008,CCC and BV, and many trucks passed SGS inspection .


    Q: How do you gurantee the quality of the product?

    A: Don't worry, my dear client. Any one of you is very important to us. So we will do inspect all of the goods before shipment. And we had joined the trade credit insurance system. If the product received has quality problems, Alibaba will return the advance payment back to you.

    Q: Why do you choose us?

    A: We are self-produced and self-selling manufacturer and we have more than 15 years of production experience, our products have been sold all over the world.

    Q: What about your after-sale service?
    A: We offer 1 year after-sale service. We can supply the spare parts at factory price all the time.


    Q: Can we visit your factory before purchasing?
    A: We welcome you to visit our factory any time and we will show you our production line .
