    Japan ISUZU 4X2 600p 3T 4T 5T Tipper Dumper Truck

    Ask Lasest Price
    Brand Name : CLW
    Model Number : CLW20210615-4
    Certification : ISO9001, CCC, BV, SGS
    Price : Negotiated
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 500 units per month
    Delivery Time : 30-35 days after receiving the deposit
    • Product Details
    • Company Profile

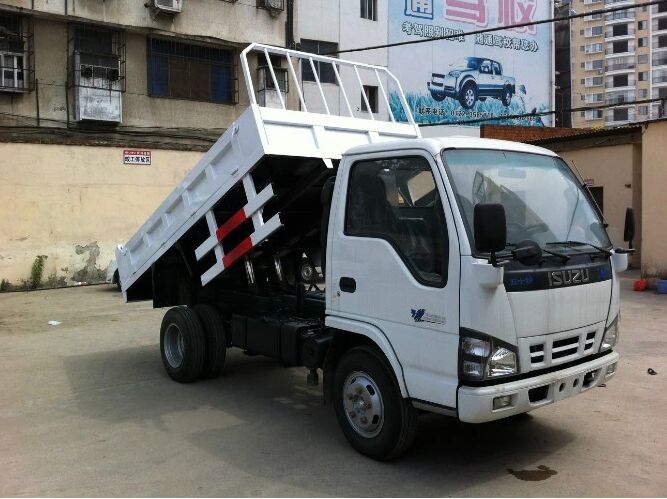

    Japan ISUZU 4X2 600p 3T 4T 5T Tipper Dumper Truck

    Japan ISUZU small 4x2 600p 3TONS 4TONS 5TONS 3T 4T 5T Tipper Dumper Dump Truck for sale


    Product Description


    A dump truck is a vehicle that unloads cargo by hydraulic or mechanical lifting. Also known as the dump truck. It consists of a car chassis, a hydraulic lifting mechanism, a cargo compartment and a power take-off device.
    The compartment of the dump truck is tilted backwards and laterally tilted. The piston rod movement is controlled by the operating system, and the backward tilting is more common. The piston rod is pushed to tilt the carriage, and a few are tilted in two directions.

    Shape classification
    Single-bridge dump truck, double-bridge dump truck, flat-head dump truck, pointed dump truck, front four rear eight dump trucks, double-bridge semi-trailer dump trucks, three-bridge semi-trailer dump trucks.
    Variety classification



    product Specification


    Model NameIsuzu 600p dump truck
    Driving Type4×2,left hand drive
    Weights
    Rated payload weight(kg)8000-10000
    Curb weight(kg)432052005400
    Dimensions
    Wheelbase(mm)381541754475
    Overall Dimension(mm)6500*2396*32207100*2380*33707500*2245*3370
    Box dimension (mm)4300*2100*5504800*2100*21006100*2100*550
    Max speed(km/h)110110110
    Engine
    Engine model4HK1-TCG40 (190HP)
    Engine type4 stroke water-cooled, lectric control system
    No. of cylindersstraight-4 cylinders
    Displacement(L)5.193L
    Max. output (kw)140kw
    Drive Line
    TransmissionMSB 6 speed,6 forwards,1 reverse gear,manual operation
    Cab
    cabinIsuzu 700p
    Standard configurationAir conditioner ,USB ,sound,electric windows,and so on
    Axle
    Front axle4 tons
    Rear axle7 tons
    Tire specification
    Tire specification8.25-16,8.25R16,8.25-20,8.25R20 standard tire,6 tires+1 spare tire
    Special function of tipper truck
    Box materialsteel
    box thicknessbottom 4mm,side3mm
    lifting systemfront lifting

    Warranty


    1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
    2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
    3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.


    ChengLi Special Automobile Corporation Limited, The CLW group, which was appointed by the Development and Reform Committee of China. ChengLi is a professional company who deal in different kinds of special vehicles, trailers and construction machinery.

    • Certificate: ASM, ISO, BV, SGS, CCC etc.
    • 12 independents workshops.
    • 1000 sets of equipment, 25 assemble lines.
    • 300 senior engineers and technicians. About 8000 workers.
    • 800kinds of LPG, trucks and semi-trailers.
    • 20 years wholesale experience
    • Turnover 250 million and Export 20million annually
    • Turnover 2 billion trucks and semi-trailers annually.
    • LPG/Truck Sold to 90 countries
    • Cooperates DONGFENG,SINOTRUCK,ISUZU,FOTON,FAW,BEIBEN,ETC
