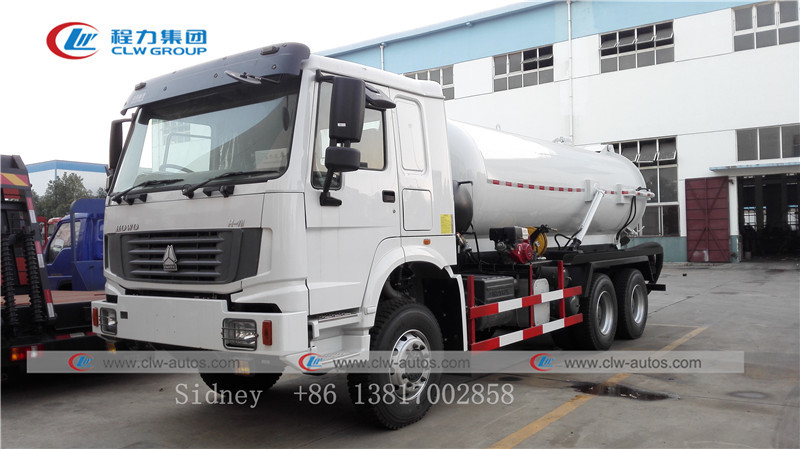

Sinotruk HOWO 6X4 336HP 12000L Vacuum Sewage Suction Truck

    Buy cheap Sinotruk HOWO 6X4 336HP 12000L Vacuum Sewage Suction Truck from wholesalers

    Buy cheap Sinotruk HOWO 6X4 336HP 12000L Vacuum Sewage Suction Truck from wholesalers
    • Buy cheap Sinotruk HOWO 6X4 336HP 12000L Vacuum Sewage Suction Truck from wholesalers
    • Buy cheap Sinotruk HOWO 6X4 336HP 12000L Vacuum Sewage Suction Truck from wholesalers
    • Buy cheap Sinotruk HOWO 6X4 336HP 12000L Vacuum Sewage Suction Truck from wholesalers
    • Buy cheap Sinotruk HOWO 6X4 336HP 12000L Vacuum Sewage Suction Truck from wholesalers
    • Buy cheap Sinotruk HOWO 6X4 336HP 12000L Vacuum Sewage Suction Truck from wholesalers
    • Buy cheap Sinotruk HOWO 6X4 336HP 12000L Vacuum Sewage Suction Truck from wholesalers
    • Buy cheap Sinotruk HOWO 6X4 336HP 12000L Vacuum Sewage Suction Truck from wholesalers
    • Buy cheap Sinotruk HOWO 6X4 336HP 12000L Vacuum Sewage Suction Truck from wholesalers
    • Buy cheap Sinotruk HOWO 6X4 336HP 12000L Vacuum Sewage Suction Truck from wholesalers
    • Buy cheap Sinotruk HOWO 6X4 336HP 12000L Vacuum Sewage Suction Truck from wholesalers
    • Buy cheap Sinotruk HOWO 6X4 336HP 12000L Vacuum Sewage Suction Truck from wholesalers

    Sinotruk HOWO 6X4 336HP 12000L Vacuum Sewage Suction Truck

    Ask Lasest Price
    Brand Name : CLW
    Model Number : CLW5840
    Certification : CCC,ISO,BV,SGS
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 500 Units/Month
    Delivery Time : 30 Working Days
    • Product Details
    • Company Profile

    Sinotruk HOWO 6X4 336HP 12000L Vacuum Sewage Suction Truck

    SINOTRUK HOWO 6x4 336hp 12000Liters sewage suction truck vacuum sewer suction tank truck
    Description:

    1. Equipped with special vacuum pump,equipped with power take off, transmission shaft, high pressure sewage tank, pipe network, sewage pipe for observing and cleanout equipment,time for full sucktion<5min

    2. The sewage suction truck special section, taking the force transmission device by rotary vane pumps, vacuum pump ,(with domestic leading technology big suction) oil and gas separation device, hydrosphere separator, vacuum pressure gauge, pressure vessel, pipe system composition, and equipped with hand-washing facilities and visual dung tube.

    3. The Sewage suction truck oblique liquid, can suck full alarm device after full automatic alarm, prevent sewage spills of vacuum pump caused damage,optional choose carbon steel, stainless steel, epoxy resin anticorrosive processing (rounded pot), may do anticorrosive processing, extracting partial chemical sewage and waste water.

    Specifications:


    Vehicle Main Dimensions(L x W x H)mm9120x2500x3600Parameter
    Wheel base (mm)4300+1350
    Wheel track (front/rear) (mm)2022/1830
    Approach/Departure angle(°)16/23
    Weight in KGSTare Weight12050
    Loading Capacity12950
    Front axles loading capacity1x7000
    Rear axles loading capacity2x16000
    Max. driving speed(km/h)90
    EngineBrandSINOTRUK
    ModelWD615.69
    Horse Power(HP)336HP
    Emission standardEuro 2
    GearboxHW15710, 10 forwards & 2 reverse
    Steering GearZF8098,power steering, hydraulic steering with power assistance
    Fuel tank (L)400
    Tire12.00 R20 all steel radial tire , 11 pieces
    Brakes

    Service brake: dual circuit compressed air brake

    Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels

    Auxiliary brake: engine exhaust valve brake

    Tank Body
    Sewage body capacity12000Liters/12CBM
    Tanker Body Material6mm steel / Q235 high tensile strength steel
    End plate6mm steel sheet/Q235 high tensile strength steel
    Discharging Pipe4"rubber hose, 2 pcs, 3m long
    Rear coverthe rear cover can be on and off
    Tanker BodyTanker body can be lifted by hydraulic system

    Reference Photos
    Sinotruk HOWO 6X4 336HP 12000L Vacuum Sewage Suction TruckSinotruk HOWO 6X4 336HP 12000L Vacuum Sewage Suction TruckSinotruk HOWO 6X4 336HP 12000L Vacuum Sewage Suction TruckSinotruk HOWO 6X4 336HP 12000L Vacuum Sewage Suction Truck


    Structure Diagram



    Working Scene





    Sales Service
    1) Pre-sales Service: Communicate with customers, analyze their needs.
    2) Sales Service: Provide professional technical solutions, recommend the right models accordingly.
    3) After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.


    FAQ


    Q1: What size Sewage Suction tank we can get from your company?

    A: we can supply 5CBM to 35CBM sewer cleaning truck as per our customer's request. Pls contact with us for more technical details discussion.


    Q2: Can we adopts International brand sewage pump for sewage suction truck?

    A: Sure, we already cooperated with Italy Jourp and a Germany brand.


    Q3: What about warranty?
    A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.


    Q4: Where is your factory? How far from Shanghai to your factory?
    A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
