    Dongfeng 145 Model 8m3 Asphalt Distributor Truck

    Dongfeng 145 Model 8000liters 8m3 Asphalt Distributor Bitumen Spreader Truck


    Description

    1. It can spread a variety of asphalt: high viscosity modified asphalt, hot asphalt, emulsified asphalt, etc.
    2. The width of the sprinkler is freely adjustable and each nozzle can be individually controlled.
    3. Excellent insulation performance, average temperature drop ≤20°C/8h.

    4. Intelligent control system for precise control of the amount of spreading. Manual and automatic two sets of operating systems, complete the sprinkling in the cab, the construction can be completed by one person only.


    Specification


    Chassis
    CabDongfeng145 model, 3 seats, one and a half row
    Driving Type4*2 Left hand driving
    Overall Dimension (mm)8200*2500*3250
    GVW (kg)15900
    Truck Tare Weight (kg)9700
    Tank Capacity (L)8000
    Wheelbase (mm)3950
    F/R track base (mm)1920/1800
    F/R overhang (mm)1450/2800
    Approach/Departure Angel (°)20/10
    Tire9.00-20
    ClutchSingle-plate dry diaphragm spring clutch
    SteeringHydraulic steering with power assistance
    Max Speed (km/h)99
    Gear Box6 forward speed, 1 reverse speed
    BridgeFront axle3000kg
    Rear axle5500kg
    EngineBrandCUMMINS
    ModelB170-33EGR
    Fuel TypeDiesel fuel
    Emission StandardEuro III
    TypeWater-cooled four-stroke,, direct injection, turbocharged
    Exhaust (ml)5900
    Max output power/rotate speed (hp /rpm)170/2500
    Max torque/rotate speed (N.m/rpm)560/1300
    Braking SystemService BrakeCompressed air brake
    Park BrakeSpring energy
    Auxiliary BrakeEngine exhaust brake
    Electric System24v
    Asphalt Spraying System
    Spray width4500mm
    Spray Value0.5-3.0(Kg)
    Hydraulic pump modelCBQ-F540
    Hydraulic motorL2F63W2P2 (Liyuan Brand)
    Insulation Thickness50mm
    Nozzles34
    BurnerG20(Riello)
    Asphalt pumpCB450
    Generator(Converter)YGBT2500

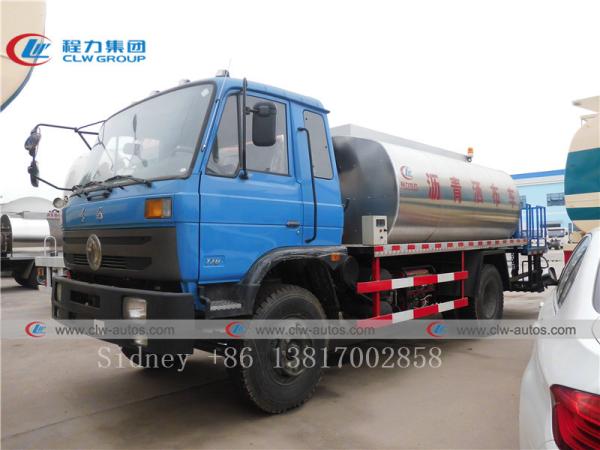

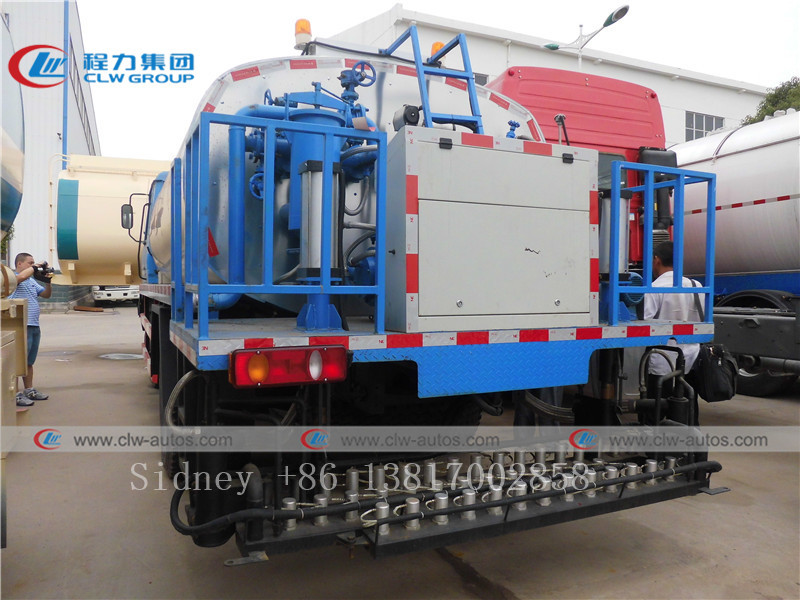

    Reference Photos

    Dongfeng 145 Model 8m3 Asphalt Distributor TruckDongfeng 145 Model 8m3 Asphalt Distributor Truck

    Dongfeng 145 Model 8m3 Asphalt Distributor TruckDongfeng 145 Model 8m3 Asphalt Distributor Truck


    Drawing



    Working Scene


    Sales Service


    ① Pre-sales Service: Communicate with customers, analyze their needs.
    ② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
    ③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.


    FAQ


    Q1: What kinds of bitumen distribution truck I can order from your company?

    A: We can supply various sizes of asphalt sprayer Truck such as 2ton,3ton,4ton,5ton,6ton to 25ton, if you need larger size, there are 2 axles and 3 axles semil trailer for optional.


    Q2: What is your production standard of bitumen distribution truck ? Whether your 10Tons Bitumen Distributor Truck or trailers export to USA, Canada and Europen countries?

    A: Our bitumen distribution truck is produced as per China GB local standard; We can export super structure to those market, we ever exported 10Tons Bitumen Distributor Truck super structure to Europen countries before.


    Q3: What about warranty?
    A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.


    Q4: Where is your factory? How far from Shanghai to your factory?
    A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!


    Warranty


    1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
    2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
    3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.


    Spare Parts


    1. Supplying quick-wearing parts at the truck delivery.
    2. Good quality parts produced by the truck manufacturing factory.
    3. Only charge cost price for customer convenience.


    After Sales Service


    Email & Phone call tracking for each truck on timely manners.


    Shipment


    Land transportation or Ship by bulk cargo ship, container, roro ship
